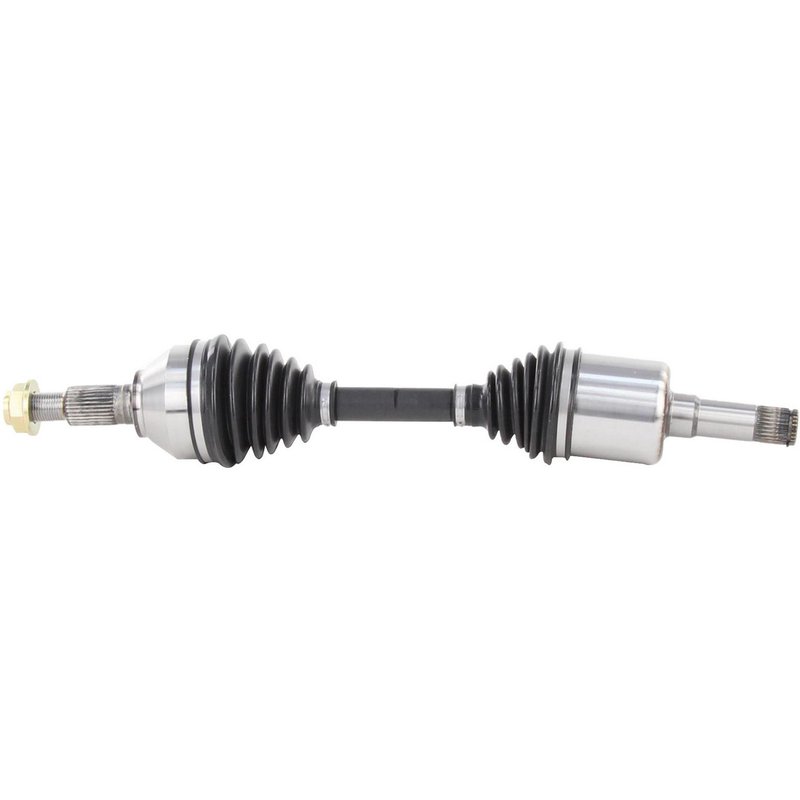

TrakMotive GM-8246 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive GM-8246 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.62 |
| Overall Compressed Length (mm) | 600 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 12 vehicles |
New shaft assembly. Built as a complete CV axle shaft for straightforward replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the matching self-locking nut.
Cross-references TrakMotive GM-8246, 179246 and 20778308 for the same application. See all 5.
CV Axle Shaft for Chevrolet Cobalt and HHR
TrakMotive GM-8246 is a new CV axle shaft for front left and front right applications on select Chevrolet Cobalt and Chevrolet HHR models. It is built with a neoprene boot, a supplied axle nut, and OE-style spline and joint configurations for direct driveline service.
Key Features
- Fits 2008-2010 Chevrolet Cobalt, front right
- Fits 2008-2010 Chevrolet Cobalt, front left
- Fits 2008-2010 Chevrolet HHR, front right
- Fits 2008-2010 Chevrolet HHR, front left
- New CV axle shaft with 23.62 in. overall compressed length
- Neoprene boot material for driveline protection
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard joint with spline connection and 30 outboard splines
- Axle nut included: M24 x 2 thread, self-locking hex nut
- No ABS tone ring included
Product Details
TrakMotive CV Axle Shaft GM-8246 is a direct replacement driveline component for front-wheel-drive service on the Chevrolet Cobalt and Chevrolet HHR. The axle is configured with a male inboard connection, conventional outboard joint, and OE-style spline counts to match the listed applications. TrakMotive identifies this axle as a new part and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration caused by axle wear
- Torn or deteriorated axle boot allowing grease loss
- Axle shaft play from damaged splines or joint wear
- Front driveline noise on Chevrolet Cobalt or Chevrolet HHR models
Installation Notes and Tips
Verify front left or front right placement before installation and confirm axle nut thread size, hex size, and compressed length against the removed part. Inspect seals, hub splines, and surrounding suspension components for wear before installing the new axle. Because this axle includes an axle nut, confirm the nut style matches the vehicle service procedure and torque specification for the application.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management for driveline components.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Chevrolet | Cobalt | Manual | Front Right | CV Axle Shaft |
| 2010 | Chevrolet | Cobalt | Manual | Front Left | CV Axle Shaft |
| 2010 | Chevrolet | HHR | Manual | Front Right | CV Axle Shaft |
| 2010 | Chevrolet | HHR | Manual | Front Left | CV Axle Shaft |
| 2009 | Chevrolet | Cobalt | Manual | Front Right | CV Axle Shaft |
| 2009 | Chevrolet | Cobalt | Manual | Front Left | CV Axle Shaft |
| 2009 | Chevrolet | HHR | Manual | Front Right | CV Axle Shaft |
| 2009 | Chevrolet | HHR | Manual | Front Left | CV Axle Shaft |
| 2008 | Chevrolet | Cobalt | Manual | Front Right | CV Axle Shaft |
| 2008 | Chevrolet | Cobalt | Manual | Front Left | CV Axle Shaft |
| 2008 | Chevrolet | HHR | Manual | Front Right | CV Axle Shaft |
| 2008 | Chevrolet | HHR | Manual | Front Left | CV Axle Shaft |
