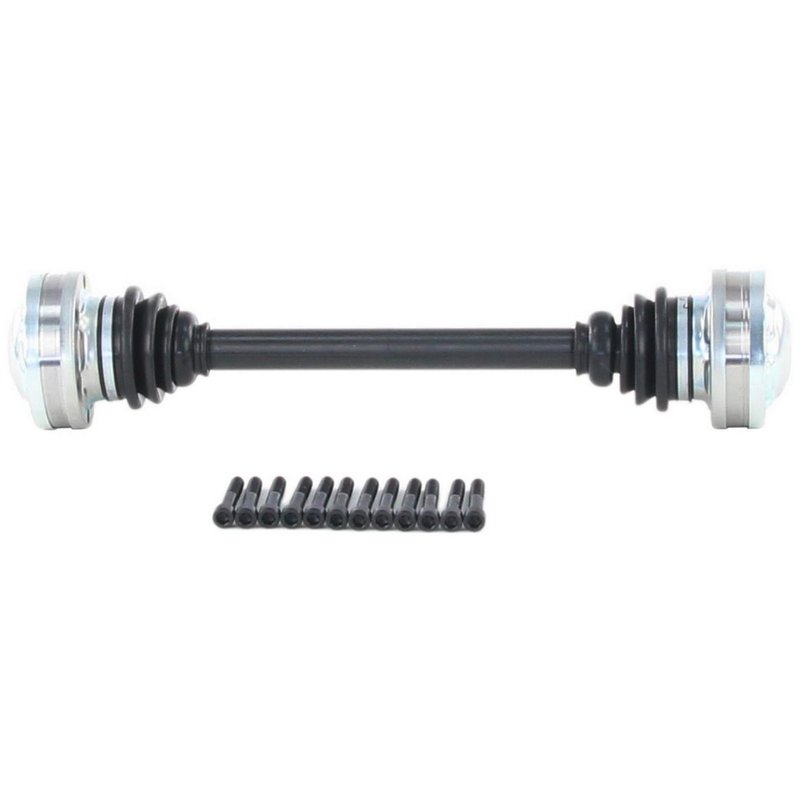

TrakMotive GM-8251 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive GM-8251 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 5/7 |
| Inboard Bolt Length (mm) | 69 |
| Inboard Bolt Thread Size | M10*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Joint Bolt Holes | 6 |
| Outboard Bolt Head Size (in) | 1/3 |
| Outboard Bolt Head Size (mm) | 8 |
| Outboard Bolt Head Type | Allen |
| Outboard Bolt Length (in) | 2 5/7 |
| Outboard Bolt Length (mm) | 69 |
| Outboard Joint Bolt Thread Size | M10*1.25 |
| Outboard Joint Type | Bolt-On |
| Outboard Shaft Connection Style | Bolt-On |
| Overall Compressed Length (in) | 20.87 |
| Overall Compressed Length (mm) | 530 |
| Product line | CV Axle Shaft |
| Fits | Pontiac · 2 vehicles |
Bolt-on design. Simplifies installation with matching inboard and outboard connections.
Neoprene boot. Helps protect the CV joint from dirt and moisture.
ISO certified. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references TrakMotive GM-8251, 179251 and 92067184 for the same application. See all 4.
CV Axle Shaft for 2004 Pontiac GTO
TrakMotive GM-8251 is a new CV axle shaft for the rear left or rear right position on the 2004 Pontiac GTO. It is built with bolt-on inboard and outboard connections and uses a neoprene boot for drivetrain service in a direct-fit replacement application.
Key Features
- Fits 2004 Pontiac GTO, rear left
- Fits 2004 Pontiac GTO, rear right
- TrakMotive CV Axle Shaft, part number GM-8251
- New axle assembly with bolt-on shaft connection style
- Inboard and outboard joints use 6-bolt, bolt-on designs
- 8 mm Allen bolt head with M10 x 1.25 thread size
- Overall compressed length: 20.87 in. (530 mm)
- Neoprene boot material for axle boot service
- No ABS tone ring included
- No axle nut included
Product Details
This TrakMotive CV axle shaft is engineered for the 2004 Pontiac GTO and matches rear left and rear right applications listed for this vehicle. GM-8251 uses bolt-on inboard and outboard joint connections with six bolt holes at each end, along with 8 mm Allen-head hardware dimensions and M10 x 1.25 thread sizing. The axle measures 20.87 inches compressed length, helping support proper drivetrain geometry in the specified rear positions. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part May Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration or shudder from a damaged axle shaft
- Torn axle boot conditions that expose the joint to contamination
- Excessive drivetrain play from a worn rear axle assembly
- Noise from a failing rear axle on a 2004 Pontiac GTO
Installation Notes and Tips
Verify rear left or rear right position before ordering GM-8251 for the 2004 Pontiac GTO. Confirm bolt-on joint style, 6-bolt flange pattern, and compressed length against the removed axle before installation. Because the axle nut is not included, reuse or source the correct hardware as required by the vehicle service procedure. ABS tone ring is not included, so confirm the vehicle’s sensor and hub configuration before installation.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Pontiac | GTO | Rear Right | CV Axle Shaft |
| 2004 | Pontiac | GTO | Rear Left | CV Axle Shaft |
