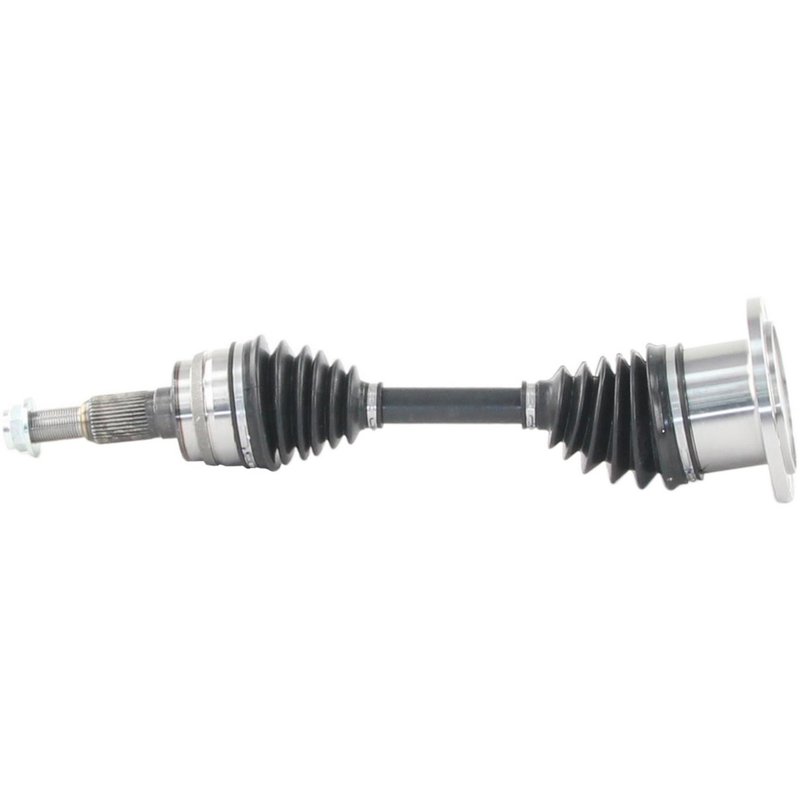

TrakMotive GM-8253 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive GM-8253 CV Axle Shaft

The TrakMotive GM-8253 CV Axle Shaft is designed for reliable driveline performance in heavy-duty Chevrolet and GMC trucks. Engineered to meet OEM specifications, this new CV axle shaft supports the demanding needs of Sierra 2500 HD, Sierra 3500 HD, Silverado 2500, Silverado 2500 HD, and Silverado 3500 HD models.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8253
• Compatible with Chevrolet and GMC heavy-duty trucks
• Neoprene boot material for durability
• Includes self-locking hex axle nut (M27*2 thread size)
• Overall compressed length: 23.03 inches (585 mm)
• Inboard joint type: Flange with flange shaft connection
• Outboard joint type: Conventional with conventional shaft connection
• 36 outboard splines for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed for durability and precise fitment. This line emphasizes OEM-style construction, including features such as neoprene boots for enhanced protection and self-locking axle nuts to maintain secure installation. The GM-8253 model exemplifies these standards, providing a dependable replacement part for Chevrolet and GMC heavy-duty trucks.

Technical Specifications and Features

The GM-8253 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a flange type connection, ensuring a solid and stable fit to the vehicle’s drivetrain. The outboard joint is conventional, paired with a conventional shaft connection style, suitable for the specified truck models. The included axle nut is a self-locking hex type with a 32.8 mm hex size and a thread size of M27*2, measuring 1.5 inches in length and 22 mm in height, designed to maintain secure fastening under heavy-duty conditions.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chevrolet Sierra 2500 HD and 3500 HD
• Restores driveline stability and smooth power transfer in GMC Silverado 2500 and 3500 HD trucks
• Addresses issues such as axle joint noise, vibration, and boot deterioration
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures proper axle nut retention with self-locking design

Installation Notes and Tips

When installing the GM-8253 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the flange connections for proper alignment and secure fitment. Use appropriate tools for the 32.8 mm hex axle nut to avoid damage. Verify the neoprene boot is seated correctly to prevent premature wear or contamination.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut to enhance safety and reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure consistent performance and durability in heavy-duty applications.
