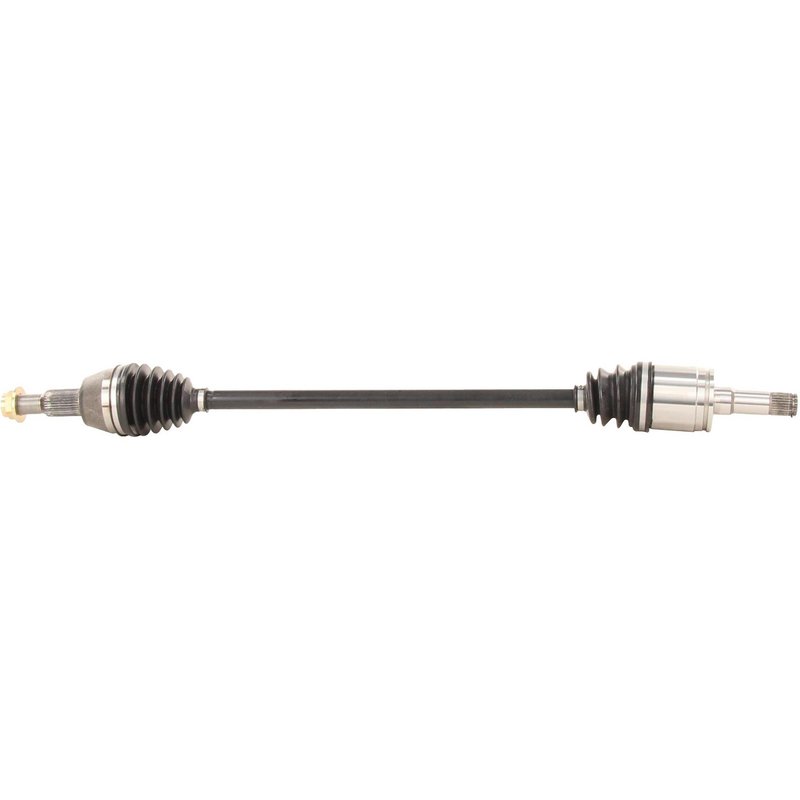

TrakMotive GM-8267 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-8267 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.87 |
| Overall Compressed Length (mm) | 962 |
| Product line | CV Axle Shaft |
| Fits | Buick, Chevrolet, GMC, and Saturn · 16 vehicles |
New CV axle shaft. Built as a direct replacement for driveline and axle service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Self-locking hex nut simplifies installation.
Cross-references Cardone New 66-1508, Cardone Reman 60-1509 and TrakMotive GM-8267 for the same application. See all 6.
TrakMotive GM-8267 Rear Left CV Axle Shaft
The TrakMotive GM-8267 is a new rear left CV axle shaft for select GM crossover and SUV applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement on the listed vehicles.
Key Features
- New CV axle shaft for rear left position
- Neoprene boot material for durable joint protection
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard joint with 33 outboard splines
- Includes axle nut with self-locking design
- Axle nut thread size: M27x2, 32.8 mm hex size
- Overall compressed length: 37.87 in. (962 mm)
- No ABS tone ring included
Product Details
TrakMotive CV Axle Shaft GM-8267 is engineered for rear left driveline service on the 2007-2011 GMC Acadia, 2008-2011 Buick Enclave, 2009-2011 Chevrolet Traverse, and 2007-2010 Saturn Outlook. This axle is a direct-fit replacement for the specified applications and is built as a new unit rather than remanufactured. TrakMotive identifies this part as a CV axle shaft in its driveline and axles line, and the design includes the axle nut needed for the listed fitments.
This part cross-references Cardone New 66-1508 and Cardone Reman 60-1509 for the same application.
Common Repair Applications
- Rear axle vibration or clicking from worn CV joints
- Torn or deteriorated axle boot causing grease loss
- Noise during acceleration or turning from driveline wear
- Replacement after axle spline or joint damage
- Restoring rear left driveline function on GM crossover models
Installation Notes
Verify rear left fitment by year, make, model, and axle configuration before installation. Confirm the axle nut thread size, hex size, and overall compressed length against the original part. Because this axle does not include an ABS tone ring, it fits non-ABS applications unless otherwise noted by the vehicle listing. Inspect seals, hub splines, and surrounding suspension components during replacement to help ensure proper axle seating and operation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products come from an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent production and quality control standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Buick | Enclave | AWD | Rear Left | CV Axle Shaft |
| 2011 | Chevrolet | Traverse | AWD | Rear Left | CV Axle Shaft |
| 2011 | GMC | Acadia | AWD | Rear Left | CV Axle Shaft |
| 2010 | Buick | Enclave | AWD | Rear Left | CV Axle Shaft |
| 2010 | Chevrolet | Traverse | AWD | Rear Left | CV Axle Shaft |
| 2010 | GMC | Acadia | AWD | Rear Left | CV Axle Shaft |
| 2010 | Saturn | Outlook | AWD | Rear Left | CV Axle Shaft |
| 2009 | Buick | Enclave | AWD | Rear Left | CV Axle Shaft |
| 2009 | Chevrolet | Traverse | AWD | Rear Left | CV Axle Shaft |
| 2009 | GMC | Acadia | AWD | Rear Left | CV Axle Shaft |
| 2009 | Saturn | Outlook | AWD | Rear Left | CV Axle Shaft |
| 2008 | Buick | Enclave | AWD | Rear Left | CV Axle Shaft |
| 2008 | GMC | Acadia | AWD | Rear Left | CV Axle Shaft |
| 2008 | Saturn | Outlook | AWD | Rear Left | CV Axle Shaft |
| 2007 | GMC | Acadia | AWD | Rear Left | CV Axle Shaft |
| 2007 | Saturn | Outlook | AWD | Rear Left | CV Axle Shaft |
