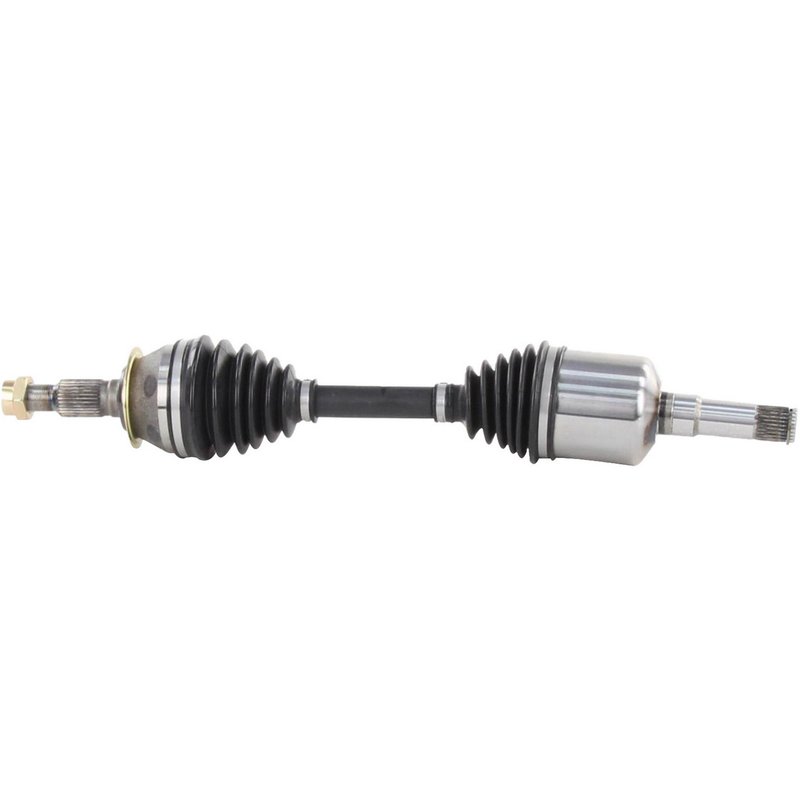

AAR CV Axle ShaftTrakMotive GM-8275 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8275 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.37 |
| Overall Compressed Length (mm) | 619 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet, Cadillac, and Buick · 73 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by supplying the matching self-locking nut.
Cross-references Cardone New 66-1513, Cardone Reman 60-1513 and TrakMotive GM-8275 for the same application. See all 12.
$100.43Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
Front Right CV Axle Shaft for GM-8275
TrakMotive GM-8275 is a new front right CV axle shaft for select Buick, Cadillac, and Chevrolet applications. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service on listed vehicles.
The AAR CV Axle Shaft line is focused on application-specific replacement axles for modern front-wheel-drive platforms. This GM-8275 axle includes the axle nut and uses a self-locking M24 x 1.5 nut with a 36 mm hex size for service-ready installation.
Key Features
- New CV axle shaft for the front right position
- Neoprene boot material for driveline protection
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard joint with 30 outboard splines
- Overall compressed length: 24.37 in. (619 mm)
- Axle nut included; hex head, self-locking, M24 x 1.5 thread
- No ABS tone ring included
- TrakMotive part number GM-8275
Vehicle Fitment
- Fits 2020 Chevrolet Impala, front right.
- Fits 2014-2019 Chevrolet Impala, front right. Updated design.
- Fits 2015-2017 Chevrolet Impala, front right. Updated design; without Police Package.
- Fits 2014-2019 Cadillac XTS, front right. Updated design; OPT M7U.
- Fits 2013-2017 Cadillac XTS, front right. Updated design; OPT M7W transmission.
- Fits 2013-2015 Cadillac XTS, front right. Updated design.
- Fits 2012-2017 Buick Regal, front right. OPT MHH; outer assembly.
- Fits 2014-2017 Buick Regal, front right. OPT M7W; outer assembly.
- Fits 2014-2017 Buick Regal, front right. OPT M7U; outer assembly.
- Fits 2012-2013 Buick Regal, front right. OPT MHK; outer assembly.
- Fits 2011-2013 Buick Regal, front right. OPT MDK; outer assembly.
- Fits 2012 Buick Regal, front right. OPT MH8; outer assembly.
- Fits 2011 Buick Regal, front right. Updated design; OPT MH7; outer assembly.
- Fits 2010-2016 Buick LaCrosse, front right. Updated design.
- Fits 2013-2016 Chevrolet Malibu, front right. Updated design.
- Fits 2016 Chevrolet Malibu, front right. Classic style; updated design.
- Fits 2016 Chevrolet Malibu, front right. Updated design; VIN 1 (4th digit).
- Fits 2016 Chevrolet Malibu Limited, front right. VIN 1 (4th digit).
- Fits 2010 Buick Allure, front right. Updated design.
Common Replacement Uses
- Restores front axle power transfer when the original shaft is worn or damaged
- Addresses clicking or popping during turns caused by CV joint wear
- Helps correct vibration from a bent or imbalanced axle shaft
- Replaces a leaking or torn boot assembly on the front right side
- Supports repair of driveline noise on Buick Regal, Chevrolet Impala, and Cadillac XTS applications
Installation Notes
Verify the vehicle’s year, make, model, position, and option code before ordering. This axle is listed for front right applications only, and some fitments require specific options such as M7U, M7W, MHH, MHK, MDK, MH8, or MH7. Confirm spline count, axle nut thread size, and overall length against the original part before installation.
ABS tone ring is not included. The axle nut is included, and the listed nut specifications are M24 x 1.5 with a 36 mm hex size.
Quality Assurance
TrakMotive manufactures this axle as a new replacement part under an ISO 9001:1007 and TS 16949:2009 certified quality system. The GM-8275 carries a limited lifetime warranty. This part cross-references Cardone New 66-1513 and Cardone Reman 60-1513 for the same application.
This part fits 73 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Chevrolet | Impala | — | — | 3.6L | V6 | Front Right | AAR CV Axle Shaft |
| 2019 | Cadillac | XTS | — | — | — | — | Front Right | Updated Design; OPT M7U; AAR CV Axle Shaft |
| 2019 | Chevrolet | Impala | — | — | 3.6L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2019 | Chevrolet | Impala | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Cadillac | XTS | — | — | — | — | Front Right | Updated Design; OPT M7U; AAR CV Axle Shaft |
| 2018 | Chevrolet | Impala | — | — | 3.6L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Chevrolet | Impala | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHH; Outer assembly; AAR CV Axle Shaft |
| 2017 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7W; Outer assembly; AAR CV Axle Shaft |
| 2017 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7U; Outer assembly; AAR CV Axle Shaft |
| 2017 | Cadillac | XTS | — | — | — | — | Front Right | Updated Design; OPT M7U; AAR CV Axle Shaft |
| 2017 | Cadillac | XTS | FWD | — | — | — | Front Right | Updated Design; Opt. M7W Trans.; AAR CV Axle Shaft |
| 2017 | Chevrolet | Impala | — | — | 3.6L | V6 | Front Right | Updated Design; w/o Police Pkg; AAR CV Axle Shaft |
| 2017 | Chevrolet | Impala | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Buick | LaCrosse | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Buick | LaCrosse | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHH; Outer assembly; AAR CV Axle Shaft |
| 2016 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7W; Outer assembly; AAR CV Axle Shaft |
| 2016 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7U; Outer assembly; AAR CV Axle Shaft |
| 2016 | Cadillac | XTS | — | — | — | — | Front Right | Updated Design; OPT M7U; AAR CV Axle Shaft |
| 2016 | Cadillac | XTS | FWD | — | — | — | Front Right | Updated Design; Opt. M7W Trans.; AAR CV Axle Shaft |
| 2016 | Chevrolet | Impala | — | — | 3.6L | V6 | Front Right | Updated Design; w/o Police Pkg; AAR CV Axle Shaft |
| 2016 | Chevrolet | Impala | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Chevrolet | Malibu | — | — | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Chevrolet | Malibu | — | — | 1.8L | L4 | Front Right | Classic Style; Updated Design; AAR CV Axle Shaft |
| 2016 | Chevrolet | Malibu | — | — | 1.5L | L4 | Front Right | Updated Design; VIN 1 (4th Digit); AAR CV Axle Shaft |
| 2016 | Chevrolet | Malibu Limited | — | — | 2.5L | L4 | Front Right | VIN 1 (4th Digit); AAR CV Axle Shaft |
| 2015 | Buick | LaCrosse | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Buick | LaCrosse | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7W; Outer assembly; AAR CV Axle Shaft |
| 2015 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7U; Outer assembly; AAR CV Axle Shaft |
| 2015 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHH; Outer assembly; AAR CV Axle Shaft |
| 2015 | Cadillac | XTS | FWD | — | — | — | Front Right | Updated Design; Opt. M7W Trans.; AAR CV Axle Shaft |
| 2015 | Cadillac | XTS | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Chevrolet | Impala | — | — | 3.6L | V6 | Front Right | Updated Design; w/o Police Pkg; AAR CV Axle Shaft |
| 2015 | Chevrolet | Impala | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Chevrolet | Malibu | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Chevrolet | Malibu | — | — | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Buick | LaCrosse | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Buick | LaCrosse | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7W; Outer assembly; AAR CV Axle Shaft |
| 2014 | Buick | Regal | — | Automatic | — | — | Front Right | OPT M7U; Outer assembly; AAR CV Axle Shaft |
| 2014 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHH; Outer assembly; AAR CV Axle Shaft |
| 2014 | Cadillac | XTS | FWD | — | — | — | Front Right | Updated Design; Opt. M7W Trans.; AAR CV Axle Shaft |
| 2014 | Cadillac | XTS | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Chevrolet | Impala | — | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Chevrolet | Malibu | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Chevrolet | Malibu | — | — | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Chevrolet | Malibu | — | — | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Buick | LaCrosse | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Buick | LaCrosse | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHH; Outer assembly; AAR CV Axle Shaft |
| 2013 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHK; Outer assembly; AAR CV Axle Shaft |
| 2013 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MDK; Outer assembly; AAR CV Axle Shaft |
| 2013 | Cadillac | XTS | FWD | — | — | — | Front Right | Updated Design; Opt. M7W Trans.; AAR CV Axle Shaft |
| 2013 | Cadillac | XTS | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Chevrolet | Malibu | — | — | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Chevrolet | Malibu | — | — | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Chevrolet | Malibu | — | — | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Buick | LaCrosse | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Buick | LaCrosse | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MDK; Outer assembly; AAR CV Axle Shaft |
| 2012 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHH; Outer assembly; AAR CV Axle Shaft |
| 2012 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MHK; Outer assembly; AAR CV Axle Shaft |
| 2012 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MH8; Outer assembly; AAR CV Axle Shaft |
| 2011 | Buick | LaCrosse | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Buick | LaCrosse | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Buick | Regal | — | Automatic | — | — | Front Right | OPT MDK; Outer assembly; AAR CV Axle Shaft |
| 2011 | Buick | Regal | — | Automatic | — | — | Front Right | Updated Design; OPT MH7; Outer assembly; AAR CV Axle Shaft |
| 2010 | Buick | Allure | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Buick | Allure | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Buick | LaCrosse | FWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Buick | LaCrosse | AWD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| No rows match your filter. | ||||||||
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone New — 66-1513Cardone Reman — 60-1513TrakMotive — GM-82757031217927513228208227961992287011140709009GM10545ERNCV10049NCV10069
