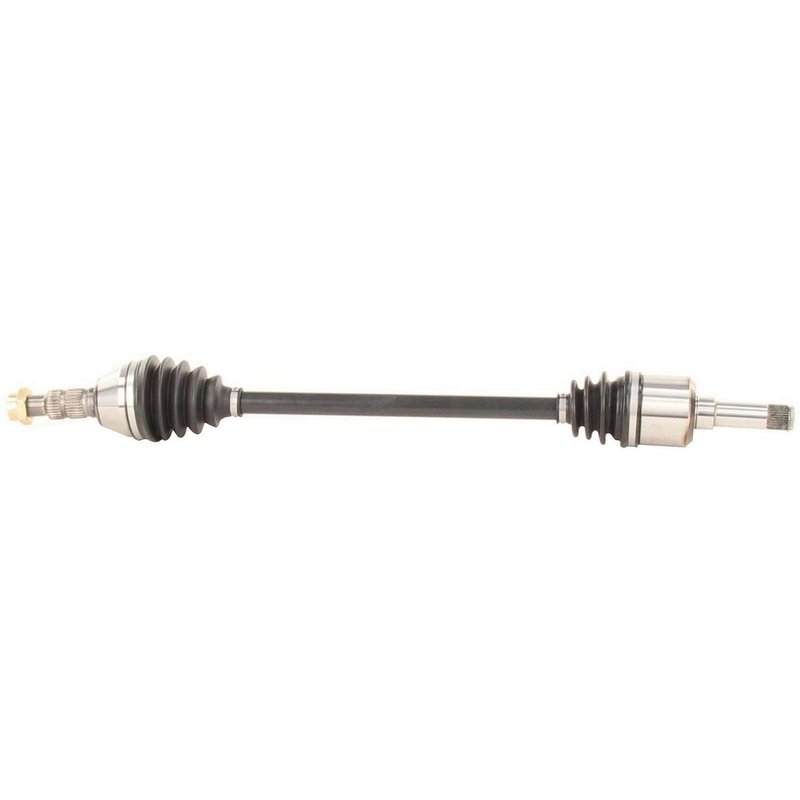

TrakMotive GM-8282 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-8282 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.2 |
| Overall Compressed Length (mm) | 818 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 2 vehicles |
New CV axle shaft. Direct replacement for a straightforward driveline repair.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by supplying the matching self-locking nut.
Cross-references TrakMotive GM-8282, 179282 and 20860104 for the same application. See all 4.
CV Axle Shaft for Cadillac SRX Rear Left
TrakMotive GM-8282 is a new CV axle shaft for the rear left position on select 2010-2011 Cadillac SRX models. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service.
Key Features
- Fits 2010-2011 Cadillac SRX, rear left
- New CV axle shaft for driveline and axle repair
- Includes axle nut with M24 x 1.5 thread size
- 36 mm axle nut hex size with self-lock design
- 34 inboard splines and 30 outboard splines
- Neoprene boot material for CV joint protection
- Overall compressed length: 32.2 in. (818 mm)
- No ABS tone ring included
Product Details
TrakMotive GM-8282 is a CV axle shaft from the TrakMotive CV Axle Shaft line, built for rear left service on the 2010-2011 Cadillac SRX. The shaft uses a male inboard connection and a conventional outboard joint, with a compressed length of 32.2 inches to match the listed application. This part cross-references 179282 and NCV10071 for the same application. The GM-8282 part number is also useful when verifying the correct axle for Cadillac SRX rear axle replacement work.
Common Repair Uses
- Replacing a worn or noisy rear left CV axle on a Cadillac SRX
- Addressing vibration during acceleration or deceleration
- Repairing clicking, binding, or driveline noise from a damaged axle assembly
- Restoring proper power transfer through the rear driveline
- Replacing a shaft with torn boot or grease loss
Installation Notes
Confirm rear left fitment before ordering and match the axle nut thread size, spline count, and compressed length to the original part. The included axle nut uses a 36 mm hex and M24 x 1.5 thread. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive lists this axle as a new part and backs it with a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Cadillac | SRX | AWD | Rear Left | CV Axle Shaft |
| 2010 | Cadillac | SRX | AWD | Rear Left | CV Axle Shaft |
