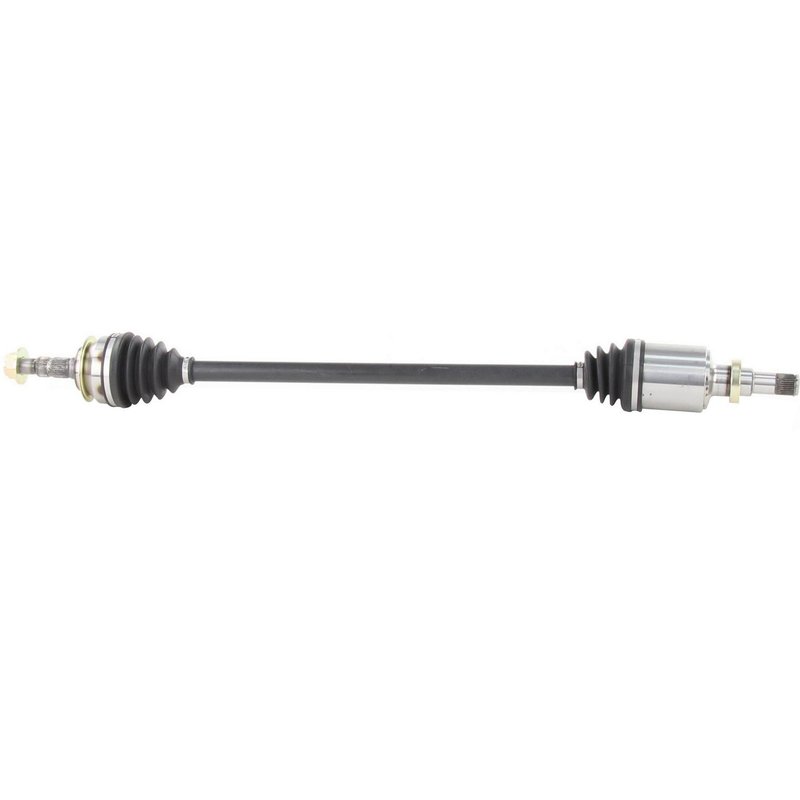

TrakMotive GM-8284 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8284 CV Axle Shaft for Chevrolet Cruze

The TrakMotive GM-8284 CV Axle Shaft is designed specifically for Chevrolet Cruze and Cruze Limited models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction to maintain vehicle stability and power transfer.

• Compatible with Chevrolet Cruze and Cruze Limited
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Male inboard joint with 34 splines and conventional outboard joint with 33 splines
• Overall compressed length of 37.52 inches (953 mm)
• Axle nut thread size M22 x 1.5 with 1 1/4 inch hex size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for direct replacement applications. This line emphasizes precise spline counts and joint types to ensure compatibility and performance in specific vehicle models, such as the Chevrolet Cruze. The GM-8284 part maintains these standards with its neoprene boot and self-locking axle nut, designed to meet factory specifications.

Technical Description and Specifications

The GM-8284 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint is a male type with 34 splines, while the outboard joint is conventional with 33 splines, ensuring proper engagement and smooth power transfer. The included axle nut is self-locking with a hex head measuring 1 1/4 inches (31.8 mm) across flats, a height of 5/6 inches (21.2 mm), and a length of 1 1/3 inches (34.4 mm). The overall compressed length of the axle shaft is 37.52 inches (953 mm), matching OEM dimensions for a precise fit.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chevrolet Cruze and Cruze Limited
• Resolves issues with axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded CV boots
• Fixes axle shaft failure due to joint wear or spline damage
• Restores driveline stability and smooth power delivery

Installation Notes and Tips

• Ensure compatibility with Chevrolet Cruze or Cruze Limited model year before installation
• Use the included self-locking axle nut with the specified M22 x 1.5 thread size
• Verify spline engagement on both inboard (34 splines) and outboard (33 splines) connections
• Inspect surrounding suspension components during installation for additional wear
• Torque axle nut to manufacturer specifications to ensure proper locking

Quality Assurance and Warranty

The TrakMotive GM-8284 CV Axle Shaft is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot to ensure long service life. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
