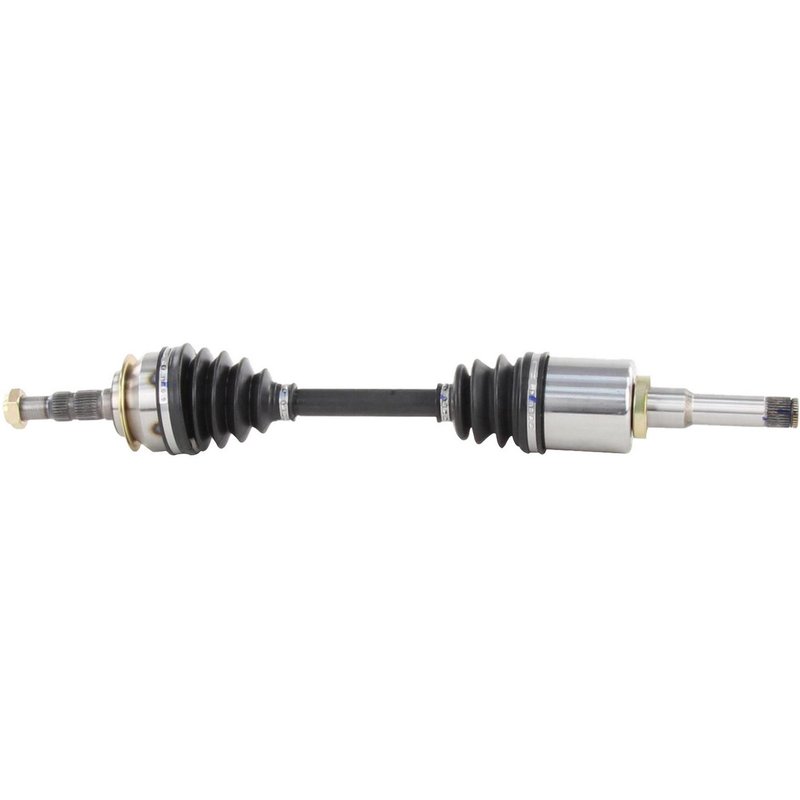

TrakMotive GM-8293 CV Axle Shaft - Front Left

CV Axle Shaft for Cruze Front Left

TrakMotive GM-8293 is a new CV axle shaft for front left applications on select Chevrolet Cruze models. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service on the listed vehicles.

Compatible with 2011-2016 Chevrolet Cruze front left applications, including 2016 Chevrolet Cruze VIN P (4th Digit, Limited), 2016 Chevrolet Cruze Limited VIN P (4th Digit), 2013-2015 Chevrolet Cruze, and 2011-2012 Chevrolet Cruze Opt MH8. This TrakMotive CV axle shaft GM-8293 is also cross-referenced to Cardone New 66-1542 for the same application.

Key Features

• New CV axle shaft for front left driveline service
• Neoprene boot material for axle joint protection
• Male inboard shaft connection style
• Conventional outboard joint type
• Includes axle nut with self-locking design
• Axle nut thread size: M22 x 1.5
• Axle nut hex size: 32 mm (1 1/4 in.)
• Overall compressed length: 644 mm (25.35 in.)
• 34 inboard splines and 33 outboard splines
• ABS tone ring not included

Product Details

TrakMotive GM-8293 is a CV axle shaft engineered for front left use on select Chevrolet Cruze and Chevrolet Cruze Limited vehicles. The shaft measures 644 mm compressed length and uses a male inboard connection with a conventional outboard joint, matching the listed OE-style configuration for the specified Cruze fitments. TrakMotive identifies this part as a new component and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.

The TrakMotive CV axle shaft GM-8293 is a direct-fit driveline replacement for Cruze owners addressing worn axle joints, torn boots, or vibration-related axle concerns on the listed applications. It is also listed as an interchange for Cardone New 66-1542 and Cardone Reman 60-1542.

Common Issues This Part Can Address

• Clicking or popping from a worn CV joint during turns
• Grease leakage from a damaged axle boot
• Vibration or shudder from a failing front axle shaft
• Noise from excessive spline or joint wear
• Driveline service needs on front left Cruze applications

Installation Notes

Verify the vehicle’s VIN, engine or option code, and front left application before installation. This part is listed for 2016 Chevrolet Cruze VIN P (4th Digit, Limited), 2016 Chevrolet Cruze Limited VIN P (4th Digit), 2013-2015 Chevrolet Cruze, and 2011-2012 Chevrolet Cruze Opt MH8. Confirm axle nut thread size M22 x 1.5 and hex size 32 mm during service, and compare spline count and overall length to the removed shaft before assembly.

Quality Assurance

TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing control.
