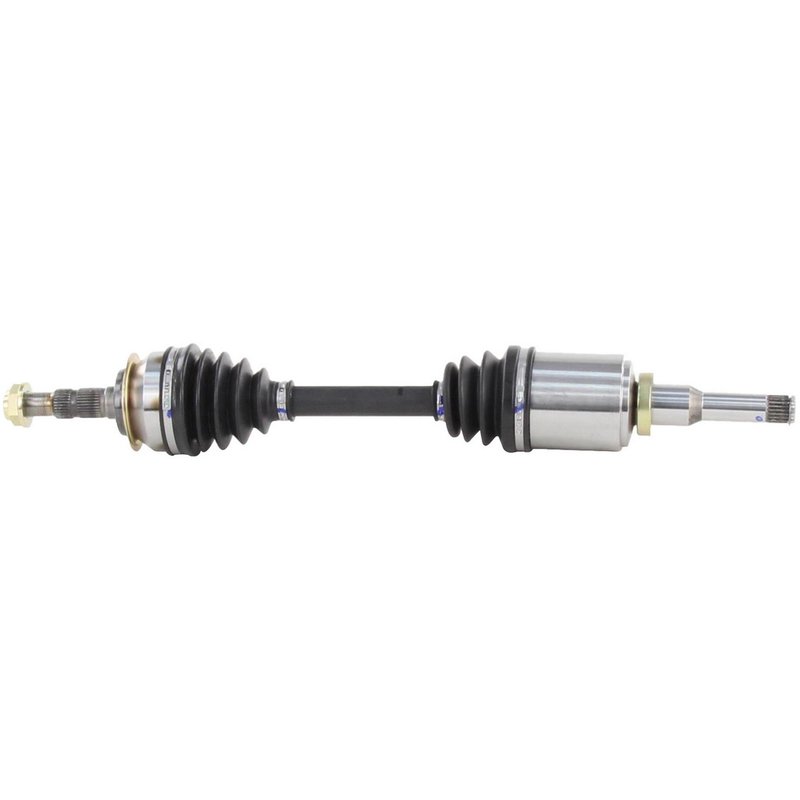

TrakMotive GM-8299 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8299

The TrakMotive CV Axle Shaft GM-8299 is designed specifically for Chevrolet Cruze and Cruze Limited models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction to maintain vehicle stability and power transfer.

• Compatible with Chevrolet Cruze and Cruze Limited
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Overall compressed length of 24.96 inches (634 mm)
• Male inboard joint with 22 splines and conventional outboard joint with 33 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The GM-8299 model features a new axle shaft with a neoprene boot and a self-locking axle nut to ensure secure installation and long-lasting performance. This product line emphasizes compatibility and quality for Chevrolet vehicles requiring reliable CV components.

Technical Specifications and Features

This CV axle shaft includes a hex head axle nut measuring 1 1/4 inches (31.8 mm) across flats, with a height of 3/4 inch (18.9 mm) and a length of 1 1/3 inches (34.4 mm). The axle nut thread size is M22 x 1.5, and it features a self-locking mechanism to prevent loosening during operation. The inboard joint is a male type with 22 splines, while the outboard joint is conventional with 33 splines, ensuring proper connection and torque transfer. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The overall compressed length of the shaft is 24.96 inches (634 mm), matching OEM specifications for a direct replacement.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Cruze and Cruze Limited
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or damage
• Prevents grease leakage and contamination with durable neoprene boot
• Restores proper driveline function and vehicle stability

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old axle shaft carefully, noting the orientation and connection points. The included self-locking hex axle nut should be torqued to manufacturer specifications using a 1 1/4 inch (31.8 mm) socket. Verify spline engagement on both inboard and outboard joints to avoid premature wear. Inspect the neoprene boot for any damage during installation and replace if necessary. Proper installation will maintain driveline integrity and vehicle safety.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8299 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes quality control inspections to ensure fitment accuracy and durability. The product includes the axle nut and is designed for long-term service in Chevrolet Cruze and Cruze Limited vehicles. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
