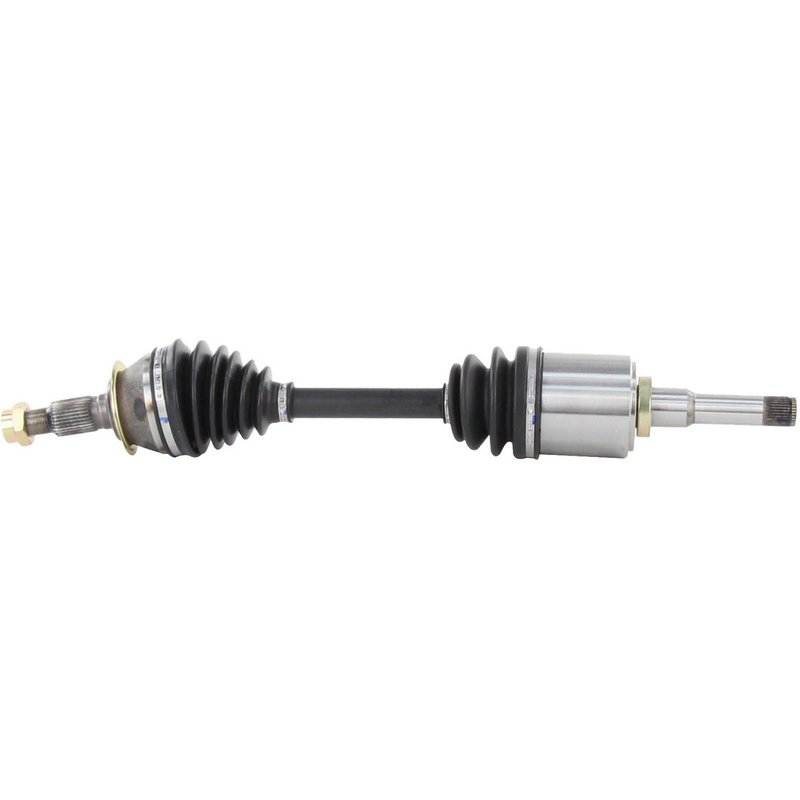

TrakMotive GM-8303 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8303 CV Axle Shaft

The TrakMotive GM-8303 CV Axle Shaft is designed for reliable driveline performance in select Buick and Chevrolet models. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles like the Buick LaCrosse and Chevrolet Malibu.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8303
• Compatible with Buick Allure, LaCrosse, Regal and Chevrolet Impala, Malibu
• New, not remanufactured
• Neoprene boot material for durability
• Includes self-locking hex axle nut (M24*1.5 thread size)
• Overall compressed length: 25.94 inches (659 mm)
• Inboard joint type: Male with 34 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering direct-fit replacement components for driveline and axle systems. This line emphasizes quality materials such as neoprene boots and precision-machined joints to maintain vehicle drivability and reduce vibration. The GM-8303 part is part of this line, offering a new axle shaft solution that includes a self-locking hex axle nut for secure installation.

Technical Specifications and Features

This CV axle shaft features a neoprene boot designed to resist wear and environmental damage. The inboard joint uses a male connection style with 34 splines, while the outboard joint is conventional with 30 splines, ensuring compatibility with specified Buick and Chevrolet models. The included axle nut is a self-locking hex type, measuring 1 3/7 inches (36 mm) across the flats, with a height of 6/7 inches (21.5 mm) and a length of 1 5/8 inches (41.5 mm). The overall compressed length of the shaft is 25.94 inches (659 mm), matching OEM dimensions for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Buick Allure, LaCrosse, Regal and Chevrolet Impala, Malibu
• Addresses issues such as axle shaft vibration or clicking noises during turns
• Resolves grease boot tears or leaks that can lead to joint failure
• Corrects axle nut thread damage or loss of proper torque retention
• Restores driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify the spline counts and joint types match the GM-8303 specifications. Use the included self-locking hex axle nut to secure the shaft, tightening to manufacturer torque specifications. Inspect the neoprene boot for proper seating to prevent contamination. It is recommended to check wheel alignment and suspension components during installation.

Quality Assurance and Warranty

The TrakMotive GM-8303 CV Axle Shaft is a new replacement part manufactured to meet or exceed OEM standards. It includes a self-locking axle nut to maintain secure fitment. While specific warranty details are not provided, TrakMotive products typically undergo quality control inspections to ensure durability and performance in compatible Buick and Chevrolet vehicles.
