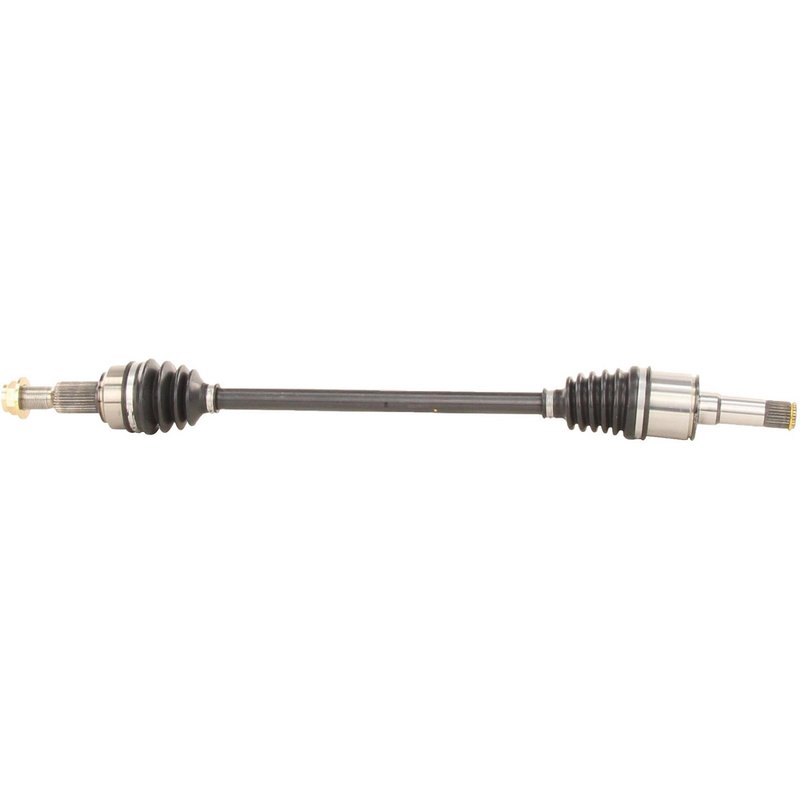

TrakMotive GM-8306 CV Axle Shaft - Rear Right
| Brand | TrakMotive GM-8306 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.81 |
| Overall Compressed Length (mm) | 833.5 |
| Product line | CV Axle Shaft |
| Fits | Buick, Chevrolet, and GMC · 18 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a self-locking hex nut.
Cross-references TrakMotive GM-8306, 179306 and 20953596 for the same application. See all 4.
Rear Right CV Axle Shaft for GM Applications
TrakMotive GM-8306 is a new CV axle shaft for rear right applications on select Buick, Chevrolet, and GMC vehicles. It is built for direct replacement service and includes the axle nut for a cleaner repair process.
Key Features
- Fits 2012-2017 Buick Enclave, rear right
- Fits 2012-2017 Chevrolet Traverse, rear right
- Fits 2012-2016 GMC Acadia, rear right
- Fits 2017 GMC Acadia, rear right, VIN J (11 Digit, Limited)
- New axle shaft with male inboard shaft connection and conventional outboard joint
- Neoprene boot material for driveline protection
- Includes axle nut with self-lock design, M27 x 2 thread, 32.8 mm hex size
- Overall compressed length: 32.81 in. (833.5 mm)
Product Details
TrakMotive GM-8306 is a CV axle shaft for rear right driveline service on the Buick Enclave, Chevrolet Traverse, and GMC Acadia. This axle uses a 27-spline inboard connection and 33-spline outboard configuration, with a conventional outboard joint and male inboard joint design. The axle is built new, not remanufactured, and is specified with a neoprene boot for added durability in everyday road use. TrakMotive GM-8306 also cross-references 179306 and 20953596 for the same application.
Common Repair Uses
- Clicking or popping noises from the rear right axle area
- Vibration during acceleration from a worn CV joint
- Torn boot or grease loss at the axle assembly
- Excessive driveline play or binding
- Replacement after axle shaft wear or damage
Installation Notes
Verify rear right fitment by year, model, and VIN details before installation. Confirm axle nut thread size, hex size, and compressed length against the original part. Inspect related suspension and hub components during service, and follow factory torque specifications when tightening the axle nut and fasteners.
Quality Assurance
TrakMotive GM-8306 is backed by a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and that the company is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Buick | Enclave | Rear Right | CV Axle Shaft |
| 2017 | Chevrolet | Traverse | Rear Right | CV Axle Shaft |
| 2017 | GMC | Acadia | Rear Right | VIN J (11 Digit, Limited); CV Axle Shaft |
| 2016 | Buick | Enclave | Rear Right | CV Axle Shaft |
| 2016 | Chevrolet | Traverse | Rear Right | CV Axle Shaft |
| 2016 | GMC | Acadia | Rear Right | CV Axle Shaft |
| 2015 | Buick | Enclave | Rear Right | CV Axle Shaft |
| 2015 | Chevrolet | Traverse | Rear Right | CV Axle Shaft |
| 2015 | GMC | Acadia | Rear Right | CV Axle Shaft |
| 2014 | Buick | Enclave | Rear Right | CV Axle Shaft |
| 2014 | Chevrolet | Traverse | Rear Right | CV Axle Shaft |
| 2014 | GMC | Acadia | Rear Right | CV Axle Shaft |
| 2013 | Buick | Enclave | Rear Right | CV Axle Shaft |
| 2013 | Chevrolet | Traverse | Rear Right | CV Axle Shaft |
| 2013 | GMC | Acadia | Rear Right | CV Axle Shaft |
| 2012 | Buick | Enclave | Rear Right | CV Axle Shaft |
| 2012 | Chevrolet | Traverse | Rear Right | CV Axle Shaft |
| 2012 | GMC | Acadia | Rear Right | CV Axle Shaft |
