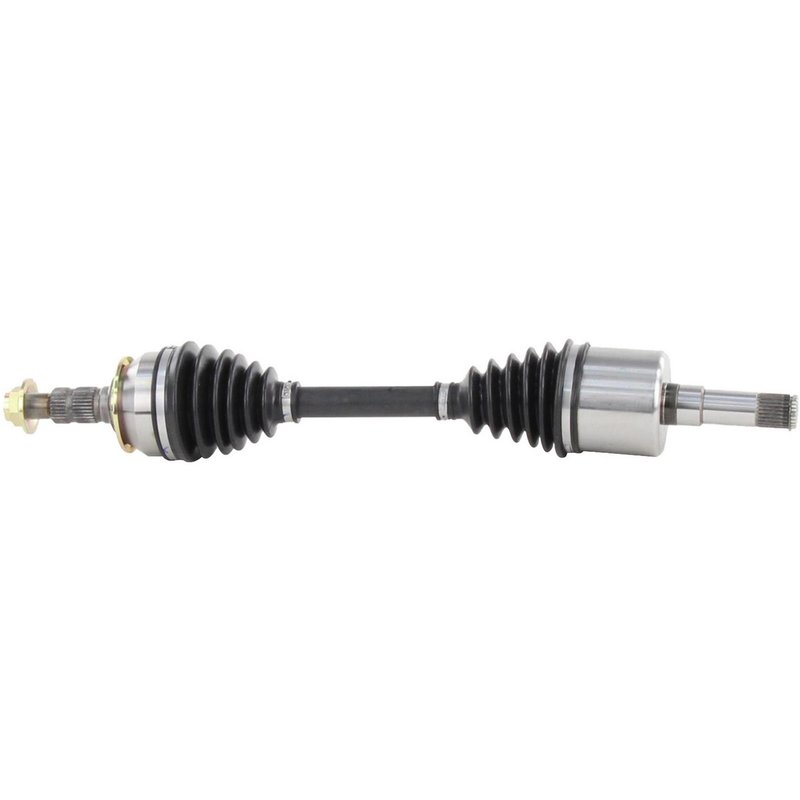

TrakMotive GM-8314 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft GM-8314 for Cadillac SRX

The TrakMotive CV Axle Shaft GM-8314 is designed specifically for Cadillac SRX models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Cadillac SRX
• Brand Line: CV Axle Shaft
• New, not remanufactured
• Neoprene boot material for enhanced durability
• Includes self-locking hex axle nut (M24*1.5 thread size)
• Overall compressed length: 25.55 inches (649 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This CV axle shaft line emphasizes quality materials such as neoprene boots and includes necessary hardware like self-locking axle nuts to ensure secure installation and long-term performance. The GM-8314 part is a new axle shaft designed to meet the exact specifications required by Cadillac SRX models.

Technical Description and Specifications

The GM-8314 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint is a male type with 27 splines, while the outboard joint is conventional with 30 splines, ensuring proper engagement and smooth power transfer. The included axle nut is a hex head type, measuring 1 1/4 inches (31.8 mm) across flats, with a height of 6/7 inches (22 mm) and a length of 1 1/3 inches (34.4 mm). This nut uses a self-locking mechanism with an M24*1.5 thread size to maintain secure fastening during operation. The overall compressed length of the axle shaft is 25.55 inches (649 mm), matching the OEM specifications for Cadillac SRX vehicles.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Cadillac SRX
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle nut loosening problems with included self-locking hex nut

Installation Notes and Tips

When installing the TrakMotive GM-8314 CV axle shaft on a Cadillac SRX, ensure the vehicle is securely lifted and supported. Remove the old axle shaft carefully, noting the orientation of the inboard and outboard joints. Use the included self-locking hex axle nut to secure the shaft, tightening to the manufacturer’s torque specifications. Inspect the neoprene boot for proper seating to prevent contamination. It is recommended to check the splines for damage before installation to ensure smooth engagement.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8314 is a new, high-quality replacement part manufactured to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot to enhance longevity. While specific warranty details are not provided, TrakMotive parts typically come with a limited warranty against defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
