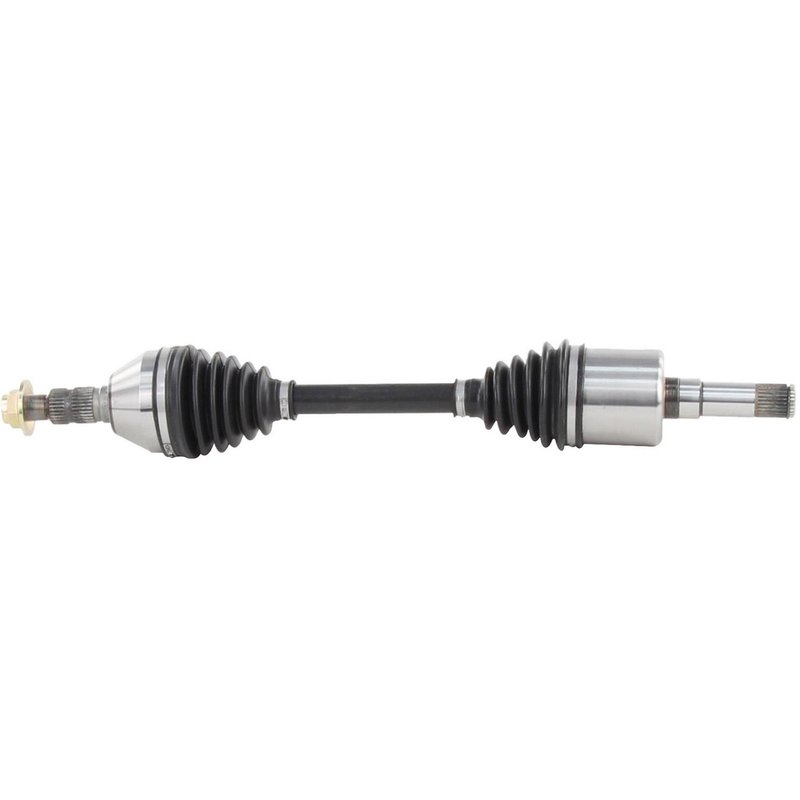

TrakMotive GM-8315 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8315 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.43 |
| Overall Compressed Length (mm) | 646 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 2 vehicles |
New CV axle shaft. Direct replacement for a straightforward driveline repair.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the matching self-lock nut.
Cross-references Cardone New 66-1547, TrakMotive GM-8315 and 179315 for the same application. See all 5.
CV Axle Shaft for Cadillac SRX Front Right
TrakMotive GM-8315 is a new CV axle shaft for the front right position on 2010-2011 Cadillac SRX models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed application.
Key Features
- Fits 2010-2011 Cadillac SRX, front right
- New CV axle shaft for driveline and axle repair
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- Axle nut included with self-lock design
- Axle nut thread size: M24 x 1.5
- Overall compressed length: 25.43 in. (646 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft, part number GM-8315, is specified for the front right side of the Cadillac SRX in 2010 and 2011. The axle uses 27 inboard splines and 30 outboard splines, with a hex axle nut head and a 31.8 mm hex size. TrakMotive identifies this as a new replacement axle shaft, and the brand line focuses on CV axle shaft applications for driveline service. This part cross-references Cardone New 66-1547 for the same application.
Common Repair Uses
- Restores a worn or noisy front right CV axle on a Cadillac SRX
- Addresses clicking during turns caused by CV joint wear
- Replaces a damaged axle shaft with boot or joint failure
- Corrects vibration or driveline shudder related to axle wear
- Supports repair after grease loss from a compromised boot
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. Confirm front right placement and match the vehicle’s ABS configuration, since this axle does not include an ABS tone ring. Use the included self-lock axle nut and follow the vehicle service procedure for torque and final inspection.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:1007 and TS 16949:2009 certified, supporting controlled manufacturing and quality management for driveline components.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Cadillac | SRX | 3.0L | V6 | Front Right | CV Axle Shaft |
| 2010 | Cadillac | SRX | 3.0L | V6 | Front Right | CV Axle Shaft |
