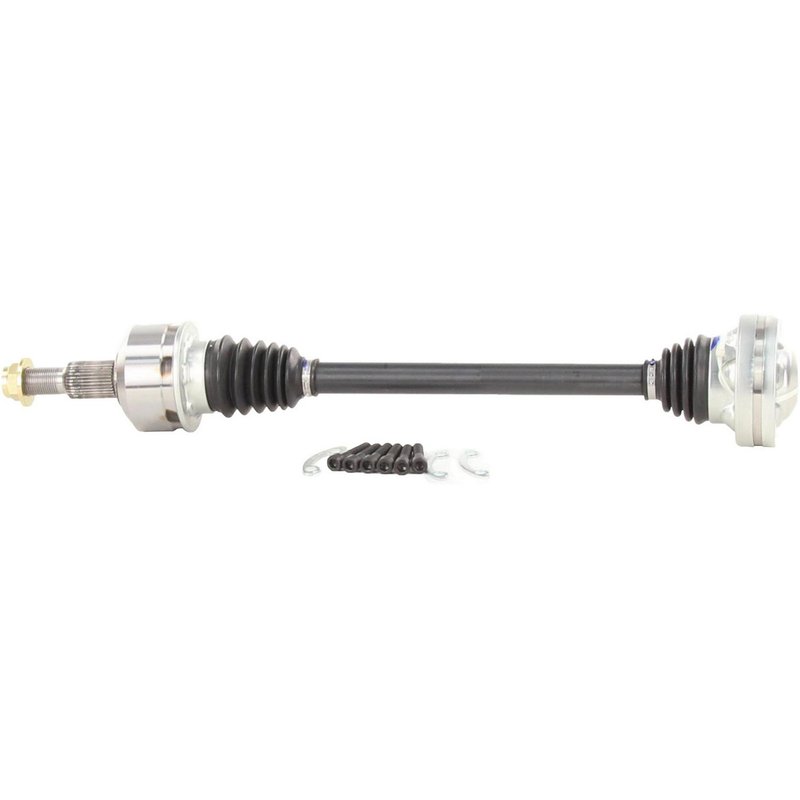

TrakMotive GM-8316 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-8316 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/3 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.01 |
| Overall Compressed Length (mm) | 686 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 8 vehicles |
New part. Freshly manufactured for dependable driveline service.
Bolt-on design. Simplifies installation with a direct connection style.
Neoprene boot. Helps protect the joint from dirt and moisture.
Cross-references TrakMotive GM-8316, 179316 and 20817951 for the same application. See all 4.
TrakMotive GM-8316 Rear Left CV Axle Shaft
The TrakMotive GM-8316 is a new CV axle shaft for the rear left position on select Cadillac CTS models. It is built with a neoprene boot, a conventional outboard joint, and a bolt-on inboard connection for direct driveline service on the listed applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8316
- Fits 2009-2015 Cadillac CTS, rear left
- New axle shaft assembly
- 33 outboard splines
- Neoprene boot material
- Conventional outboard joint and bolt-on inboard joint
- Includes axle nut with self-locking design
- Axle nut thread size: M27x2
- Overall compressed length: 27.01 in. (686 mm)
Product Details
TrakMotive GM-8316 is a CV axle shaft for rear left service on 2009-2015 Cadillac CTS applications. The axle uses a conventional outboard shaft connection and a bolt-on inboard shaft connection, along with a neoprene boot for drivetrain sealing. The included axle nut features a hex head, self-locking design, and M27x2 thread size. TrakMotive identifies this axle as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Part Helps Address
- Clicking or popping from a worn rear CV axle on a Cadillac CTS
- Vibration during acceleration caused by axle wear or imbalance
- Boot damage that can lead to grease loss and joint contamination
- Driveline noise from a failing rear left axle assembly
- Service replacement for the listed rear left CTS fitment
Installation Notes and Tips
Confirm rear left fitment before installation on 2009-2015 Cadillac CTS models. Verify spline count, axle nut thread size, and overall length against the removed part before assembly. Inspect the mating hub, seals, and fasteners for wear or damage, and follow vehicle service procedures for torque specifications and final checks.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that its production is certified to ISO 9001:1007 and TS 16949:2009 standards.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2015 | Cadillac | CTS | V | Coupe | — | — | Rear Left | CV Axle Shaft |
| 2014 | Cadillac | CTS | V | Coupe | — | — | Rear Left | CV Axle Shaft |
| 2014 | Cadillac | CTS | — | Sedan | 6.2L | V8 | Rear Left | CV Axle Shaft |
| 2013 | Cadillac | CTS | V | — | — | — | Rear Left | CV Axle Shaft |
| 2012 | Cadillac | CTS | V | — | — | — | Rear Left | CV Axle Shaft |
| 2011 | Cadillac | CTS | V | — | — | — | Rear Left | CV Axle Shaft |
| 2010 | Cadillac | CTS | V | — | — | — | Rear Left | CV Axle Shaft |
| 2009 | Cadillac | CTS | V | — | — | — | Rear Left | CV Axle Shaft |
