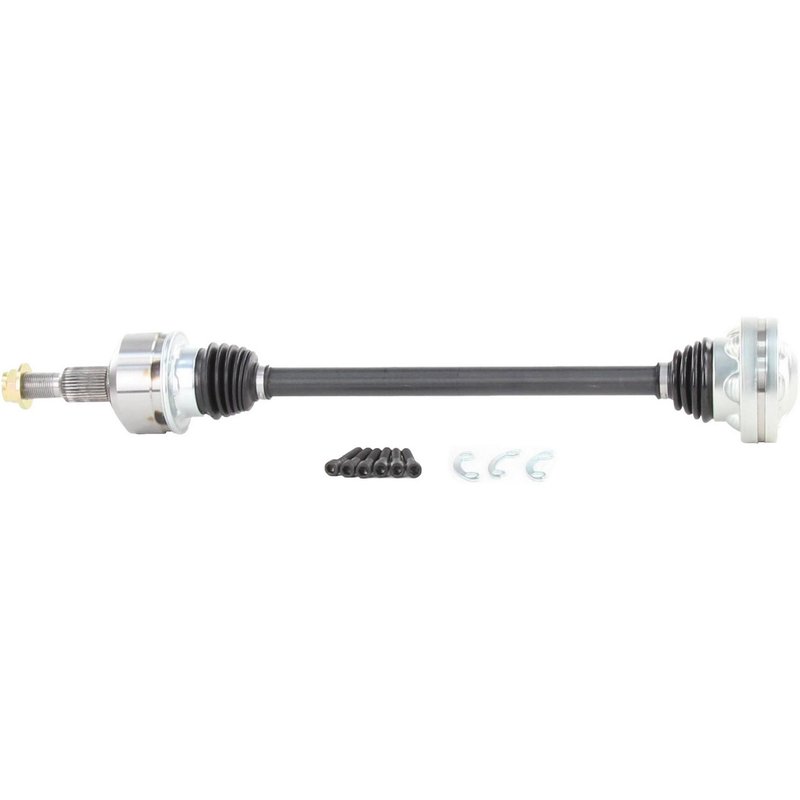

TrakMotive GM-8317 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft GM-8317 for Cadillac CTS

The TrakMotive CV Axle Shaft GM-8317 is designed specifically for Cadillac CTS models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Cadillac CTS vehicles
• Includes self-locking axle nut with hex head
• Neoprene boot material for enhanced durability
• Bolt-on inboard joint with Allen bolt head
• Overall compressed length of 29.86 inches (758.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components. This line features new CV axle shafts engineered to meet OEM specifications, including bolt-on inboard joints and conventional outboard joints. The GM-8317 model exemplifies this with its robust construction and attention to detail, such as the included self-locking axle nut and neoprene boot for long-lasting protection.

Technical Specifications and Features

The GM-8317 CV axle shaft includes a self-locking axle nut with a hex head measuring 1 2/7 inches (32.8 mm) across flats and a height of 6/7 inches (22 mm). The axle nut length is 1 1/2 inches (37.9 mm), and it features an M27*2 thread size. The inboard joint uses a bolt-on connection style with an Allen bolt head sized at 1/3 inch (8 mm) and a length of 2 1/3 inches (60 mm), threaded M10*1.25. The outboard joint is conventional with 33 splines, ensuring compatibility with the Cadillac CTS drivetrain. The boot is made from neoprene, providing resistance to wear and environmental factors.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Cadillac CTS
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage from torn or degraded CV boots
• Restores proper driveline function and vehicle handling
• Prevents premature wear of drivetrain components due to faulty axles

Installation Notes and Tips

Installation of the GM-8317 CV axle shaft requires proper torque specifications for the self-locking axle nut and inboard bolts. Use an Allen wrench for the inboard bolt and a hex socket for the axle nut. Ensure the neoprene boot is properly seated to prevent contamination. This part is designed for bolt-on installation, facilitating a straightforward replacement process on compatible Cadillac CTS models.

Quality Assurance and Warranty

The TrakMotive GM-8317 CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut to maintain secure fitment under operating conditions. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and performance in driveline applications.
