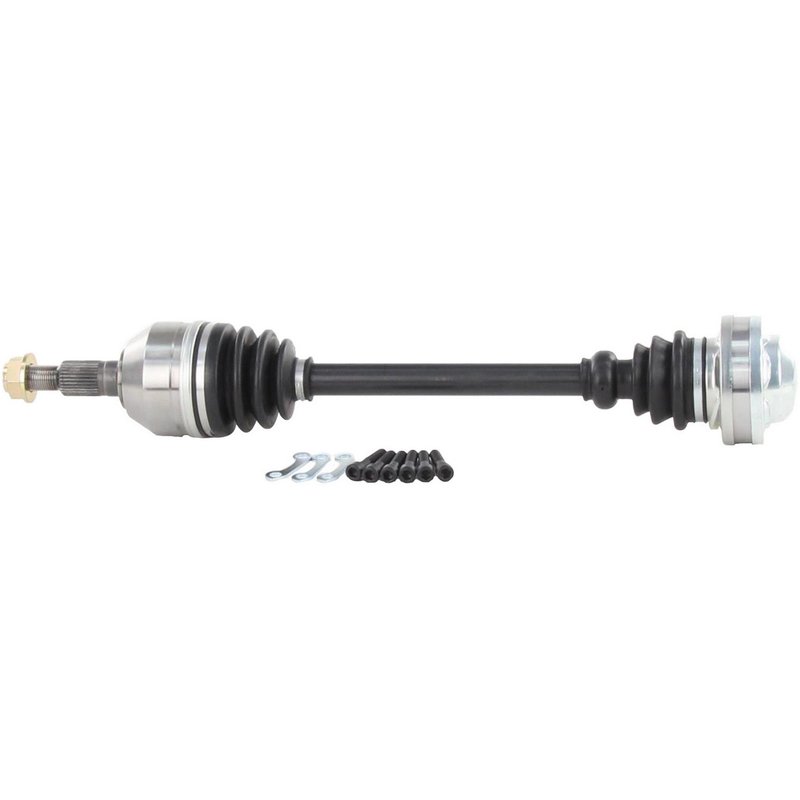

TrakMotive GM-8321 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-8321 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/3 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.09 |
| Overall Compressed Length (mm) | 688 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 8 vehicles |
Bolt-on design. Simplifies installation with a conventional joint and shaft connection.
Neoprene boot material. Helps protect the CV axle shaft from wear and contamination.
Self-lock axle nut. Includes a hex nut for secure fastening.
Cross-references TrakMotive GM-8321, 179321 and 22776826 for the same application. See all 4.
Rear Left CV Axle Shaft for Cadillac CTS
TrakMotive GM-8321 is a new CV axle shaft for the rear left position on select 2008-2014 Cadillac CTS models. It is built for direct driveline replacement and includes the axle nut specified for this application.
Key Features
- Fits 2008-2014 Cadillac CTS, rear left
- New CV axle shaft for driveline and axle service
- Conventional outboard joint with 30 outboard splines
- Bolt-on inboard joint and bolt-on shaft connection
- Neoprene boot material for axle boot durability
- Includes axle nut with M24x2 thread size and self-locking design
- Overall compressed length: 27.09 in. (688 mm)
- TrakMotive part number GM-8321
Product Details
This TrakMotive CV axle shaft is engineered for the rear left side of the Cadillac CTS from 2008 through 2014. The GM-8321 uses a conventional outboard joint, a bolt-on inboard joint, and a bolt-on shaft connection to match the listed application. It is a new replacement axle, not remanufactured, and it is built with a neoprene boot and a 30-spline outboard design. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged axle boot
- Noise from driveline movement at the rear axle
- Loss of smooth power transfer to the rear wheels
Installation Notes and Tips
Verify rear left fitment before installation on your Cadillac CTS. Confirm axle nut thread size, spline count, and overall compressed length against the original part before removal. The axle nut is included; ABS tone ring is not included. This axle is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive identifies this axle shaft as a new component and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The GM-8321 also carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Cadillac | CTS | — | Wagon | Rear Left | CV Axle Shaft |
| 2014 | Cadillac | CTS | Base | Coupe | Rear Left | CV Axle Shaft |
| 2013 | Cadillac | CTS | Base | — | Rear Left | CV Axle Shaft |
| 2012 | Cadillac | CTS | Base | — | Rear Left | CV Axle Shaft |
| 2011 | Cadillac | CTS | Base | — | Rear Left | CV Axle Shaft |
| 2010 | Cadillac | CTS | Base | — | Rear Left | CV Axle Shaft |
| 2009 | Cadillac | CTS | Base | — | Rear Left | CV Axle Shaft |
| 2008 | Cadillac | CTS | — | — | Rear Left | CV Axle Shaft |
