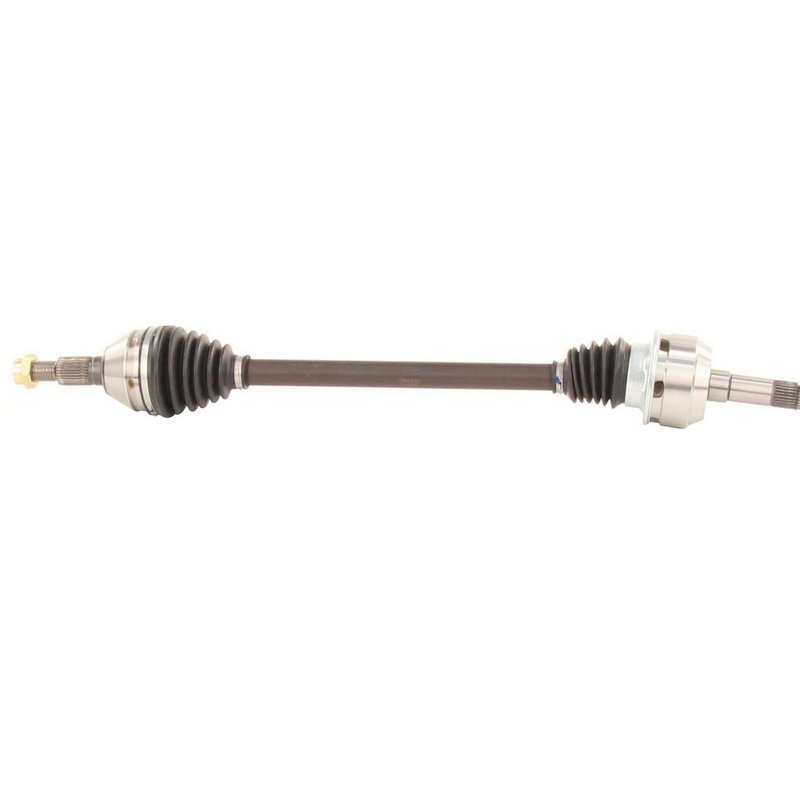

TrakMotive GM-8325 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft GM-8325 for Cadillac CTS

The TrakMotive CV Axle Shaft GM-8325 is designed specifically for Cadillac CTS models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8325
• Compatible with Cadillac CTS
• Neoprene boot material for enhanced durability
• Includes self-locking hex axle nut (M24*2 thread size)
• Overall compressed length: 33.07 inches (840 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fit and function. This line emphasizes durable materials such as neoprene boots and includes necessary hardware like self-locking axle nuts to ensure secure installation. The GM-8325 model is part of this line, tailored to meet the specifications required by Cadillac CTS vehicles.

Technical Description and Specifications

The GM-8325 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint is a male type with 27 splines, while the outboard joint is conventional with 30 splines, ensuring compatibility with the Cadillac CTS drivetrain. The included axle nut is a hex head type, measuring 36 mm across flats, with a height of 21.5 mm and a length of 41.5 mm. This nut uses a self-locking mechanism and has a thread size of M24*2, providing secure fastening during operation. The overall compressed length of the axle shaft is 33.07 inches (840 mm), matching factory specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Cadillac CTS
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or joint failure
• Prevents grease leaks from torn or degraded CV boots
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Use the included self-locking hex axle nut (M24*2) for reassembly
• Verify spline counts (27 inboard, 30 outboard) match vehicle specifications
• Inspect surrounding components such as wheel bearings and suspension for wear
• Torque axle nut to manufacturer’s recommended specifications

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft GM-8325 is a new, not remanufactured, component built to meet OEM standards. It includes a neoprene boot for enhanced durability and comes with a self-locking axle nut to ensure secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable performance on Cadillac CTS vehicles.
