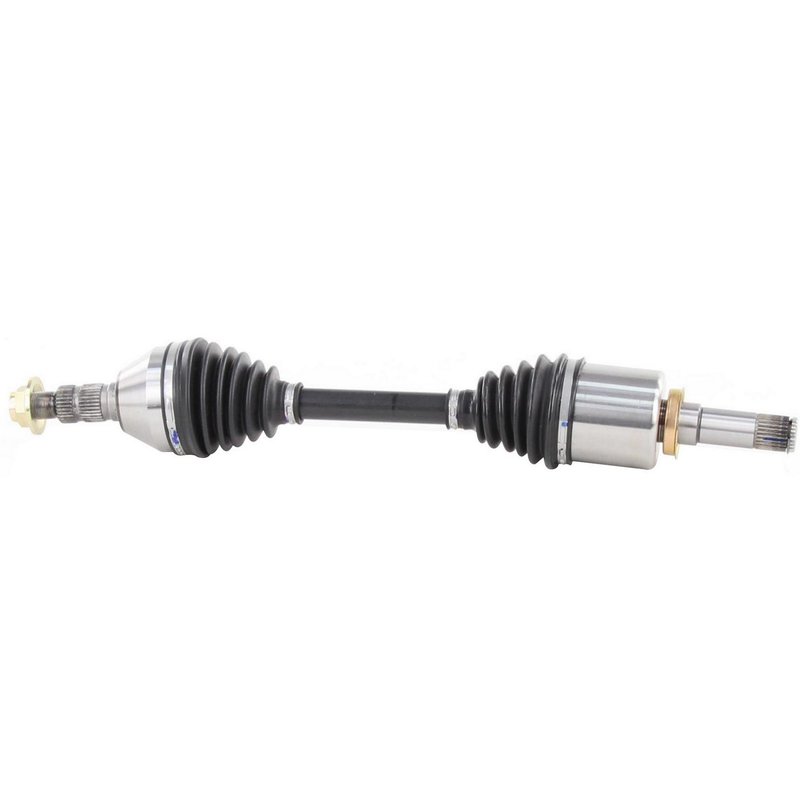

TrakMotive GM-8327 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8327 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.88 |
| Overall Compressed Length (mm) | 632 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 2 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by supplying the matching hardware.
Cross-references Cardone New 66-1546, TrakMotive GM-8327 and 179327 for the same application. See all 5.
Front Left CV Axle Shaft for Cadillac SRX
Restore driveline performance with this TrakMotive CV Axle Shaft, part number GM-8327, for the front left position on select 2010-2011 Cadillac SRX models. This new axle is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8327
- Fits 2010-2011 Cadillac SRX, front left
- New axle shaft construction
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- 27 inboard splines and 30 outboard splines
- Overall compressed length: 24.88 in. (632 mm)
- Axle nut included with self-lock design, M24 x 1.5 thread
- ISO 9001:1007 and TS 16949:2009 certified company
Product Details
TrakMotive GM-8327 is a front left CV axle shaft for the Cadillac SRX, engineered for 2010-2011 applications. It features a 24.88-inch compressed length, a hex axle nut with a 31.8 mm hex size, and a neoprene boot for joint protection. The axle is supplied new and includes the axle nut for service replacement. This part cross-references Cardone New 66-1546 for the same application.
For buyers searching for a 2010 Cadillac SRX front left CV axle shaft or a 2011 Cadillac SRX front left axle replacement, GM-8327 provides the specified spline count and connection styles needed for the listed vehicle fitment. The TrakMotive CV Axle Shaft line focuses on replacement driveline components built to match application-specific dimensions and joint configurations.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Axle play or driveline looseness at the front left corner
- Loss of smooth power transfer to the wheel
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. This axle is listed for the front left position on 2010-2011 Cadillac SRX models. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new replacement part and states that it is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification for its quality management system.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Cadillac | SRX | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2010 | Cadillac | SRX | 3.0L | V6 | Front Left | CV Axle Shaft |
