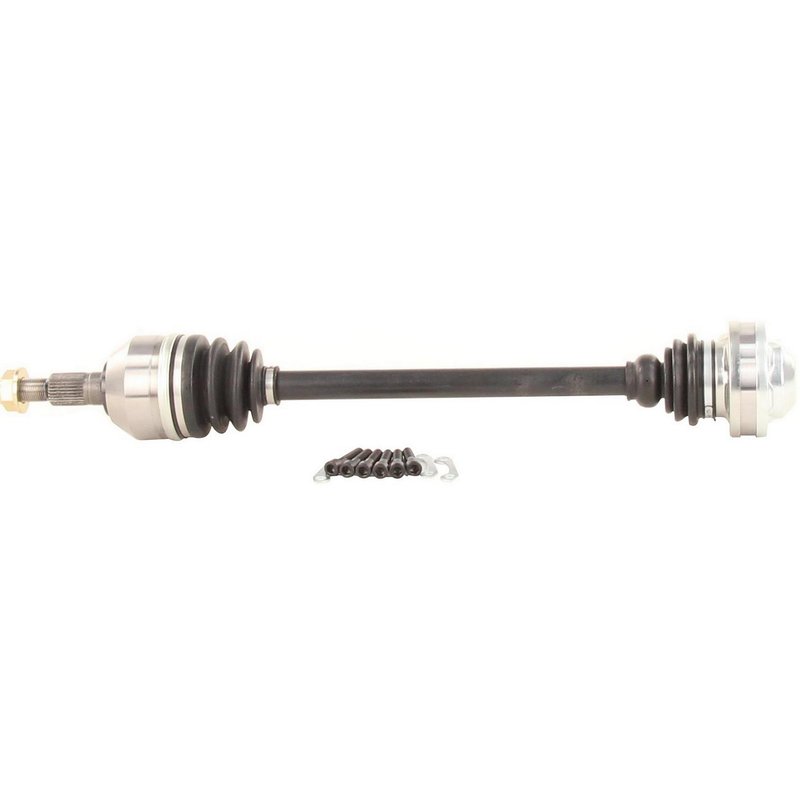

TrakMotive GM-8328 CV Axle Shaft - Rear Right
| Brand | TrakMotive GM-8328 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 1/3 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/3 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 29.84 |
| Overall Compressed Length (mm) | 758 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 8 vehicles |
Bolt-on design. Simplifies installation with a conventional shaft connection.
Neoprene boot material. Helps protect the joint from dirt and moisture.
Certified company. Built by an ISO 9001 and TS 16949 certified manufacturer.
Cross-references TrakMotive GM-8328, 179328 and 22776827 for the same application. See all 4.
Rear Right CV Axle Shaft for Cadillac CTS
TrakMotive GM-8328 is a new rear right CV axle shaft for the 2008-2014 Cadillac CTS. It is built for direct replacement service on rear-wheel-drive driveline applications and includes the axle nut specified for this assembly.
Key Features
- Fits 2008-2014 Cadillac CTS, rear right
- New CV axle shaft for driveline and axle service
- Conventional outboard joint with 30 outboard splines
- Bolt-on inboard joint and bolt-on shaft connection style
- Neoprene boot material for joint protection
- Includes axle nut with M24 x 2 thread size
- Overall compressed length: 29.84 in. (758 mm)
- ABS tone ring not included
Product Details
TrakMotive GM-8328 is engineered as a replacement CV axle shaft for the Cadillac CTS rear right position across the 2008-2014 model years. The assembly uses a conventional outboard joint, a bolt-on inboard joint, and a bolt-on shaft connection style to match the listed application. The axle is supplied new, with a neoprene boot and a self-locking axle nut sized M24 x 2. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive driveline play from worn axle components
- Noise from a failing rear right axle assembly on a Cadillac CTS
Installation Notes and Tips
Verify rear right fitment against the vehicle’s original axle configuration before installation. Confirm spline count, overall compressed length, and axle nut thread size match the removed part. Inspect the hub, seals, and mounting points for wear before installing the new axle shaft. Follow factory torque specifications for the axle nut and inboard fasteners during reassembly.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. GM-8328 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Cadillac | CTS | — | Wagon | Rear Right | CV Axle Shaft |
| 2014 | Cadillac | CTS | Base | Coupe | Rear Right | CV Axle Shaft |
| 2013 | Cadillac | CTS | Base | — | Rear Right | CV Axle Shaft |
| 2012 | Cadillac | CTS | Base | — | Rear Right | CV Axle Shaft |
| 2011 | Cadillac | CTS | Base | — | Rear Right | CV Axle Shaft |
| 2010 | Cadillac | CTS | Base | — | Rear Right | CV Axle Shaft |
| 2009 | Cadillac | CTS | Base | — | Rear Right | CV Axle Shaft |
| 2008 | Cadillac | CTS | — | — | Rear Right | CV Axle Shaft |
