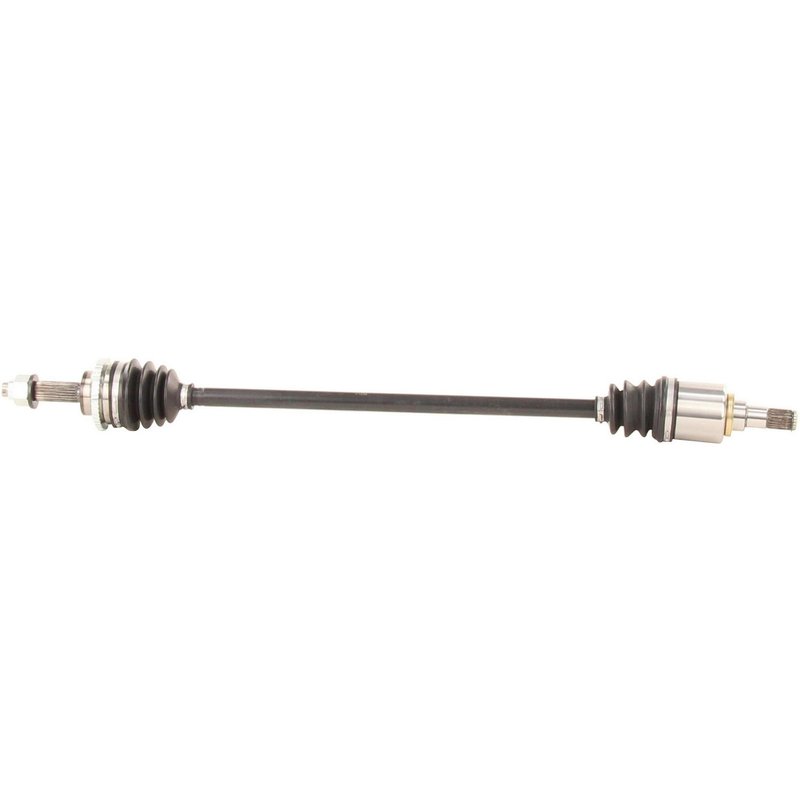

TrakMotive GM-8332 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft GM-8332 for Chevrolet Spark

The TrakMotive CV Axle Shaft GM-8332 is engineered specifically for Chevrolet Spark models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fit and function for your vehicle's front-wheel-drive system.

• Compatible with Chevrolet Spark vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 47-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking type
• Overall compressed length of 35.16 inches (893 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and reliable driveline components. This line includes axle shafts designed to meet OEM specifications, featuring quality materials such as neoprene boots and properly matched spline counts. The GM-8332 model is part of this line, ensuring compatibility and performance for Chevrolet Spark vehicles.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 22 splines on both the inboard and outboard ends, ensuring secure shaft connections. The outboard joint uses a conventional style, while the axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 1 inch (25 mm) and a length of 1 1/3 inches (34.4 mm). The axle nut thread size is M20x1.5, and it uses a stake locking mechanism for secure installation. The included ABS ring has 47 teeth and is of the toothed type, with the tone ring included for proper ABS sensor function. The boot material is neoprene, providing resistance to wear and environmental factors.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Spark
• Resolves issues with axle vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Addresses grease leakage caused by torn or degraded boots
• Fixes axle nut loosening problems with stake locking design

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft GM-8332, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Use appropriate tools for the hex head axle nut (1 1/4 inch) and inspect the neoprene boot for any damage during installation. Proper alignment of the male inboard joint and conventional outboard joint is essential for smooth driveline operation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8332 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
