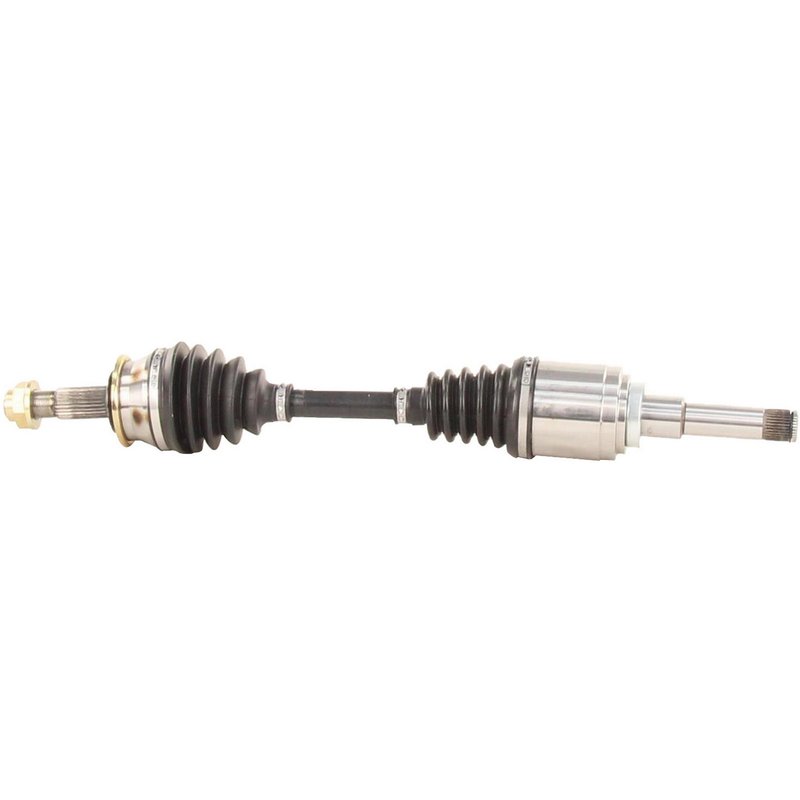

TrakMotive GM-8333 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8333 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.24 |
| Overall Compressed Length (mm) | 641 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 11 vehicles |
New unit. Built as a fresh replacement CV axle shaft.
Neoprene boot. Flexible material helps protect the joint from wear and contamination.
ABS-ready fit. Works in non-ABS applications unless otherwise noted.
Cross-references TrakMotive GM-8333, 179333 and 95015104 for the same application. See all 4.
CV Axle Shaft for Sonic and Trax
TrakMotive GM-8333 is a new CV axle shaft for front left applications on select Chevrolet Sonic and Chevrolet Trax models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8333
- New axle shaft construction
- Front left position
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- 34 inboard splines and 25 outboard splines
- Neoprene boot material
- Axle nut included with M24 x 1.5 thread, stake locking type
- No ABS tone ring included
- Overall compressed length: 25.24 in. (641 mm)
Detailed Description
TrakMotive GM-8333 is a CV axle shaft for front left driveline replacement on 2012-2020 Chevrolet Sonic and 2013-2014 Chevrolet Trax models. This axle is configured with a male inboard joint, a conventional outboard joint, and the specified spline counts to match the listed applications. The included axle nut uses a hex head, M24 x 1.5 thread, and stake locking design. TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line, and the manufacturer notes ISO 9001:1007 and TS 16949:2009 certification for its production process.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn front left CV axle
- Vibration under acceleration caused by axle wear
- Torn or deteriorated axle boot conditions
- Excessive driveline play or noise from a damaged shaft assembly
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify front left fitment before installation on 2012-2020 Chevrolet Sonic and 2013-2014 Chevrolet Trax models. Confirm spline count, axle nut thread size, and overall compressed length against the removed part. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Use the correct torque procedure and stake the axle nut as required by the vehicle service specification.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certified manufacturing.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2019 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2018 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2017 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2016 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2015 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2014 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2014 | Chevrolet | Trax | FWD | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2013 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2013 | Chevrolet | Trax | FWD | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2012 | Chevrolet | Sonic | — | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
