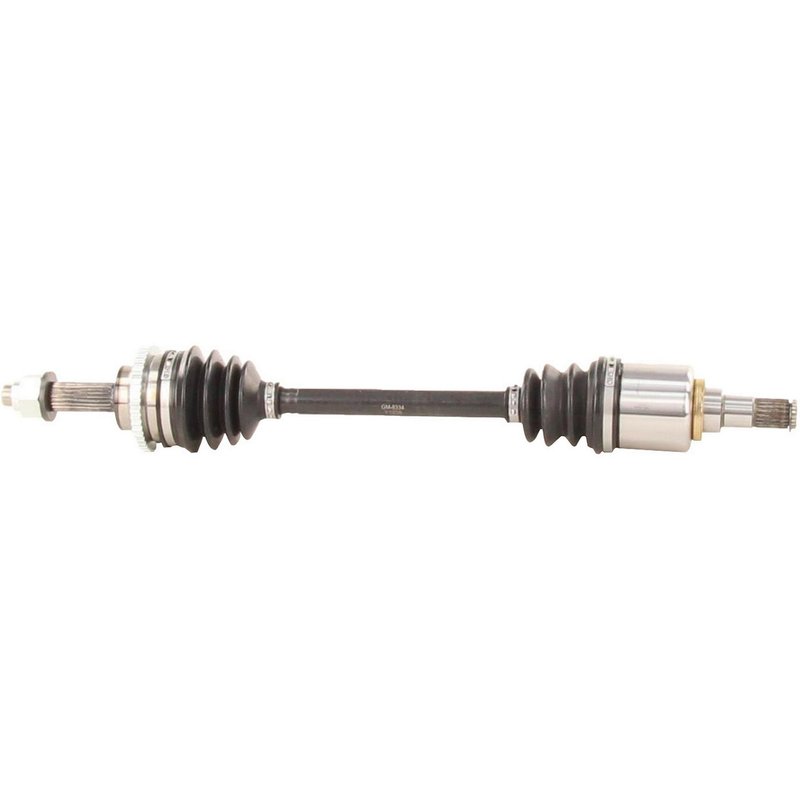

TrakMotive GM-8334 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8334 CV Axle Shaft for Chevrolet Spark

The TrakMotive GM-8334 CV Axle Shaft is designed specifically for Chevrolet Spark models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Chevrolet Spark vehicles
• Includes a 47-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced protection
• Axle nut included with hex head type and stake locking
• Overall compressed length of 23.86 inches (606 mm)
• Inboard and outboard joint types: male and conventional respectively
• Thread size M20*1.5 with 22 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts to facilitate installation. The GM-8334 model exemplifies this approach by combining exact fitment for Chevrolet Spark with durable construction and integrated ABS tone ring features.

Technical Description and Specifications

The GM-8334 CV Axle Shaft features a 47-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 1 inch (25 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism to secure the nut in place. Both the inboard and outboard shafts have 22 splines, with the inboard joint type being male and the outboard joint conventional. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The overall compressed length of the axle shaft is 23.86 inches (606 mm), ensuring proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Spark
• Restores proper ABS sensor signal with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and stake locking

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet Spark before installation
• Ensure the axle nut thread size M20*1.5 matches the hub assembly
• Use proper torque specifications for the 1 1/4 inch hex axle nut
• Inspect the ABS sensor and wiring during installation to avoid damage
• Check boot condition and joint movement after installation for smooth operation

Quality Assurance and Warranty Information

The TrakMotive GM-8334 CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. It includes all necessary hardware such as the axle nut and ABS tone ring to ensure a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable performance in Chevrolet Spark driveline applications.
