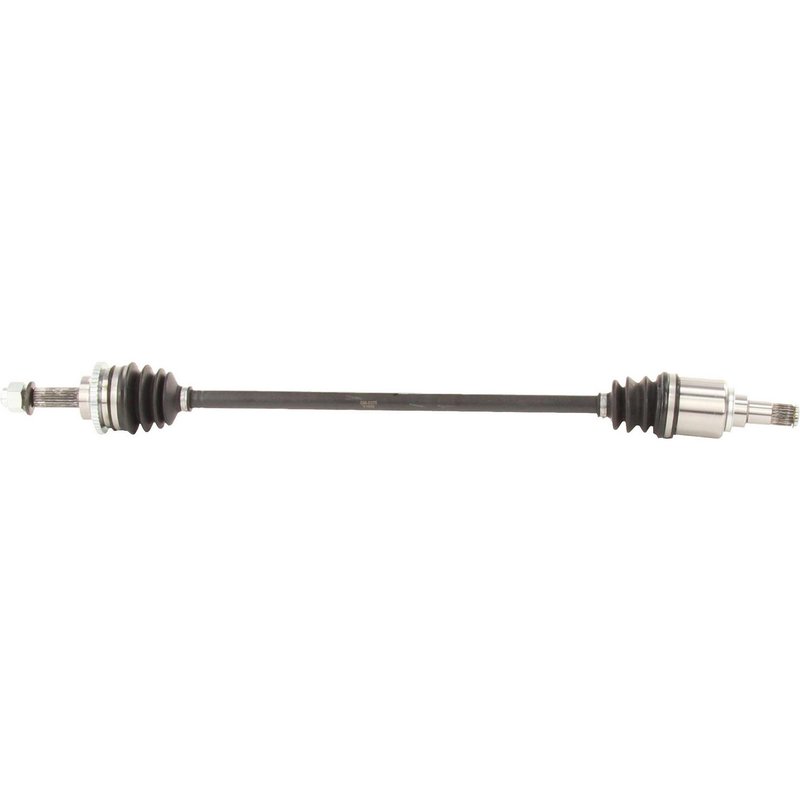

TrakMotive GM-8335 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8335 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 25 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 22 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 34.8 |
| Overall Compressed Length (mm) | 884 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 1 vehicle |
New CV axle shaft. Fresh replacement part for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references TrakMotive GM-8335, 179335 and 95199676 for the same application. See all 4.
TrakMotive GM-8335 CV Axle Shaft for Spark
The TrakMotive GM-8335 is a new CV axle shaft for the front right position on the 2013 Chevrolet Spark. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service on the specified application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built by an ISO 9001:1007 and TS 16949:2009 certified company. The GM-8335 includes an axle nut and ABS tone ring details that matter for proper fitment on the 2013 Chevrolet Spark front right axle application.
Key Features
- Part number GM-8335 CV axle shaft for the front right position
- Fits 2013 Chevrolet Spark, front right
- New axle shaft with 23 inboard splines and 22 outboard splines
- Neoprene boot material for driveline protection
- ABS tone ring included with 47-tooth toothed ring
- Axle nut included with M20 x 1.5 thread, stake lock type, and 31.8 mm hex size
- Overall compressed length: 34.8 in. (884 mm)
Detailed Description
The TrakMotive GM-8335 CV axle shaft is built for the 2013 Chevrolet Spark front right application and is specified with a male inboard joint, conventional outboard joint, and the correct spline counts for the listed vehicle. The included ABS tone ring and axle nut support a complete replacement setup for this driveline position. If you are searching for a 2013 Chevrolet Spark front right CV axle shaft, GM-8335 provides the fitment and hardware details needed for a direct-service replacement.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn or deteriorated axle boot conditions
- ABS-related driveline service needs on the front right axle
- Noise or play caused by spline or joint wear
Installation Notes and Tips
Verify the 2013 Chevrolet Spark front right application before installation and confirm spline count, axle nut thread size, and ABS tone ring configuration against the removed part. Inspect the hub, seals, and mating components for wear before installing the GM-8335. Use the correct axle nut torque procedure for the vehicle and replace any damaged related hardware as needed during service.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes for driveline replacement parts.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Chevrolet | Spark | Automatic | Front Right | CV Axle Shaft |
