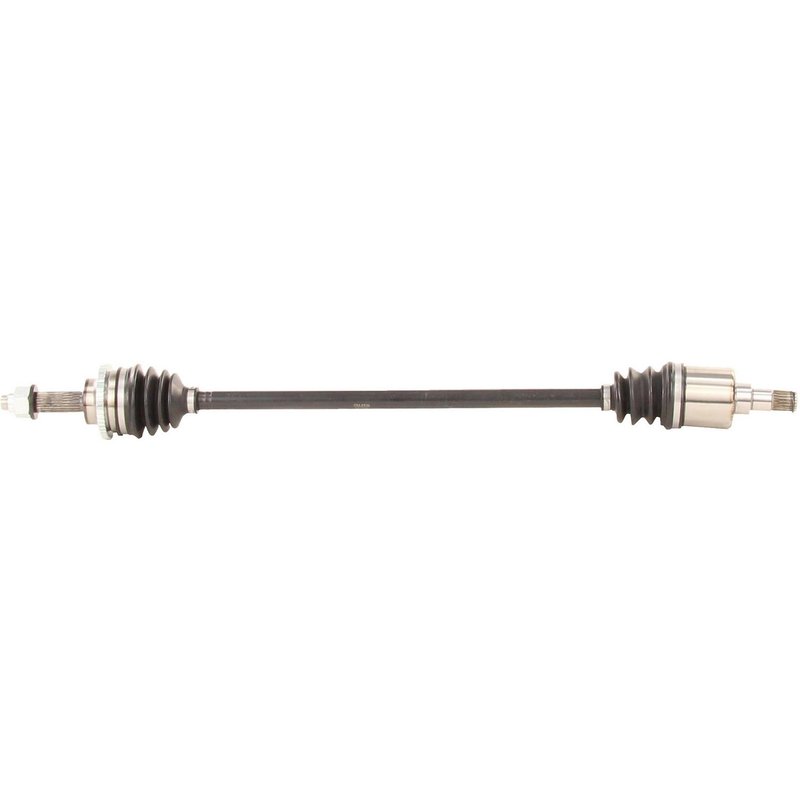

TrakMotive GM-8336 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft GM-8336 for Chevrolet Spark

The TrakMotive CV Axle Shaft GM-8336 is engineered specifically for Chevrolet Spark models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Chevrolet Spark vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 47-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking type
• Overall compressed length of 34.21 inches (869 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes shafts with precise spline counts and connection styles to match factory specifications. The GM-8336 model features a male inboard joint and conventional outboard joint, ensuring compatibility with Chevrolet Spark drivetrains.

Technical Specifications and Features

This CV axle shaft includes a 47-tooth toothed ABS ring with the tone ring included, which supports accurate wheel speed sensor readings. The axle nut is a hex type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 1 inch (25 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M20x1.5 thread size and a stake locking mechanism to secure the nut firmly in place. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. Both inboard and outboard splines number 22, with the inboard shaft connection style being male and the outboard conventional.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Spark
• Resolves issues with axle vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Addresses grease leakage from torn or degraded boots
• Corrects axle nut loosening or thread damage

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify the spline counts and joint types match the GM-8336 specifications. Use the included axle nut and torque it to manufacturer-recommended specifications, taking care to stake the nut properly to prevent loosening. Inspect the neoprene boot for proper seating to avoid premature wear.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8336 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to maintain vehicle safety systems. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
