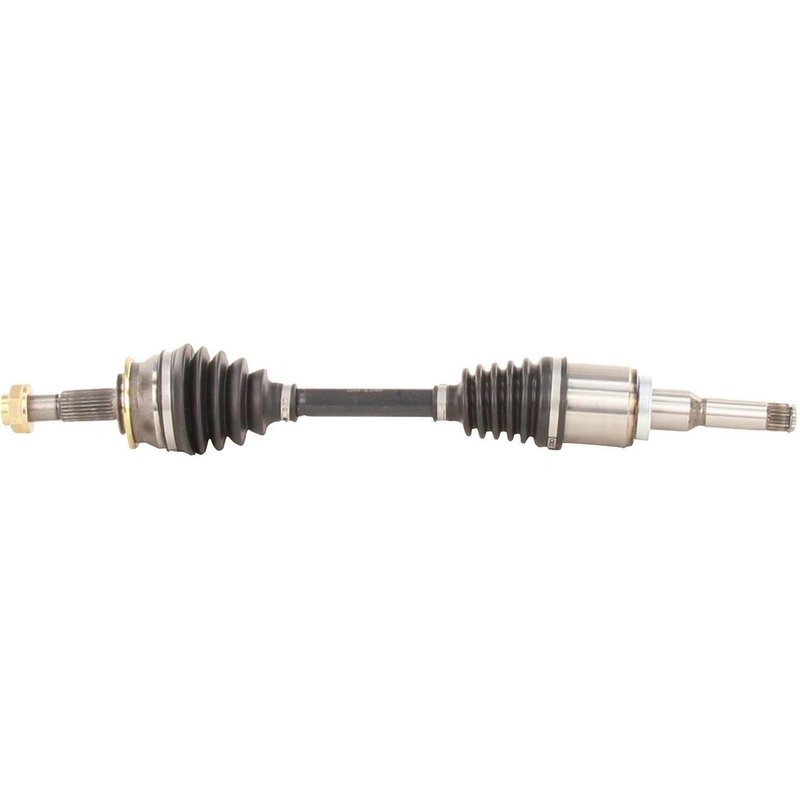

TrakMotive GM-8340 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8340 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.72 |
| Overall Compressed Length (mm) | 628 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 7 vehicles |
OE-style replacement. New CV axle shaft with a bolt-on fit and included axle nut.
Neoprene boot. Flexible material helps protect the joint from dirt and moisture.
Certified quality. Made by an ISO 9001 and TS 16949 certified company.
Cross-references Cardone Reman 60-1519, Dorman - Conduct-Tite 85112 and TrakMotive GM-8340 for the same application. See all 7.
CV Axle Shaft for Chevrolet Sonic Front Left
Restore driveline performance with this TrakMotive CV axle shaft for the front left position on select Chevrolet Sonic models. TrakMotive GM-8340 is a new replacement axle built for direct-fit service on 2012-2018 Chevrolet Sonic applications, including the 2018 Chevrolet Sonic front left standard duty replacement listing.
Key Features
- New CV axle shaft for driveline and axle service
- Fits front left applications on Chevrolet Sonic models
- Overall compressed length: 24.72 in. (628 mm)
- Inboard joint type: male with 22 inboard splines
- Outboard joint type: conventional with 25 outboard splines
- Neoprene boot material for CV joint protection
- Includes axle nut with M24 x 1.5 thread, 35.6 mm hex size, and stake locking type
- No ABS tone ring included
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
TrakMotive GM-8340 is a CV axle shaft engineered for front left installation on the Chevrolet Sonic. It uses a male inboard shaft connection, a conventional outboard connection, and the specified spline counts to match the listed vehicle applications. The axle is supplied new, with a neoprene boot and included axle nut, and it is built to meet the dimensional and connection requirements called out for Sonic driveline service. This part cross-references Cardone Reman 60-1519 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn boot conditions that expose the joint to contamination
- Excessive driveline play from a damaged front axle shaft
- Loss of smooth power transfer to the front left wheel
Installation Notes and Tips
Verify front left fitment against the vehicle year and trim before installation. Confirm axle nut thread size, hex size, and locking style match the original hardware specification. Inspect the hub, seals, and surrounding suspension components during replacement, and follow the vehicle service procedure for torque and axle nut staking. GM-8340 is listed for 2012-2017 Chevrolet Sonic front left applications and 2018 Chevrolet Sonic front left standard duty replacement service.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Chevrolet | Sonic | Automatic | 1.8L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Chevrolet | Sonic | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2016 | Chevrolet | Sonic | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2015 | Chevrolet | Sonic | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2014 | Chevrolet | Sonic | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2013 | Chevrolet | Sonic | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2012 | Chevrolet | Sonic | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
