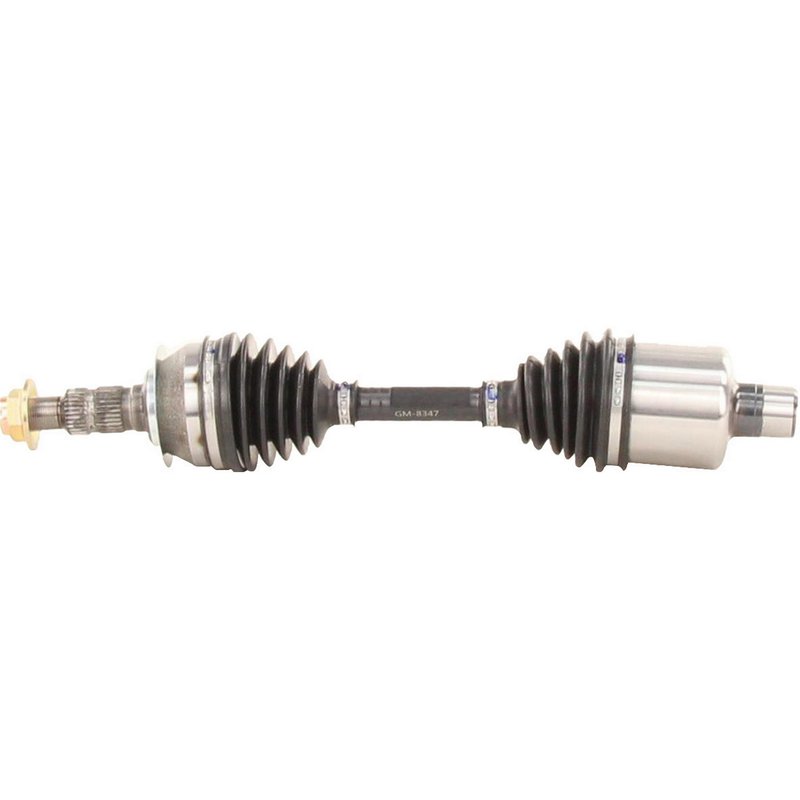

TrakMotive GM-8347 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8347 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20 |
| Overall Compressed Length (mm) | 508 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 5 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Ready for a cleaner, more complete installation.
Cross-references Cardone New 66-1573, TrakMotive GM-8347 and 179347 for the same application. See all 5.
TrakMotive GM-8347 CV Axle Shaft for Volt
The TrakMotive GM-8347 is a new CV axle shaft for the front left position on 2011-2015 Chevrolet Volt models. It is built for direct replacement service and includes the axle nut specified for the application.
Key Features
- Fits 2011-2015 Chevrolet Volt, front left
- New CV axle shaft for driveline and axle service
- Female inboard shaft connection with 34 inboard splines
- Conventional outboard joint with 30 outboard splines
- Neoprene boot material for CV joint protection
- Axle nut included with self-lock design, M24 x 1.5 thread
- Overall compressed length: 20 in. (508 mm)
- Part number GM-8347
Product Details
TrakMotive CV Axle Shaft GM-8347 is built for the front left side of the Chevrolet Volt and matches the listed OE-style configuration for this application. The shaft uses a female inboard connection, a conventional outboard joint, and the specified spline counts to support proper fitment on 2011, 2012, 2013, 2014, and 2015 Volt models. The included axle nut features a hex head, self-lock design, and M24 x 1.5 thread size. TrakMotive GM-8347 is also cross-referenced to Cardone New 66-1573 for the same application.
The TrakMotive CV Axle Shaft product line focuses on replacement driveline components built for direct-fit service. For Chevrolet Volt front axle replacement, GM-8347 provides the listed dimensions and connection style needed for a straightforward repair.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play caused by worn splines or joint wear
- Front left driveline failure on Chevrolet Volt models
Installation Notes and Tips
Verify front left fitment by matching the vehicle year, axle length, spline counts, and axle nut thread size before installation. Inspect the hub, seals, and surrounding driveline components during replacement, and confirm the axle nut is tightened to the vehicle manufacturer’s specification. This part is listed for non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certified company standards. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Chevrolet | Volt | Front Left | CV Axle Shaft |
| 2014 | Chevrolet | Volt | Front Left | CV Axle Shaft |
| 2013 | Chevrolet | Volt | Front Left | CV Axle Shaft |
| 2012 | Chevrolet | Volt | Front Left | CV Axle Shaft |
| 2011 | Chevrolet | Volt | Front Left | CV Axle Shaft |
