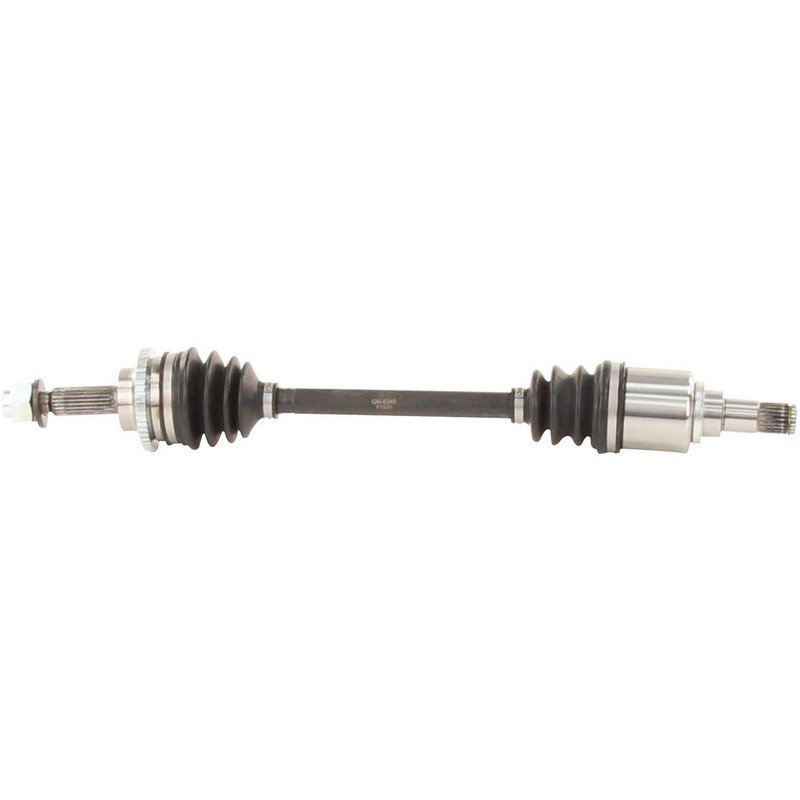

TrakMotive GM-8349 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8349 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 25 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 22 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.06 |
| Overall Compressed Length (mm) | 611 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 1 vehicle |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references TrakMotive GM-8349, 179349 and 95199675 for the same application. See all 4.
CV Axle Shaft for 2013 Chevrolet Spark
TrakMotive GM-8349 is a new CV axle shaft for the front left position on the 2013 Chevrolet Spark. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service.
Key Features
- Fits 2013 Chevrolet Spark, front left
- TrakMotive CV Axle Shaft, part number GM-8349
- New axle assembly with 23 inboard splines and 22 outboard splines
- Includes a toothed ABS tone ring with 47 teeth
- Axle nut included with M20 x 1.5 thread, 1 1/4 in hex size, and stake locking type
- Overall compressed length: 24.06 in (611 mm)
- Neoprene boot material for driveline protection
Product Details
This TrakMotive CV axle shaft GM-8349 is specified for the 2013 Chevrolet Spark front left application and is built as a new replacement driveline component. The axle uses a male inboard connection, a conventional outboard joint, and the correct spline count and compressed length for the listed vehicle application. TrakMotive identifies this CV axle shaft line as a direct replacement option for driveline service where a worn or damaged axle needs to be replaced.
This part cross-references 179349 and 95199675 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or leaking axle boot conditions
- Excessive driveline play from damaged axle splines or joints
- ABS-related driveline service needs when the tone ring is required
Installation Notes and Tips
Verify front left fitment before installation on the 2013 Chevrolet Spark. Confirm spline counts, axle nut thread size, and compressed length against the original axle before removal. Inspect the hub, seals, and surrounding suspension components during service, and torque the axle nut to the vehicle manufacturer’s specification after installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Chevrolet | Spark | Automatic | Front Left | CV Axle Shaft |
