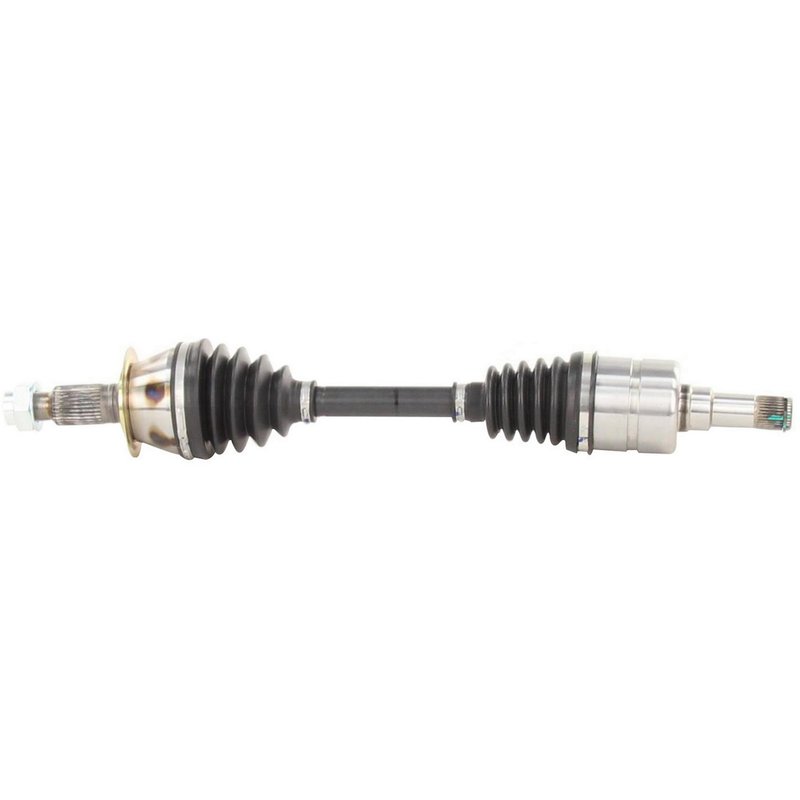

TrakMotive GM-8353 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft GM-8353 for Cadillac ATS

The TrakMotive CV Axle Shaft GM-8353 is designed specifically for Cadillac ATS models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Cadillac ATS
• Part Number: GM-8353
• Brand Line: CV Axle Shaft
• Neoprene boot material for enhanced durability
• Includes axle nut with stake locking type
• Inboard joint type: Male with 34 splines
• Outboard joint type: Conventional with 30 splines
• Overall compressed length: 22.76 inches (578 mm)
• Axle nut hex size: 1 3/7 inches (36 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This CV axle shaft line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts with stake locking to ensure secure installation. The GM-8353 model is part of this line, tailored to meet the specifications required by Cadillac ATS vehicles.

Detailed Product Description

The GM-8353 CV axle shaft from TrakMotive features a neoprene boot that offers resistance to wear and environmental factors, helping to maintain joint integrity over time. The inboard joint is a male type with 34 splines, while the outboard joint is conventional with 30 splines, ensuring compatibility with the Cadillac ATS driveline system. The included axle nut has a hex head measuring 36 mm (1 3/7 inches) and a stake locking type to prevent loosening during operation. The overall compressed length of 22.76 inches (578 mm) matches OEM specifications for proper fitment and function.

Common Applications and Issues Addressed

• Replacement for worn or damaged CV axle shafts on Cadillac ATS
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks from torn or degraded boots
• Restores driveline stability and smooth power transfer

Installation Notes and Tips

When installing the TrakMotive GM-8353 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Inspect the surrounding suspension and driveline components for wear or damage during installation. Use appropriate tools for the 36 mm hex axle nut and verify spline engagement on both inboard and outboard connections. Proper boot positioning and clamp installation are critical to prevent contamination and premature failure.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous testing and material selection, including durable neoprene boots and precision-machined splines. Warranty details should be confirmed with the distributor or manufacturer, ensuring coverage for defects in materials and workmanship.
