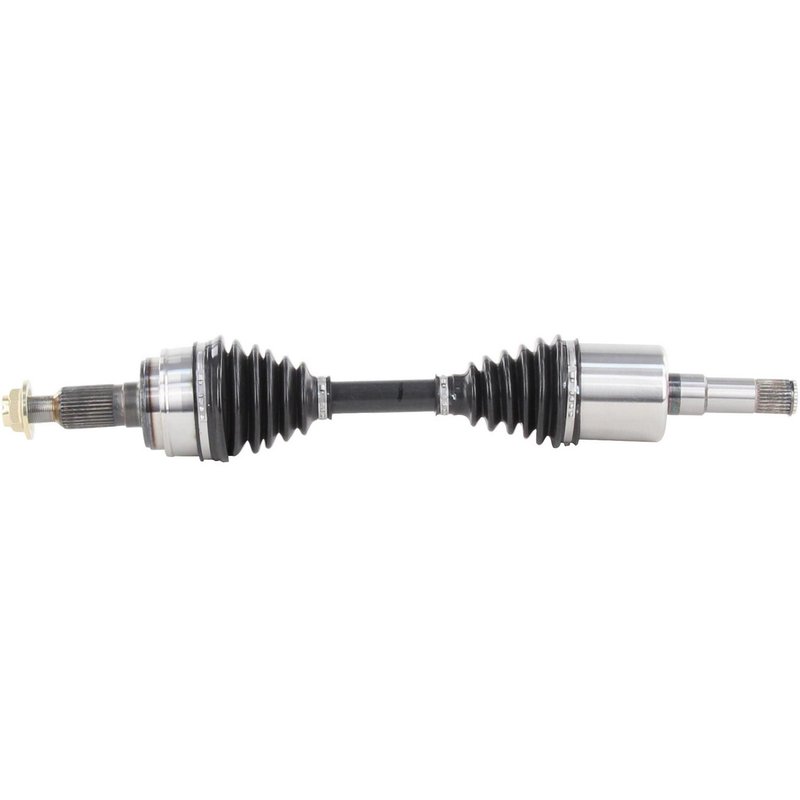

TrakMotive GM-8354 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8354 for Cadillac XTS

The TrakMotive CV Axle Shaft GM-8354 is designed specifically for Cadillac XTS models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Cadillac XTS
• New, not remanufactured
• Neoprene boot material for enhanced durability
• Includes self-locking axle nut with hex head
• Overall compressed length of 23.98 inches (609 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 33 splines
• Axle nut thread size M24 x 1.5, hex size 1 1/4 inch (31.8 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The GM-8354 model is part of this line, offering a new axle shaft designed to meet factory specifications for the Cadillac XTS. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like self-locking axle nuts to ensure secure installation and long-term performance.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that resists wear and environmental damage, helping to protect the joint from contaminants. The inboard joint uses a male connection style with 27 splines, while the outboard joint is conventional with 33 splines, ensuring proper engagement and torque transfer. The included axle nut is a self-locking type with a hex head measuring 1 1/4 inches (31.8 mm) across flats, 6/7 inches (22 mm) in height, and 1 1/3 inches (34.4 mm) in length, designed to maintain secure fastening under operating conditions. The overall compressed length of 23.98 inches (609 mm) matches OEM specifications for the Cadillac XTS.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Cadillac XTS
• Fixes clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance
• Addresses grease leaks from torn or degraded CV boots
• Restores proper driveline function after axle shaft failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft GM-8354, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle shaft splines for proper engagement and verify the neoprene boot is seated correctly to prevent contamination. It is recommended to replace the axle nut included with the shaft to ensure secure fastening. Professional installation is advised to maintain driveline integrity and vehicle safety.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet or exceed OEM standards for the Cadillac XTS. The use of durable neoprene boots and precision-machined splines supports long service life. The included self-locking axle nut enhances installation reliability. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
