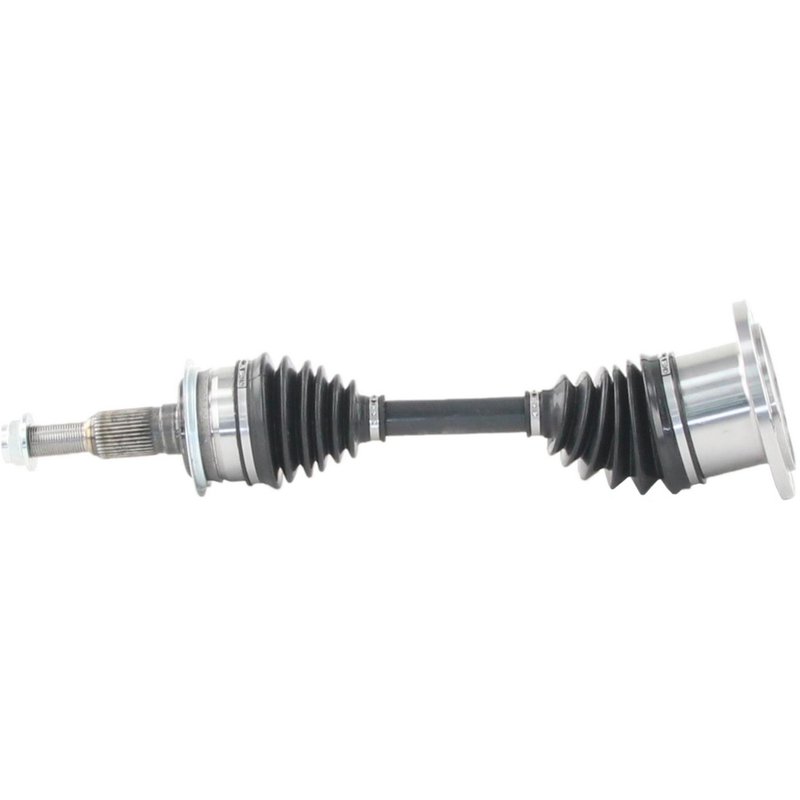

CV Axle ShaftTrakMotive GM-8356 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive GM-8356 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.03 |
| Overall Compressed Length (mm) | 585 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet and GMC · 68 vehicles |
New CV axle shaft. Fresh replacement part with a neoprene boot for durable joint protection.
OE-style fitment. Includes axle nut and uses flange-to-spline connections for straightforward installation.
Certified manufacturing. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive GM-8356, 179356 and 22813485 for the same application. See all 5.
$138.78Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
CV Axle Shaft for Silverado and Sierra HD
TrakMotive GM-8356 is a new CV axle shaft for front left and front right applications on select Chevrolet Silverado and GMC Sierra trucks. It is built for 2015-2020 heavy-duty fitments, including Classic Style 2020 models, with OE-style dimensions and connection points for direct replacement service.
Key Features
- New CV axle shaft for front axle service
- Fits front left and front right positions on listed Chevrolet Silverado and GMC Sierra applications
- Flange inboard joint and spline outboard shaft connection
- 36 outboard splines
- Neoprene boot material
- Includes axle nut with self-lock design
- No ABS tone ring included
- Overall compressed length: 23.03 in. (585 mm)
- Part number GM-8356
Product Details
TrakMotive GM-8356 is a CV axle shaft for Chevrolet Silverado 2500, Silverado 2500 HD, Silverado 3500, Silverado 3500 HD, GMC Sierra, Sierra 2500 HD, and Sierra 3500 HD front axle applications listed below. The flange-style inboard joint, conventional outboard joint, and 36-spline outboard connection support OE-style fitment, while the included axle nut uses an M27x2 thread with a 32.8 mm hex size. TrakMotive identifies this axle as a new part, and the brand notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Axle Shaft Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged front axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play caused by worn splines or joint wear
- Front driveline noise on Silverado and Sierra HD trucks
Installation Notes and Fitment
- Fits 2020 Chevrolet Silverado 2500 HD, front right, Classic Style; CV Axle Shaft
- Fits 2020 Chevrolet Silverado 2500 HD, front left, Classic Style; CV Axle Shaft
- Fits 2020 Chevrolet Silverado 3500 HD, front right, Classic Style; CV Axle Shaft
- Fits 2020 Chevrolet Silverado 3500 HD, front left, Classic Style; CV Axle Shaft
- Fits 2020 GMC Sierra 2500 HD, front right, Classic Style; CV Axle Shaft
- Fits 2020 GMC Sierra 2500 HD, front left, Classic Style; CV Axle Shaft
- Fits 2020 GMC Sierra 3500 HD, front right, Classic Style; CV Axle Shaft
- Fits 2020 GMC Sierra 3500 HD, front left, Classic Style; CV Axle Shaft
- Fits 2015-2019 Chevrolet Silverado 2500 HD, front right
- Fits 2015-2019 Chevrolet Silverado 2500 HD, front left
- Fits 2015-2019 Chevrolet Silverado 3500 HD, front right
- Fits 2015-2019 Chevrolet Silverado 3500 HD, front left
- Fits 2015-2019 GMC Sierra 2500 HD, front right
- Fits 2015-2019 GMC Sierra 2500 HD, front left
- Fits 2015-2019 GMC Sierra 3500 HD, front right
- Fits 2015-2019 GMC Sierra 3500 HD, front left
- Fits 2015-2018 Chevrolet Silverado 2500, front right
- Fits 2015-2018 Chevrolet Silverado 2500, front left
- Fits 2015-2018 Chevrolet Silverado 3500, front right
- Fits 2015-2018 Chevrolet Silverado 3500, front left
- Fits 2015-2018 GMC Sierra, front left
Verify axle nut thread size, spline count, and position before installation. This GM-8356 axle is listed for non-ABS applications unless otherwise noted, and the fitment data should be matched to the exact vehicle configuration.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and product consistency.
This part fits 68 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Chevrolet | Silverado 2500 HD | 4WD | Front Right | Classic Style; CV Axle Shaft |
| 2020 | Chevrolet | Silverado 2500 HD | 4WD | Front Left | Classic Style; CV Axle Shaft |
| 2020 | Chevrolet | Silverado 3500 HD | 4WD | Front Right | Classic Style; CV Axle Shaft |
| 2020 | Chevrolet | Silverado 3500 HD | 4WD | Front Left | Classic Style; CV Axle Shaft |
| 2020 | GMC | Sierra 2500 HD | 4WD | Front Right | Classic Style; CV Axle Shaft |
| 2020 | GMC | Sierra 2500 HD | 4WD | Front Left | Classic Style; CV Axle Shaft |
| 2020 | GMC | Sierra 3500 HD | 4WD | Front Right | Classic Style; CV Axle Shaft |
| 2020 | GMC | Sierra 3500 HD | 4WD | Front Left | Classic Style; CV Axle Shaft |
| 2019 | Chevrolet | Silverado 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2019 | Chevrolet | Silverado 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2019 | Chevrolet | Silverado 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2019 | Chevrolet | Silverado 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2019 | GMC | Sierra 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2019 | GMC | Sierra 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2019 | GMC | Sierra 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2019 | GMC | Sierra 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 2500 | 4WD | Front Right | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 2500 | 4WD | Front Left | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 3500 | — | Front Right | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 3500 | — | Front Left | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2018 | Chevrolet | Silverado 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2018 | GMC | Sierra | — | Front Left | CV Axle Shaft |
| 2018 | GMC | Sierra 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2018 | GMC | Sierra 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2018 | GMC | Sierra 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2018 | GMC | Sierra 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 2500 | 4WD | Front Right | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 2500 | 4WD | Front Left | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 3500 | — | Front Right | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 3500 | — | Front Left | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2017 | Chevrolet | Silverado 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2017 | GMC | Sierra | — | Front Left | CV Axle Shaft |
| 2017 | GMC | Sierra 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2017 | GMC | Sierra 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2017 | GMC | Sierra 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2017 | GMC | Sierra 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 2500 | 4WD | Front Right | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 2500 | 4WD | Front Left | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 3500 | — | Front Right | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 3500 | — | Front Left | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2016 | Chevrolet | Silverado 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2016 | GMC | Sierra | — | Front Left | CV Axle Shaft |
| 2016 | GMC | Sierra 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2016 | GMC | Sierra 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2016 | GMC | Sierra 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2016 | GMC | Sierra 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 2500 | 4WD | Front Right | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 2500 | 4WD | Front Left | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 3500 | — | Front Right | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 3500 | — | Front Left | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2015 | Chevrolet | Silverado 3500 HD | 4WD | Front Left | CV Axle Shaft |
| 2015 | GMC | Sierra | — | Front Left | CV Axle Shaft |
| 2015 | GMC | Sierra 2500 HD | 4WD | Front Right | CV Axle Shaft |
| 2015 | GMC | Sierra 2500 HD | 4WD | Front Left | CV Axle Shaft |
| 2015 | GMC | Sierra 3500 HD | 4WD | Front Right | CV Axle Shaft |
| 2015 | GMC | Sierra 3500 HD | 4WD | Front Left | CV Axle Shaft |
| No rows match your filter. | |||||
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — GM-835617935622813485GM10549ENCV10312
