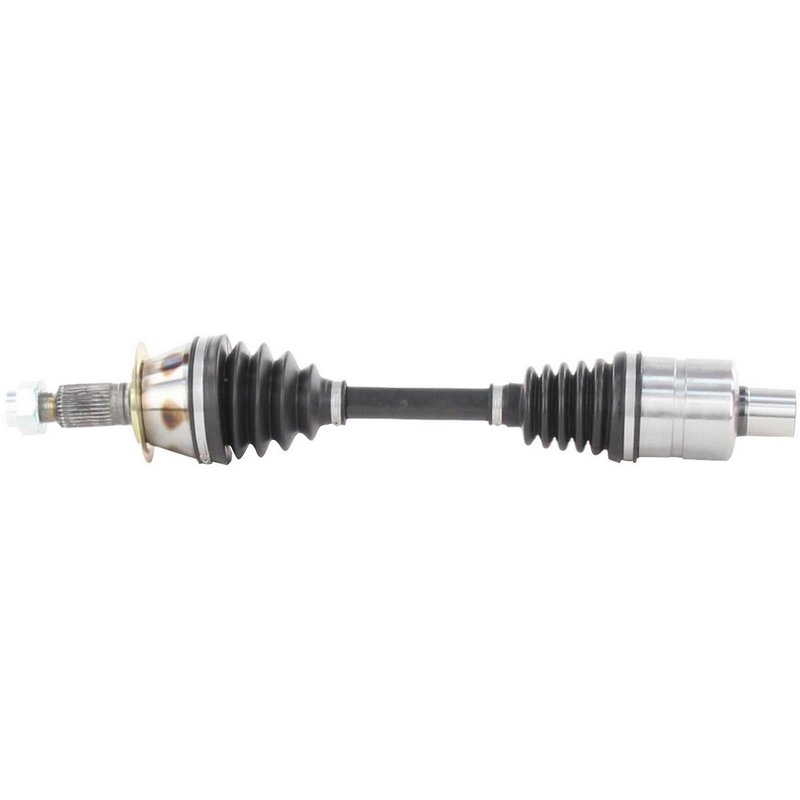

TrakMotive GM-8359 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8359 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 20.98 |
| Overall Compressed Length (mm) | 533 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 6 vehicles |
New unit. Freshly manufactured for dependable CV axle replacement.
Neoprene boot. Helps protect the joint from dirt and moisture.
Includes axle nut. Conveniently supplied for a more complete install.
Cross-references TrakMotive GM-8359, 179359 and GM10531ER for the same application. See all 4.
TrakMotive GM-8359 CV Axle Shaft for Cadillac ATS
The TrakMotive GM-8359 is a new front left CV axle shaft for 2013-2018 Cadillac ATS applications. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline replacement service.
Key Features
- Fits 2013-2018 Cadillac ATS, front left
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for joint protection
- Female inboard shaft connection with 34 inboard splines
- Spline outboard connection with 30 outboard splines
- Includes axle nut with M24 x 1.5 thread size
- Hex axle nut head, 36 mm hex size, stake locking type
- No ABS tone ring included
- Overall compressed length: 20.98 in. (533 mm)
Product Details
TrakMotive CV Axle Shaft GM-8359 is engineered for front left service on the Cadillac ATS from 2013 through 2018. This axle uses a female inboard joint, a conventional outboard joint, and the specified spline counts to match the original driveline connection points. The included axle nut and measured compressed length help support a proper replacement for worn or damaged front axle assemblies. TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Applications
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Excessive driveline play or axle wear
- Front left axle replacement on a Cadillac ATS
Installation Notes
Verify front left fitment before installation and confirm spline count, axle nut thread size, and compressed length against the original part. Inspect the hub, seals, and surrounding suspension components during replacement. Because this axle does not include an ABS tone ring, it is suited for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new replacement part and states that it is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Cadillac | ATS | AWD | Front Left | CV Axle Shaft |
| 2017 | Cadillac | ATS | AWD | Front Left | CV Axle Shaft |
| 2016 | Cadillac | ATS | AWD | Front Left | CV Axle Shaft |
| 2015 | Cadillac | ATS | AWD | Front Left | CV Axle Shaft |
| 2014 | Cadillac | ATS | AWD | Front Left | CV Axle Shaft |
| 2013 | Cadillac | ATS | AWD | Front Left | CV Axle Shaft |
