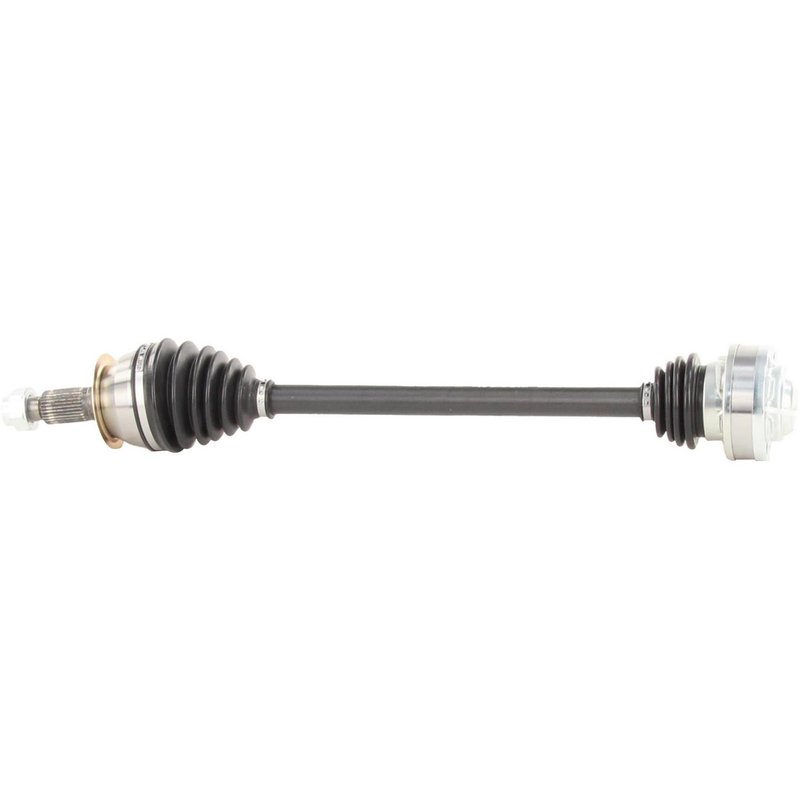

TrakMotive GM-8361 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft GM-8361 for Cadillac ATS

The TrakMotive CV Axle Shaft GM-8361 is designed specifically for Cadillac ATS models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Cadillac ATS
• Part Number: GM-8361
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Overall compressed length of 28.58 inches (726 mm)
• Hex head axle nut with 36 mm hex size
• Inboard joint is bolt-on type; outboard joint is conventional spline

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This CV axle shaft model GM-8361 is part of that line, offering a new, direct replacement axle shaft designed to meet factory specifications for the Cadillac ATS. The line emphasizes quality materials such as neoprene boots and secure bolt-on connections to maintain drivetrain integrity.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a bolt-on connection style, ensuring a secure fit to the transmission or differential. The outboard joint employs a conventional spline connection with 30 splines for proper engagement with the wheel hub. The included axle nut is a hex head type with a 36 mm hex size, 1 5/8 inch length, and a stake locking mechanism to prevent loosening during operation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Cadillac ATS
• Fixes clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance
• Addresses grease leaks from torn or damaged CV boots
• Restores proper driveline function after axle shaft bending or breakage

Installation Notes and Tips

Installation of the TrakMotive GM-8361 CV axle shaft requires proper torque of the included axle nut to the manufacturer’s specifications. The stake locking type axle nut should be staked after tightening to ensure it remains secure. Verify the bolt-on inboard joint is properly seated and fastened. Use appropriate tools to avoid damage to the neoprene boot during installation. It is recommended to inspect related suspension and drivetrain components during replacement.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The neoprene boot material and secure joint connections contribute to long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance for Cadillac ATS applications.
