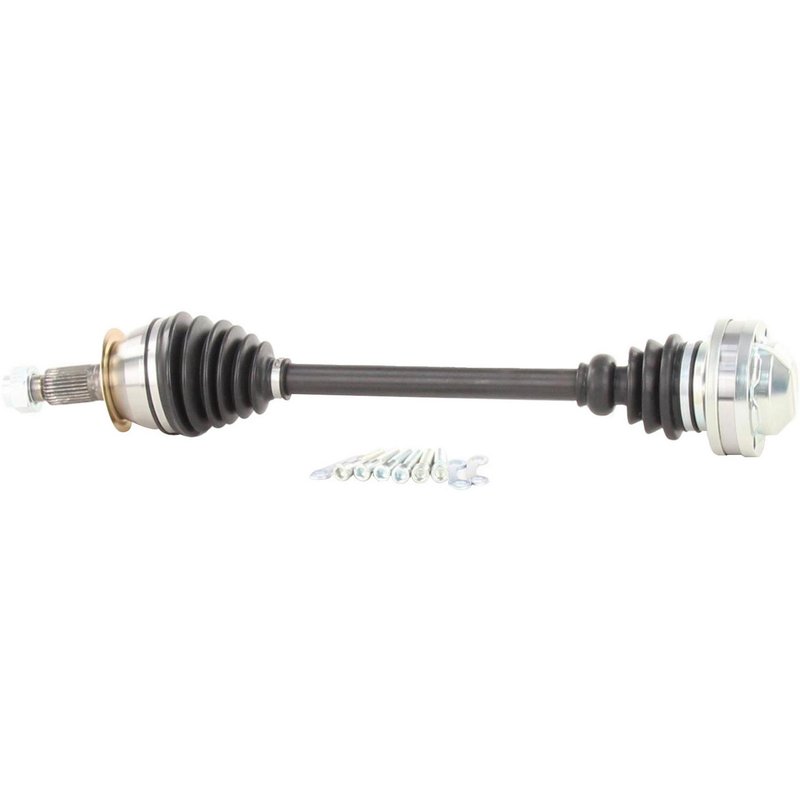

TrakMotive GM-8362 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft GM-8362 for Cadillac ATS

The TrakMotive CV Axle Shaft GM-8362 is designed specifically for Cadillac ATS models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Cadillac ATS vehicles
• New, not remanufactured, for consistent quality
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Inboard joint features bolt-on connection with 6 bolt holes
• Outboard joint uses conventional spline connection with 30 splines
• Overall compressed length of 26.02 inches (661 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components engineered for precise fit and function. This CV axle shaft line emphasizes quality materials such as neoprene boots and secure bolt-on inboard joints, ensuring compatibility and durability for specific vehicle applications like the Cadillac ATS.

Technical Specifications and Features

The GM-8362 CV axle shaft includes a hex-type axle nut measuring 1 inch in height (26.5 mm) and 1 3/7 inch (36 mm) across the flats, with a thread size of M24*1.5. The axle nut length is 1 5/8 inches (41.5 mm) and features a stake locking mechanism to maintain secure fastening. The inboard bolt head is an Allen type, 1/3 inch (8 mm) in size, with a length of 2 1/3 inches (60 mm), and the inboard joint is a bolt-on style with six bolt holes and bolts for a secure connection. The outboard joint uses a conventional spline connection with 30 splines, ensuring proper engagement with the vehicle's hub assembly. The boot is made from neoprene, providing resistance to wear and environmental factors.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Cadillac ATS
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage from torn or degraded CV boots
• Restores proper driveline function and vehicle handling
• Prevents further damage to suspension and drivetrain components

Installation Notes and Tips

Installation requires removal of the old CV axle shaft and proper torqueing of the included axle nut to manufacturer specifications. The stake locking axle nut should be secured carefully to prevent loosening. The bolt-on inboard joint with six bolts ensures a stable connection; verify all bolts are tightened evenly. Use appropriate tools for the hex axle nut and Allen inboard bolts. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft GM-8362 is a new part manufactured to meet OEM standards for fit and function. The neoprene boot and stake locking axle nut contribute to long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure dependable performance on Cadillac ATS vehicles.
