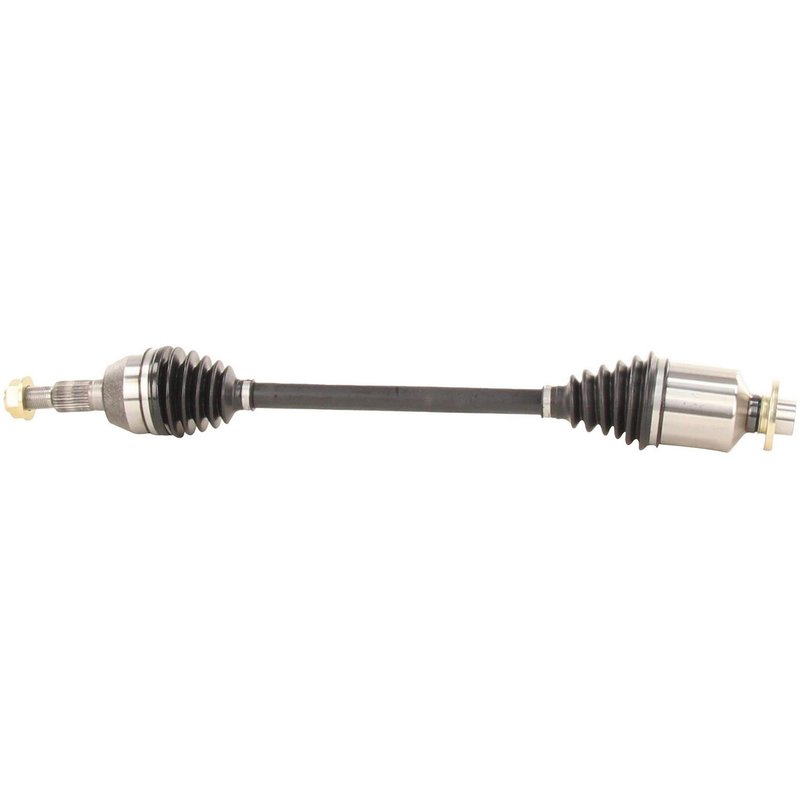

TrakMotive GM-8373 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8373 CV Axle Shaft

The TrakMotive GM-8373 CV Axle Shaft is designed specifically for Chevrolet Equinox and Pontiac Torrent models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8373
• Compatible with Chevrolet Equinox and Pontiac Torrent
• Overall compressed length: 29.72 inches (755 mm)
• Boot material: Neoprene for enhanced durability
• Axle nut included with self-locking hex head design
• Inboard joint type: Female with 34 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components engineered for specific vehicle applications. This ensures proper fit and function for driveline and axle repairs. The GM-8373 model is part of this line, offering a new axle shaft with neoprene boots and a self-locking axle nut to maintain secure installation and long service life.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that resists wear and environmental damage. The inboard joint uses a female connection style with 34 splines, while the outboard joint is conventional with 30 splines, matching factory specifications for Chevrolet Equinox and Pontiac Torrent vehicles. The included axle nut has a hex head type measuring 1 2/5 inches (35.5 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 3/5 inches (41 mm). The nut is self-locking with an M24x2 thread size, ensuring secure fastening during operation. The overall compressed length of the shaft is 29.72 inches (755 mm), designed to fit the specified models without modification.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Chevrolet Equinox and Pontiac Torrent
• Elimination of clicking or popping noises during turns caused by failing CV joints
• Restoration of smooth power transfer to the wheels for improved drivability
• Repair of torn or leaking CV boots to prevent grease loss and contamination
• Addressing axle shaft vibration or imbalance issues

Installation Notes and Tips

When installing the TrakMotive GM-8373 CV Axle Shaft, ensure the vehicle is securely lifted and supported. Remove the old axle shaft carefully, noting the orientation of the inboard and outboard joints. Use the included self-locking axle nut to secure the shaft, tightening to manufacturer torque specifications. Inspect the neoprene boot for proper seating to prevent premature wear. It is recommended to check wheel alignment and suspension components during installation to maintain optimal driveline performance.

Quality Assurance and Warranty

The TrakMotive GM-8373 CV Axle Shaft is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes a self-locking axle nut and durable neoprene boots for extended service life. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
