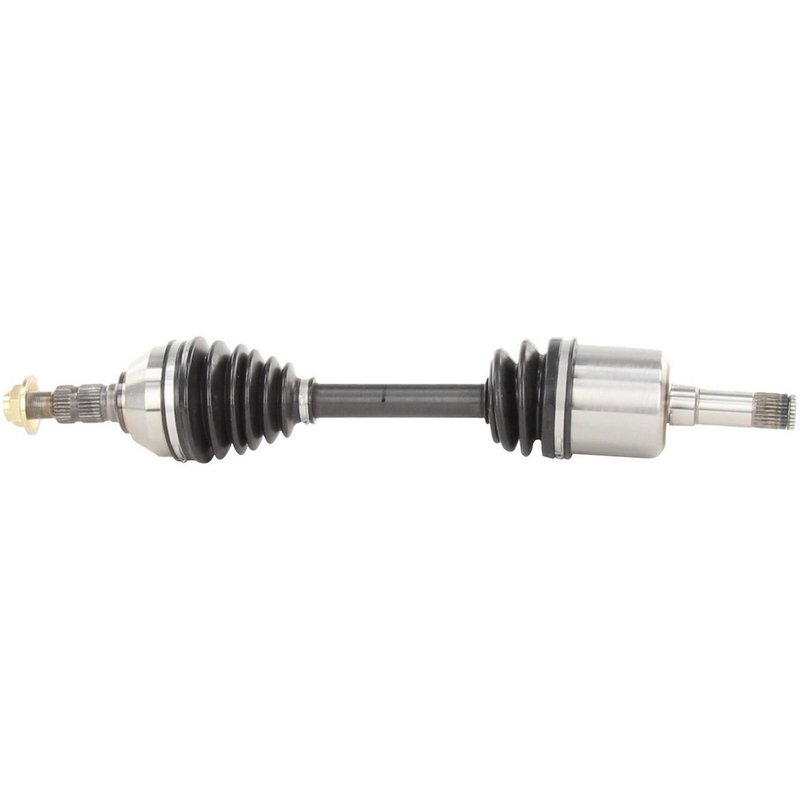

TrakMotive GM-8388 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8388 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.87 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.35 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.72 |
| Overall Compressed Length (mm) | 628 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet · 1 vehicle |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied with the hardware needed for installation.
Cross-references TrakMotive GM-8388 for the same application. See all 1.
TrakMotive GM-8388 CV Axle Shaft
The TrakMotive GM-8388 is a new front left CV axle shaft for the 2016 Chevrolet Malibu with the updated design and VIN Z (4th digit) application. Built as an AAR CV axle shaft, it is specified for precise driveline fitment and smooth power transfer in the front suspension.
Key Features
- Direct-fit CV axle shaft for the front left position
- Fits 2016 Chevrolet Malibu, front left
- New style / updated design application
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- 27 inboard splines and 30 outboard splines
- Neoprene boot material for joint protection
- Includes axle nut with self-lock design
- ABS tone ring not included
- Overall compressed length: 24.72 in. (628 mm)
Detailed Description
TrakMotive GM-8388 is engineered for the 2016 Chevrolet Malibu front left axle location and matches the updated design used on VIN Z vehicles. The axle uses a male inboard joint, a conventional outboard joint, and spline-style shaft connections to support proper engagement with the drivetrain and hub assembly. The included axle nut features an M24 x 1.5 thread, 31.8 mm hex size, and self-locking design for the specified application. TrakMotive GM-8388 is a practical replacement choice when servicing a worn or damaged front axle on a 2016 Chevrolet Malibu.
The AAR CV axle shaft line focuses on application-specific driveline replacement parts for passenger vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Clicking or popping from the front left axle during turns
- Vibration or shudder during acceleration
- Grease leakage from a damaged CV boot
- Worn splines or joint play at the axle assembly
- Restoring driveline function after axle shaft failure
Installation Notes
Verify the vehicle’s VIN Z configuration and front left position before installation. Confirm spline counts, axle nut thread size, and compressed length against the original part to ensure correct fitment on the 2016 Chevrolet Malibu. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive identifies this axle as a new part and states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system. The GM-8388 also carries a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Chevrolet | Malibu | 2.0L | L4 | Front Left | Updated Design; New Style; VIN Z (4th Digit); AAR CV Axle Shaft |
