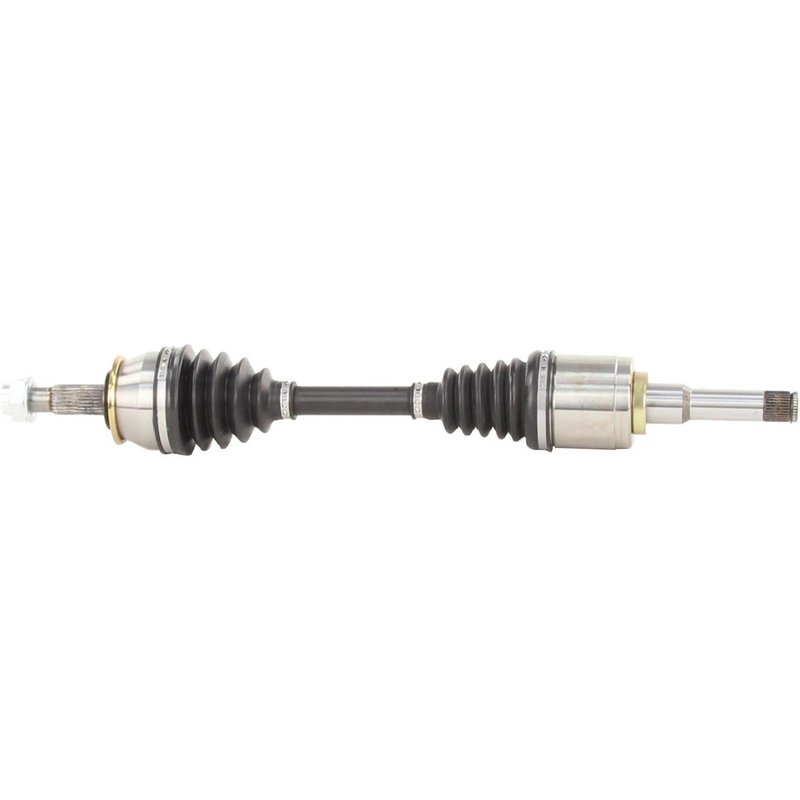

TrakMotive GM-8408 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8408 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.04 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.64 |
| Axle Nut Length (mm) | 41.57 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.55 |
| Overall Compressed Length (mm) | 649 |
| Product line | CV Axle Shaft |
| Fits | Buick and Chevrolet · 31 vehicles |
New replacement part. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps protect the joint with durable, flexible material.
Spline connections. 34 inboard and 25 outboard splines for secure engagement.
Cross-references TrakMotive GM-8408 and 94522011 for the same application. See all 2.
TrakMotive GM-8408 CV Axle Shaft
TrakMotive GM-8408 is a new front left CV axle shaft for select Buick Encore and Chevrolet Trax applications. It is built with a neoprene boot, spline-style shaft connections, and the correct axle nut hardware for a direct replacement on listed vehicles.
The TrakMotive CV Axle Shaft line focuses on application-specific driveline replacement parts. GM-8408 follows that approach with OE-style fitment details, including 34 inboard splines, 25 outboard splines, a conventional outboard joint, and a male inboard joint for the listed front-left positions.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8408
- Front left axle shaft for listed Buick Encore and Chevrolet Trax models
- New replacement axle shaft, not remanufactured
- Neoprene boot material for driveline protection
- Inboard shaft connection style: spline
- Outboard shaft connection style: spline
- Inboard joint type: male
- Outboard joint type: conventional
- 34 inboard splines and 25 outboard splines
- Axle nut included; hex head, stake-locking style, M24 x 1.5 thread
- Overall compressed length: 25.55 in. (649 mm)
- ABS tone ring not included
- ISO 9001:1007 and TS 16949:2009 certified company
Detailed Description
GM-8408 is a direct-fit CV axle shaft for the front left side on 2013-2021 Buick Encore and 2013-2020 Chevrolet Trax applications listed in the fitment data. It is engineered as a new driveline replacement with the correct spline counts, compressed length, and axle nut specifications needed for proper installation on the specified vehicles. This part cross-references GM-8408 and 94522011 for the same application.
For buyers searching for a front left CV axle shaft for Buick Encore or Chevrolet Trax, this part provides the key dimensional and connection details needed to match the original driveline setup. The axle uses a neoprene boot and does not include an ABS tone ring, and the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain during acceleration
- Grease leakage from a damaged axle boot
- Clunking or looseness from a failing front axle assembly
- Driveline wear on a high-mileage Buick Encore or Chevrolet Trax
Installation Notes
Verify front-left fitment by year, make, model, and application details before installation. Confirm the axle nut thread size, spline counts, and overall compressed length against the original part. Because this axle uses a stake-locking axle nut, follow the vehicle service procedure for proper torque and staking. Check ABS requirements before installation since no ABS tone ring is included.
- Fits 2020-2021 Buick Encore, front left
- Fits 2013-2020 Chevrolet Trax, front left
- Fits 2019 Buick Encore, front left, outer assembly
- Fits 2016-2017 Buick Encore, front left, outer assembly
- Fits 2013-2014 Buick Encore, front left, outer assembly
- Fits 2018 Buick Encore, front left, outer assembly; ID ABJY
- Fits 2015 Buick Encore, front left, outer assembly; ID ABJY
- Fits 2016-2018 Buick Encore, front left, outer assembly
- Fits 2013-2014 Buick Encore, front left, outer assembly
- Fits 2015 Buick Encore, front left, outer assembly; ID ABJY
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. GM-8408 is a new replacement part built for the listed Buick Encore and Chevrolet Trax applications.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | Buick | Encore | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2020 | Buick | Encore | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2020 | Chevrolet | Trax | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2020 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2019 | Buick | Encore | FWD | — | — | — | Front Left | Outer assembly; CV Axle Shaft |
| 2019 | Chevrolet | Trax | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2019 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2018 | Buick | Encore | FWD | — | — | — | Front Left | Outer assembly; ID ABJY; CV Axle Shaft |
| 2018 | Buick | Encore | AWD | — | — | — | Front Left | Outer assemply; CV Axle Shaft |
| 2018 | Chevrolet | Trax | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2018 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2017 | Buick | Encore | FWD | — | — | — | Front Left | Outer assembly; CV Axle Shaft |
| 2017 | Buick | Encore | AWD | — | — | — | Front Left | Outer assemply; CV Axle Shaft |
| 2017 | Chevrolet | Trax | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2017 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2016 | Buick | Encore | FWD | — | — | — | Front Left | Outer assembly; CV Axle Shaft |
| 2016 | Buick | Encore | AWD | — | — | — | Front Left | Outer assemply; CV Axle Shaft |
| 2016 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2016 | Chevrolet | Trax | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2015 | Buick | Encore | FWD | — | — | — | Front Left | Outer assembly; ID ABJY; CV Axle Shaft |
| 2015 | Buick | Encore | AWD | — | — | — | Front Left | Outer assemply; ID ABJY; CV Axle Shaft |
| 2015 | Chevrolet | Trax | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2015 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2014 | Buick | Encore | FWD | — | — | — | Front Left | Outer assembly; CV Axle Shaft |
| 2014 | Buick | Encore | AWD | — | — | — | Front Left | Outer assemply; CV Axle Shaft |
| 2014 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2014 | Chevrolet | Trax | FWD | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
| 2013 | Buick | Encore | FWD | — | — | — | Front Left | Outer assembly; CV Axle Shaft |
| 2013 | Buick | Encore | AWD | — | — | — | Front Left | Outer assemply; CV Axle Shaft |
| 2013 | Chevrolet | Trax | AWD | — | — | — | Front Left | CV Axle Shaft |
| 2013 | Chevrolet | Trax | FWD | Automatic | 1.4L | L4 | Front Left | CV Axle Shaft |
