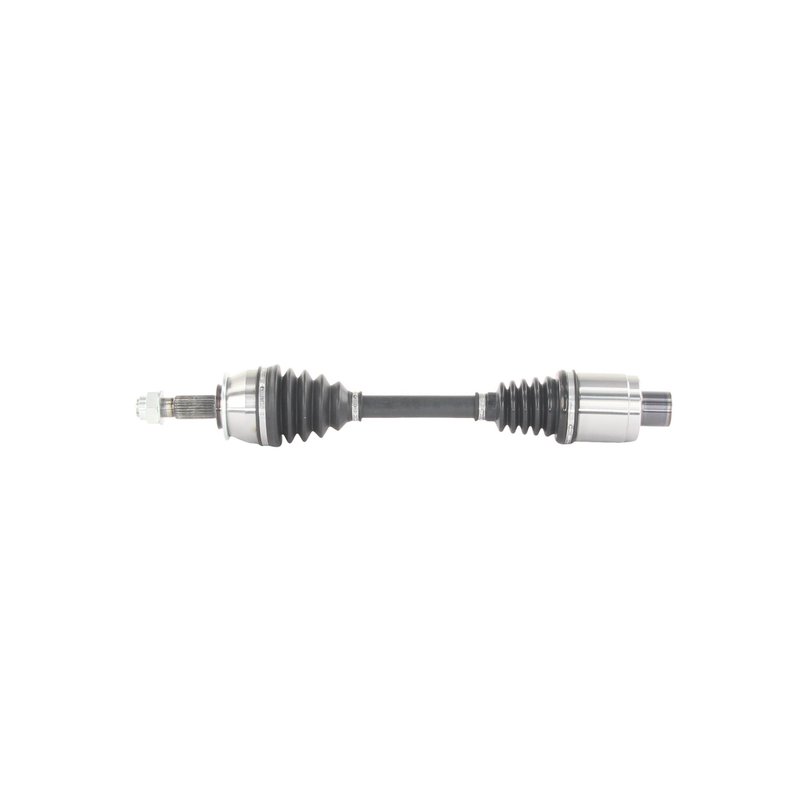

TrakMotive GM-8409 CV Axle Shaft - Front Right

TrakMotive CV Axle Shaft GM-8409 Overview

The TrakMotive CV Axle Shaft GM-8409 is designed specifically for Buick Encore and Chevrolet Trax models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Buick Encore and Chevrolet Trax
• New CV axle shaft with no ABS tone ring included
• Neoprene boot material for enhanced durability
• Hex head axle nut with stake locking type included
• Overall compressed length of 22.89 inches (581.5 mm)
• Inboard joint type: female with 34 splines
• Outboard joint type: conventional with 25 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable and precise replacement components for driveline and axle systems. This line emphasizes quality materials and accurate specifications to match OEM requirements, ensuring proper fit and function for vehicles like the Buick Encore and Chevrolet Trax. The GM-8409 part is a new axle shaft designed to meet these standards with a neoprene boot and spline-style shaft connections.

Technical Specifications and Features

The GM-8409 CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors. The inboard joint is a female type with 34 splines, while the outboard joint is conventional with 25 splines, both using spline shaft connection styles for secure fitment. The included axle nut has a hex head type measuring 1.42 inches (36 mm) across flats, with a height of 1.04 inches (26.5 mm) and a length of 1.64 inches (41.57 mm). The axle nut thread size is M24x1.5 with a stake locking mechanism to maintain secure installation. The overall compressed length of the axle shaft is 22.89 inches (581.5 mm), ensuring compatibility with the specified vehicle models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Buick Encore and Chevrolet Trax
• Resolves issues related to axle shaft joint wear or failure
• Addresses torn or leaking CV boots causing grease loss
• Eliminates axle vibration or clicking noises during turns
• Restores driveline stability and smooth power transfer

Installation Notes and Tips

When installing the TrakMotive GM-8409 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify spline alignment on both inboard and outboard connections for a secure fit. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Buick Encore and Chevrolet Trax models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8409 is a new, remanufactured-free component built to meet or exceed OEM standards. While specific warranty details are not provided, TrakMotive products typically undergo quality control inspections to ensure durability and fitment accuracy for Buick Encore and Chevrolet Trax vehicles.
