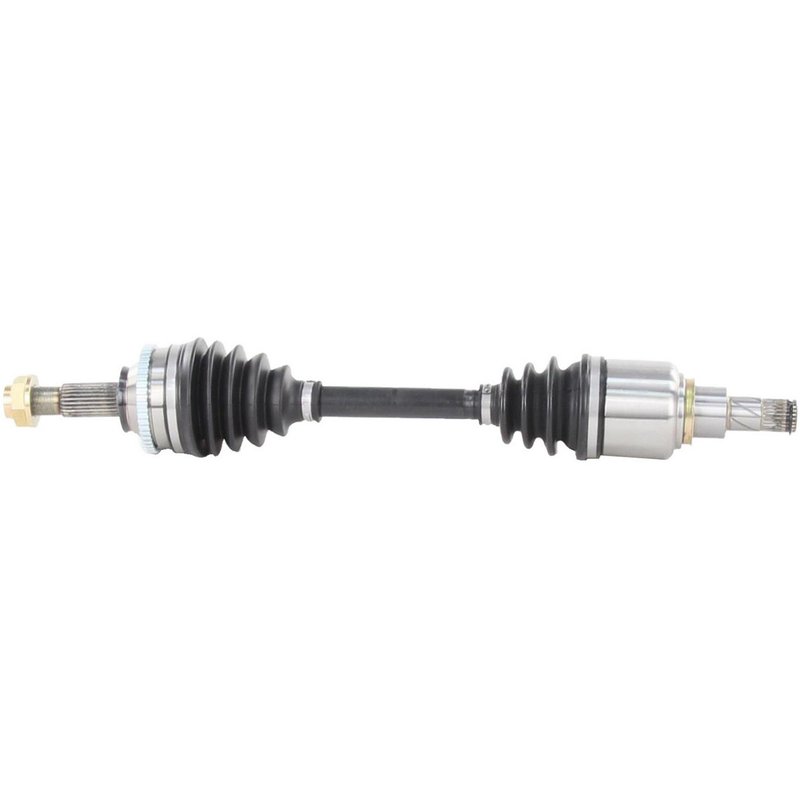

TrakMotive GM-8410 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8410 for Chevrolet Spark

The TrakMotive CV Axle Shaft GM-8410 is engineered specifically for Chevrolet Spark models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Chevrolet Spark vehicles
• New CV Axle Shaft with part number GM-8410
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut (M24*1.5 thread size)
• Overall compressed length of 22.91 inches (582 mm)
• Inboard and outboard spline connection styles with 25 splines each
• Stake locking type axle nut included

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft GM-8410 features a toothed ABS ring with 48 teeth, which is included to maintain proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, helping to protect the joint from contaminants. Both the inboard and outboard joints use spline connection styles with 25 splines each, ensuring secure and precise engagement with the drivetrain components. The axle nut included is a hex head type with a 1.4 inch (35.6 mm) hex size, 0.91 inch (23 mm) height, and a length of 1.62 inches (41.11 mm), featuring a stake locking mechanism to prevent loosening during operation.

The overall compressed length of the axle shaft is 22.91 inches (582 mm), matching the OEM specifications for Chevrolet Spark models requiring this part. The inboard joint is a male type, while the outboard joint is conventional, designed to provide smooth power transfer and accommodate suspension movement.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering reliable and precise replacement CV components for various vehicle applications. This line emphasizes quality materials and accurate fitment, such as the neoprene boots and ABS tone rings included with the GM-8410, to maintain vehicle safety systems and driveline integrity. The CV Axle Shaft series is designed to meet or exceed OEM standards, making it a suitable choice for Chevrolet Spark owners seeking dependable driveline repairs.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chevrolet Spark
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft GM-8410, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boots for any damage during installation to ensure long-term protection. Use appropriate tools for spline engagement to avoid damaging the shaft or joints.

Quality Assurance and Warranty

This CV Axle Shaft is a new, remanufactured-free component designed to meet OEM fit and function standards. TrakMotive products undergo quality control inspections to ensure durability and performance. Warranty coverage details should be confirmed with the product provider or manufacturer documentation.
