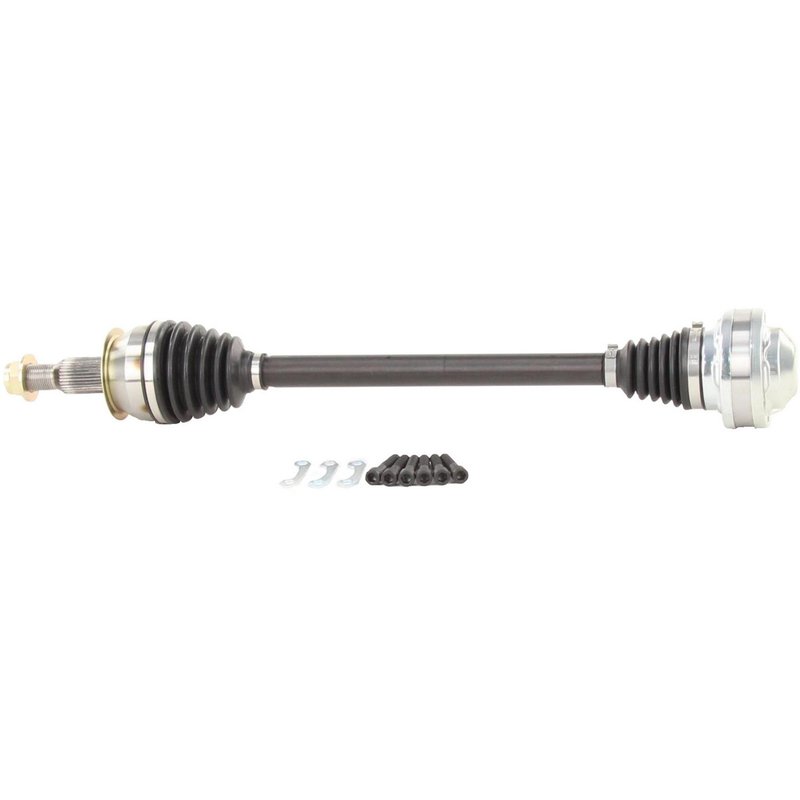

TrakMotive GM-8416 CV Axle Shaft - Rear Right

CV Axle Shaft for Camaro

This TrakMotive CV axle shaft, part number GM-8416, is built for rear right fitment on select Chevrolet Camaro applications. It is a new axle assembly with a bolt-on inboard connection, a spline outboard connection, and a neoprene boot for drivetrain service.

Key Features

• Fits 2016-2017 Chevrolet Camaro, rear right.
• New CV axle shaft for driveline replacement service.
• Neoprene boot material for the axle boot assembly.
• Includes a self-locking axle nut with hex head design.
• 33 outboard splines and a bolt-on inboard joint connection.
• No ABS tone ring included.

Detailed Description

TrakMotive GM-8416 is a direct replacement CV axle shaft for rear right applications on the Chevrolet Camaro. The assembly uses a conventional outboard joint, a bolt-on inboard joint, and a 28.82-inch compressed length to match the specified driveline layout. The included axle nut uses an M27 x 2 thread, a 32.8 mm hex size, and a self-locking design for secure fastening. TrakMotive identifies this axle as a new unit, and the boot is made from neoprene for standard CV joint protection. This part cross-references GM 22972607 for the same application.

What It Is Used For

• Restoring drivetrain function when a CV axle is worn or damaged.
• Addressing clicking, vibration, or binding from a failing axle assembly.
• Replacing a unit with damaged boot material or joint wear.
• Correcting fitment issues on rear right Camaro driveline service.

Installation Notes and Tips

Verify rear right fitment before installation and confirm axle nut thread size, spline count, and compressed length against the original part. The product is listed for non-ABS applications unless otherwise noted, and no ABS tone ring is included. Use the supplied axle nut and follow the vehicle service procedure for torque and final inspection.

Quality Assurance

TrakMotive lists this CV axle shaft as a new replacement part and states a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
