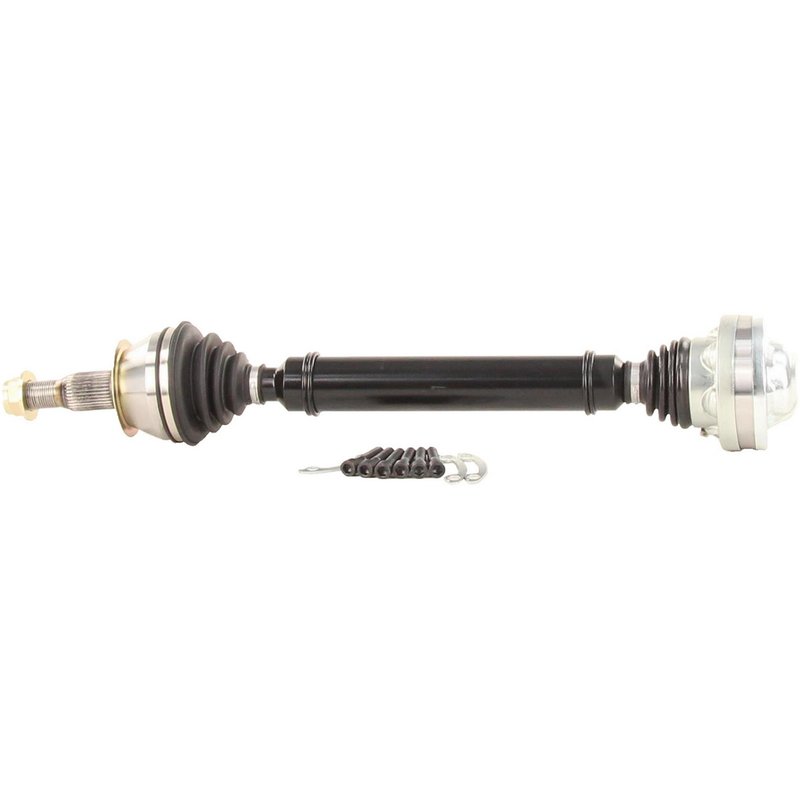

TrakMotive GM-8420 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-8420 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.87 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.29 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.49 |
| Axle Nut Length (mm) | 37.87 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 0.31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.36 |
| Inboard Bolt Length (mm) | 60 |
| Inboard Bolt Thread Size | M10*1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.32 |
| Overall Compressed Length (mm) | 694 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet · 3 vehicles |
OE direct replacement. New CV axle shaft with bolt-on inboard connection for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Self-lock axle nut. Includes a locking nut for secure fastening.
Cross-references TrakMotive GM-8420 for the same application. See all 1.
Rear Left CV Axle Shaft for Camaro
TrakMotive GM-8420 is a new CV axle shaft for the rear left position on 2016-2018 Chevrolet Camaro models. It is built for direct replacement service with the correct spline count, bolt-on inboard connection, and included axle nut for a precise driveline repair.
Key Features
- Fits 2016-2018 Chevrolet Camaro, rear left
- TrakMotive CV Axle Shaft, part number GM-8420
- New axle assembly with conventional outboard joint type
- Bolt-on inboard joint and shaft connection style
- 33 outboard splines for application-specific fitment
- Neoprene boot material for driveline protection
- Axle nut included with self-lock design, M27 x 2 thread
- No ABS tone ring included
- Overall compressed length: 27.32 in. (694 mm)
Product Details
This TrakMotive CV axle shaft is engineered for the rear left side of the Chevrolet Camaro and matches the application with a 6-bolt inboard joint, Allen-head inboard bolts, and a spline-style outboard shaft connection. The GM-8420 part number is a direct reference for shoppers searching for a rear left Camaro CV axle shaft, Chevrolet Camaro rear axle replacement, or GM-8420 driveline component. TrakMotive positions the CV Axle Shaft line as a new replacement solution backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores drivetrain connection after a worn or damaged rear CV axle
- Addresses clicking, vibration, or binding from a failing axle assembly
- Replaces a leaking or torn axle boot assembly
- Corrects driveline noise caused by worn joints or spline wear
- Supports repair of rear left axle issues on 2016-2018 Chevrolet Camaro models
Installation Notes
Verify rear left fitment before installation and confirm axle nut thread size, bolt pattern, and compressed length against the original part. The axle nut is included; ABS tone ring is not included. Because this axle uses a bolt-on inboard connection, follow factory service procedures for bolt torque, fastener replacement guidance, and final inspection after installation.
Quality Assurance
TrakMotive GM-8420 is a new CV axle shaft from a company certified to ISO 9001:1007 and TS 16949:2009 standards. The manufacturer states a limited lifetime warranty for this product line.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Chevrolet | Camaro | 6.2L | V8 | Rear Left | CV Axle Shaft |
| 2017 | Chevrolet | Camaro | 6.2L | V8 | Rear Left | CV Axle Shaft |
| 2016 | Chevrolet | Camaro | 6.2L | V8 | Rear Left | CV Axle Shaft |
