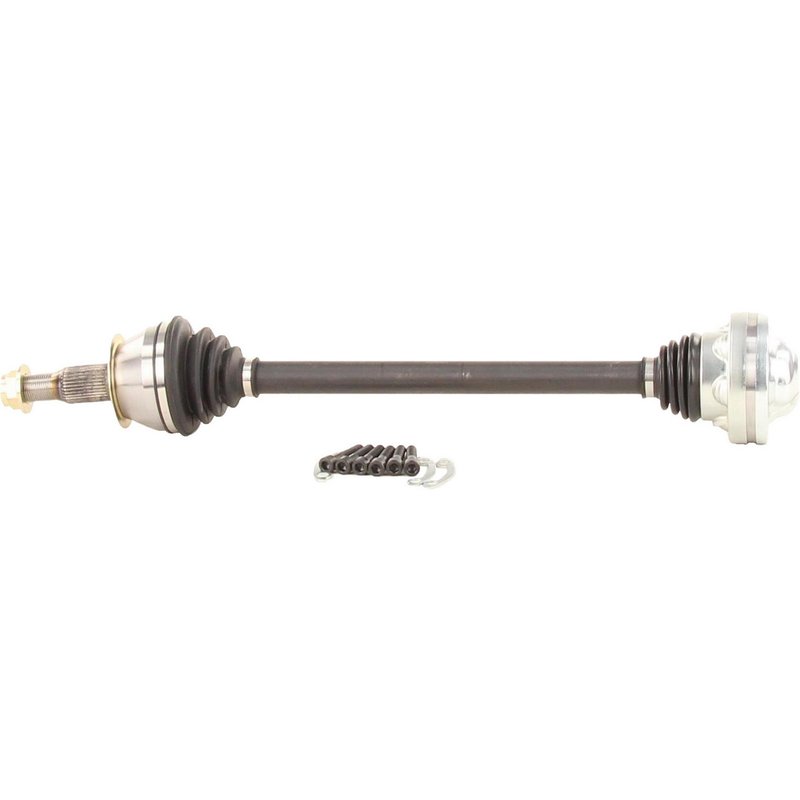

TrakMotive GM-8421 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft GM-8421 for Chevrolet Camaro

The TrakMotive CV Axle Shaft GM-8421 is designed specifically for Chevrolet Camaro models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Chevrolet Camaro
• Part Number: GM-8421
• Includes self-locking hex axle nut (M27*2 thread size)
• Neoprene boot material for durability
• Bolt-on inboard joint with 6 bolt holes
• Overall compressed length: 28.72 inches (729.5 mm)
• Outboard joint type: Conventional with 33 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, direct-fit CV axle components engineered for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and precise bolt-on connections to ensure proper fit and function. The GM-8421 model is part of this line, offering a reliable replacement axle shaft for Chevrolet Camaro driveline systems.

Technical Specifications and Features

The GM-8421 CV axle shaft features a hex head axle nut measuring 1.29 inches (32.8 mm) across flats and 0.87 inches (22 mm) in height, with a self-locking design to maintain secure installation. The axle nut length is 1.49 inches (37.87 mm), and the thread size is M27*2. The inboard joint uses a bolt-on style with six M10*1.25 threaded bolts, each 2.36 inches (60 mm) long, secured by 8 mm Allen head bolts. The outboard joint connects via a conventional spline with 33 splines, ensuring compatibility with the Camaro’s drivetrain. The neoprene boot protects the joint from contaminants and wear, extending service life.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chevrolet Camaro
• Resolves issues with axle vibration or clicking noises during turns
• Addresses grease leakage from torn or degraded CV boots
• Restores proper driveline function after axle shaft failure
• Improves vehicle stability and power transfer efficiency

Installation Notes and Tips

Installation of the TrakMotive GM-8421 CV axle shaft requires proper torque specifications for the self-locking hex axle nut and inboard bolts. Use an 8 mm Allen wrench for the inboard joint bolts and a 32.8 mm socket for the axle nut. Ensure the axle shaft is fully seated in the transmission and wheel hub splines before tightening. Verify that the neoprene boot is properly positioned to prevent contamination. Professional installation is recommended to maintain driveline integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM specifications for Chevrolet Camaro vehicles. The use of durable neoprene boots and precision-machined joints supports long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for quality and performance.
