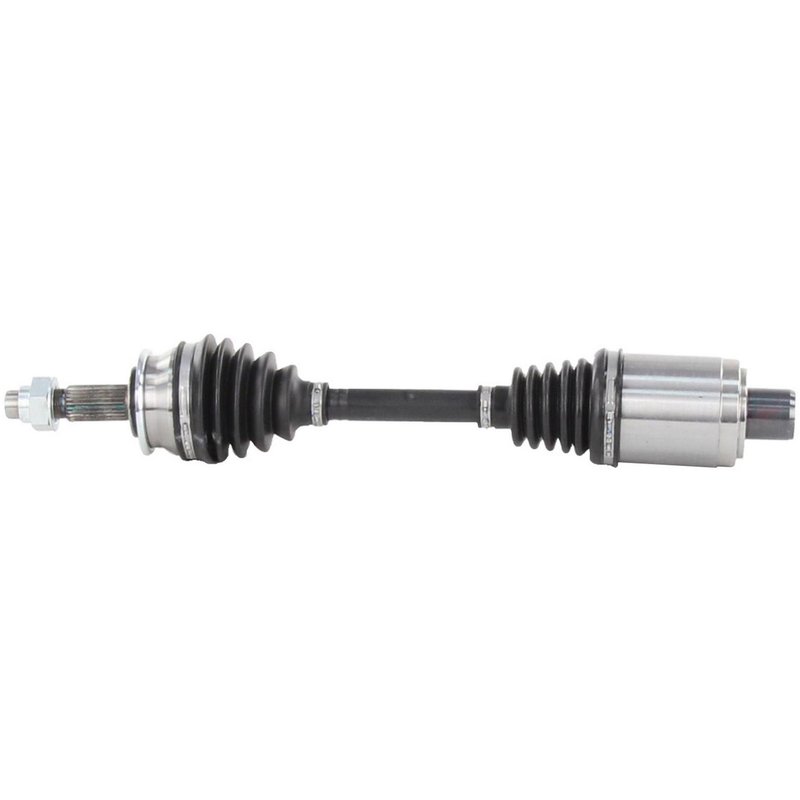

TrakMotive GM-8442 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8442 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.04 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.64 |
| Axle Nut Length (mm) | 41.57 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.3 |
| Overall Compressed Length (mm) | 541 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet · 8 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps protect the joint with durable, flexible material.
Includes axle nut. Ready with the nut needed for installation.
Cross-references TrakMotive GM-8442 and 95262211 for the same application. See all 2.
Front Right CV Axle Shaft for Sonic
Restore driveline performance with this TrakMotive AAR CV Axle Shaft, part number GM-8442. It is a new front right axle assembly for 2012-2019 Chevrolet Sonic applications and is built with the fitment and connection details needed for a direct replacement.
Key Features
- Fits 2012-2019 Chevrolet Sonic, front right
- TrakMotive AAR CV Axle Shaft, part number GM-8442
- New replacement axle shaft for driveline service
- Female inboard joint with spline shaft connection
- Conventional outboard joint design
- 34 inboard splines and 25 outboard splines
- Neoprene boot material
- Includes axle nut with M24 x 1.5 thread, 36 mm hex size, and stake locking type
- No ABS tone ring included
Product Details
The TrakMotive AAR CV Axle Shaft GM-8442 is built for Chevrolet Sonic front right applications from 2012 through 2019. It measures 21.3 inches overall compressed length and uses a female inboard joint, spline-style shaft connections, and a conventional outboard joint. The axle is supplied new, with a neoprene boot and included axle nut for the specified fitment. TrakMotive identifies this part as an AAR CV axle shaft, and the GM-8442 reference also cross-references 95262211 for the same application.
Common Issues This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play in the front right driveline assembly
- Loss of smooth power transfer to the wheel
Installation Notes
Verify front right fitment by matching the vehicle year, model, and spline and nut specifications before installation. Confirm the axle nut thread size, hex size, and locking style against the original component. Because ABS tone ring is not included, compare the vehicle’s original ABS setup before ordering. Professional installation and a final road test are recommended after replacement.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement component in an ISO 9001:1007 and TS 16949:2009 certified facility. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Chevrolet | Sonic | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
