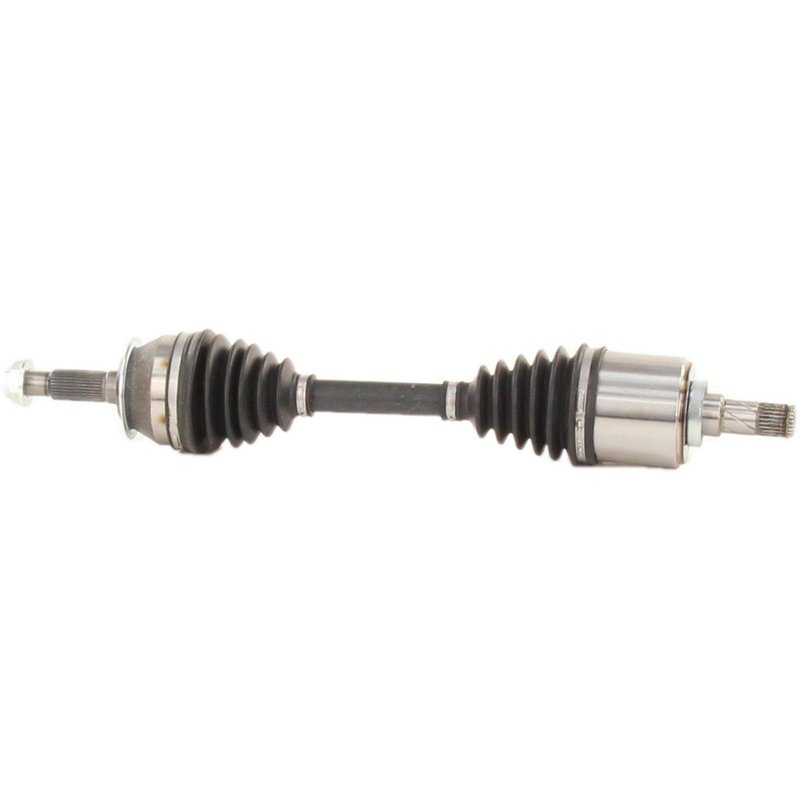

TrakMotive GM-8453 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8453 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.74 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.21 |
| Overall Compressed Length (mm) | 615 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet · 2 vehicles |
OE-style replacement. New CV axle shaft with a spline connection for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with a self-locking hex nut for a complete install.
Cross-references TrakMotive GM-8453 and 39092969 for the same application. See all 2.
TrakMotive GM-8453 CV Axle Shaft
The TrakMotive AAR CV Axle Shaft GM-8453 is a new front left driveline replacement for select Chevrolet Cruze models. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint for direct service on the listed application.
Compatible with 2017-2018 Chevrolet Cruze, front left, this CV axle shaft is supplied with a self-lock axle nut and is engineered for the specified OE-style fitment. The TrakMotive GM-8453 is a practical replacement for restoring driveline function on the Chevrolet Cruze front left position.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: GM-8453
- New CV axle shaft for front left installation
- Neoprene boot material for driveline protection
- Inboard joint type: male
- Inboard shaft connection style: spline
- Outboard joint type: conventional
- Outboard shaft connection style: spline
- Includes axle nut with self-lock design
- No ABS tone ring included
- Overall compressed length: 24.21 in. (615 mm)
Product Details
The TrakMotive AAR CV Axle Shaft line focuses on replacement axle assemblies for driveline service. This GM-8453 unit uses 25 inboard splines and 33 outboard splines, with a 1.25 in. hex axle nut and M22 x 1.5 thread size. It is listed for 2017-2018 Chevrolet Cruze front left applications and is identified as an updated design for that vehicle fitment. The part number GM-8453 also cross-references 39092969 for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline play caused by spline or joint wear
- Loss of smooth power transfer to the front left wheel
Installation Notes
Verify front left fitment before installation on 2017-2018 Chevrolet Cruze models. Confirm spline count, axle nut thread size, and compressed length against the removed part. The included axle nut is a self-lock style; follow the vehicle service procedure for torque and final inspection. ABS tone ring is not included.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new component from an ISO 9001:1007 and TS 16949:2009 certified company. The GM-8453 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Chevrolet | Cruze | Manual | DIESEL | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Chevrolet | Cruze | Manual | DIESEL | Front Left | Updated Design; AAR CV Axle Shaft |
