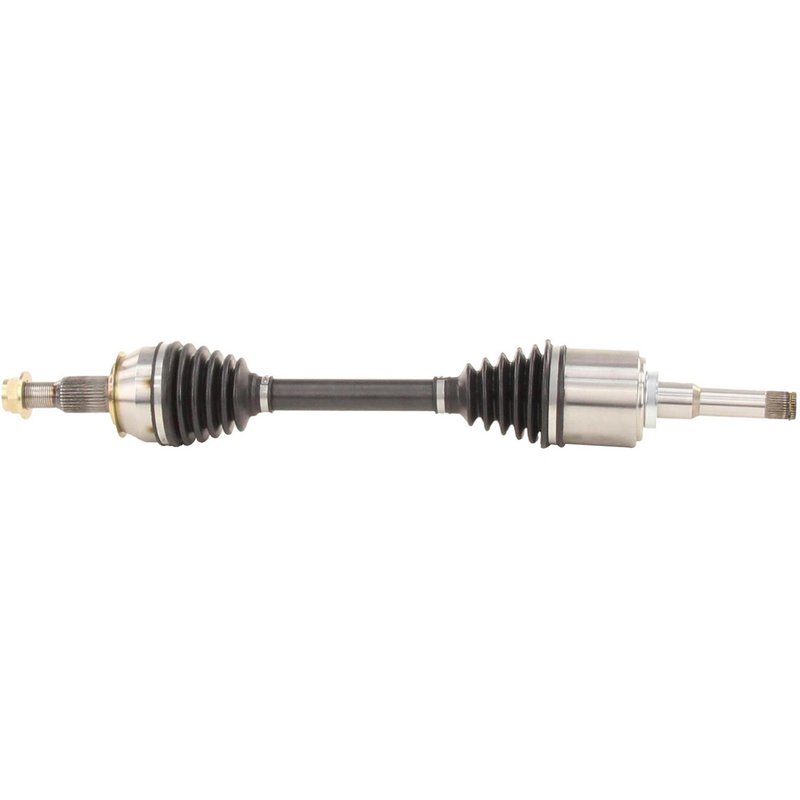

TrakMotive GM-8470 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8470 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.87 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.29 |
| Axle Nut Hex Size (mm) | 32.799999999999997 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.49 |
| Axle Nut Length (mm) | 37.869999999999997 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.07 |
| Overall Compressed Length (mm) | 713 |
| Product line | AAR CV Axle Shaft |
| Fits | GMC · 3 vehicles |
New CV axle shaft. Fresh replacement part for driveline and axle service.
Neoprene boot. Durable material helps protect the joint from wear.
Spline connections. 34 inboard and 33 outboard splines for secure engagement.
Cross-references TrakMotive GM-8470 for the same application. See all 1.
TrakMotive GM-8470 Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft GM-8470 is a new front left axle assembly for select GMC Acadia applications. It is built with a neoprene boot, spline-style shaft connections, and a self-lock axle nut to support dependable driveline operation in the specified fitments.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: GM-8470
- New CV axle shaft for front left position
- Fits 2018-2019 GMC Acadia, front left
- Fits 2017 GMC Acadia, front left, VIN Z (11th digit)
- Neoprene boot material for driveline protection
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard shaft connection: spline, 34 inboard splines
- Outboard shaft connection: spline, 33 outboard splines
- Overall compressed length: 28.07 in (713 mm)
- Axle nut included with hex head, self-lock design, M27x2 thread
- ABS tone ring not included
Product Details
TrakMotive GM-8470 is an OE-style replacement CV axle shaft for the front left side of select GMC Acadia models. The AAR CV Axle Shaft line focuses on application-specific driveline fitment, and this unit is configured for the listed 2017 and 2018-2019 Acadia applications. It uses a neoprene boot and spline connections at both ends, with a male inboard joint and conventional outboard joint for the specified vehicle coverage. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping during turns from a worn front axle assembly
- Vibration or shudder from driveline wear
- Torn axle boot conditions that can expose internal components
- Loss of smooth power transfer to the front wheel
- Fitment issues when replacing the front left axle on a GMC Acadia
Installation Notes
Verify the vehicle’s year, model, position, and VIN note before ordering. This axle is listed for the front left side only, with 2017 GMC Acadia coverage limited to VIN Z (11th digit). Confirm axle nut thread size, spline count, and overall length against the original part before installation. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the manufacturer.
Quality Assurance
TrakMotive states that this part is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for the GM-8470 CV axle shaft.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | GMC | Acadia | 2.5L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | GMC | Acadia | 2.5L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | GMC | Acadia | 2.5L | L4 | Front Left | Updated Design; VIN Z (11th Digit); AAR CV Axle Shaft |
