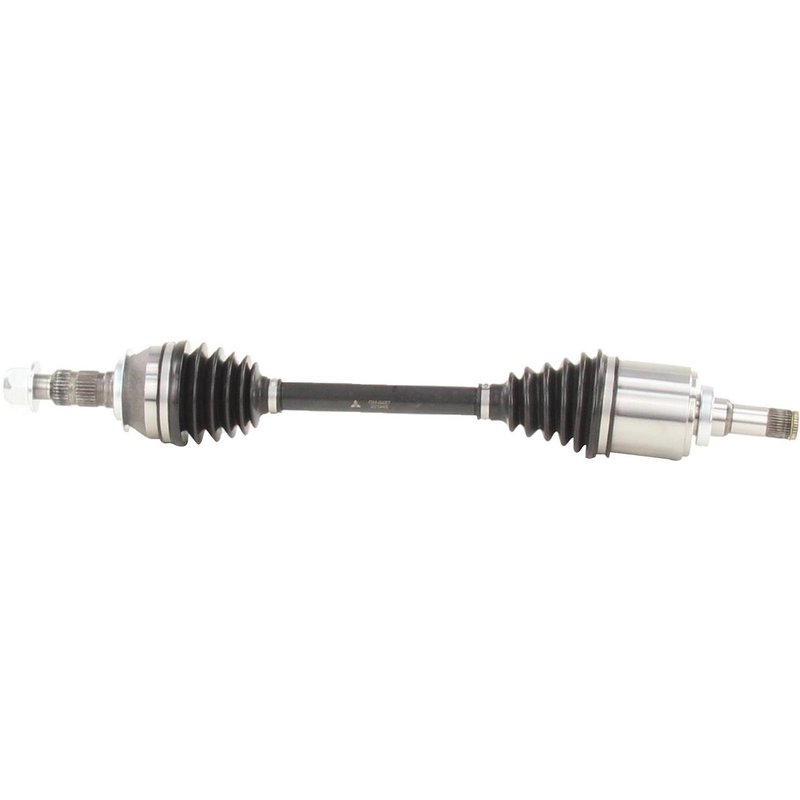

TrakMotive GM-8487 CV Axle Shaft - Front Left

TrakMotive GM-8487 Front Left CV Axle Shaft

The TrakMotive AAR CV Axle Shaft GM-8487 is a new front left axle assembly for select Chevrolet Malibu applications. It is built for 2019-2023 Chevrolet Malibu models with OE AAR design coverage, giving buyers a direct replacement option for driveline service on the front left side.

Key Features

• Part number GM-8487 for easy identification
• Front left CV axle shaft for Chevrolet Malibu applications
• New construction, not remanufactured
• Male inboard joint with spline shaft connection
• Conventional outboard joint with spline shaft connection
• 34 inboard splines and 30 outboard splines
• Neoprene boot material for CV joint protection
• Includes axle nut with self-lock design
• No ABS tone ring included
• Overall compressed length: 25.35 in. (644 mm)

Product Details

TrakMotive GM-8487 is part of the AAR CV Axle Shaft line, a product line focused on OE-style driveline replacement for specific vehicle applications. This axle is engineered for the front left position on the Chevrolet Malibu and is listed for 2019-2020 Malibu models with updated design coverage and 2021-2023 Malibu models with OE AAR design coverage. The axle uses a hex-head axle nut with M24 x 1.5 thread size, 31.8 mm hex size, and self-locking retention. TrakMotive GM-8487 is a practical replacement choice when servicing worn CV joints, damaged boots, or axle vibration concerns on a Chevrolet Malibu front left driveline.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Axle Can Help Fix

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged axle shaft
• Torn CV boot conditions that can lead to grease loss and joint wear
• Front left driveline noise on Chevrolet Malibu models
• Axle replacement needs after impact or component fatigue

Installation Notes and Tips

Verify spline count, compressed length, and axle nut thread size before installation. Confirm whether the vehicle uses ABS-specific hardware, since this axle does not include an ABS tone ring and ABS axles fit non-ABS applications unless otherwise noted. Inspect the hub, seals, and surrounding suspension components during service to help prevent repeat axle issues. Use the included axle nut and follow the vehicle manufacturer’s torque specifications during installation.

Quality Assurance

TrakMotive states that this axle is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for driveline components.
