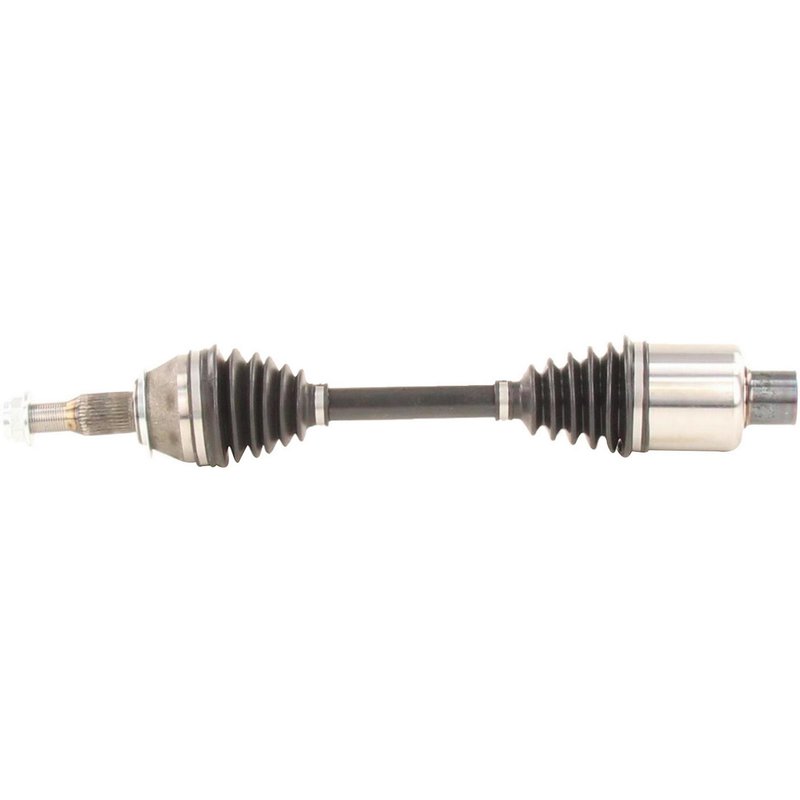

TrakMotive GM-8488 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8488 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.87 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.29 |
| Axle Nut Hex Size (mm) | 32.799999999999997 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.49 |
| Axle Nut Length (mm) | 37.869999999999997 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.17 |
| Overall Compressed Length (mm) | 614 |
| Product line | AAR CV Axle Shaft |
| Fits | Buick, Chevrolet, and GMC · 15 vehicles |
New replacement part. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Spline connections. 27 inboard and 33 outboard splines for secure engagement.
Cross-references TrakMotive GM-8488 and 84070178 for the same application. See all 2.
Front Right CV Axle Shaft for Traverse, Enclave, Acadia, and Blazer
TrakMotive GM-8488 is a new CV axle shaft for front right applications on select Chevrolet, Buick, and GMC vehicles. It is built with a neoprene boot, spline-style shaft connections, and a self-lock axle nut to support a direct replacement for worn or damaged driveline components.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8488
- Front right position
- New construction
- Neoprene boot material
- Inboard joint type: female
- Inboard shaft connection style: spline
- Outboard joint type: conventional
- Outboard shaft connection style: spline
- Axle nut included with self-lock design
- Axle nut thread size: M27*2
- Overall compressed length: 24.17 in. (614 mm)
- No ABS tone ring included
Product Details
TrakMotive GM-8488 is a CV axle shaft for front right driveline service on 2018-2020 Buick Enclave, 2018-2020 Chevrolet Traverse, 2019 Chevrolet Blazer, 2021-2023 Buick Enclave, 2021-2024 Chevrolet Traverse, and 2024 GMC Acadia. This axle uses 27 inboard splines and 33 outboard splines, with a 32.8 mm axle nut hex size and a 22 mm axle nut height. The GM-8488 part number is also referenced under interchange 84070178 for the same application.
As part of TrakMotive’s CV Axle Shaft line, this component is built for replacement service where the original axle has worn joints, damaged boots, or spline-related driveline issues. The listed fitment includes Chevrolet Traverse, Buick Enclave, GMC Acadia, and Chevrolet Blazer front right applications, making GM-8488 a direct-match option for common front axle service on these platforms.
Common Repair Uses
- Restores driveline operation after a clicking or binding CV joint
- Addresses torn boot damage that can lead to grease loss and contamination
- Replaces a worn front right axle with spline or joint wear
- Helps correct vibration or noise from a failing axle assembly
- Supports repair after axle nut or shaft connection damage
Installation Notes
Before installation, verify front right fitment by year, make, model, and axle configuration. When replacing a CV axle on 2021-2024 Chevrolet Traverse, 2024 GMC Acadia, and 2021-2023 Buick Enclave applications, inspect the intermediate shaft for damage and replace it if necessary. Confirm axle nut thread size, spline count, and overall compressed length against the original part before assembly.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. ABS axles fit non-ABS applications unless otherwise noted. This part cross-references 84070178 for the same application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Chevrolet | Traverse | AWD | 2.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2024 | GMC | Acadia | AWD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2023 | Buick | Enclave | 4WD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2023 | Chevrolet | Traverse | 4WD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Buick | Enclave | 4WD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Chevrolet | Traverse | 4WD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Buick | Enclave | 4WD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Chevrolet | Traverse | 4WD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Buick | Enclave | AWD | — | — | Front Right | CV Axle Shaft |
| 2020 | Chevrolet | Traverse | 4WD | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2019 | Buick | Enclave | AWD | — | — | Front Right | CV Axle Shaft |
| 2019 | Chevrolet | Blazer | AWD | — | — | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Chevrolet | Traverse | 4WD | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2018 | Buick | Enclave | AWD | 3.6L | V6 | Front Right | CV Axle Shaft |
| 2018 | Chevrolet | Traverse | 4WD | 3.6L | V6 | Front Right | CV Axle Shaft |
