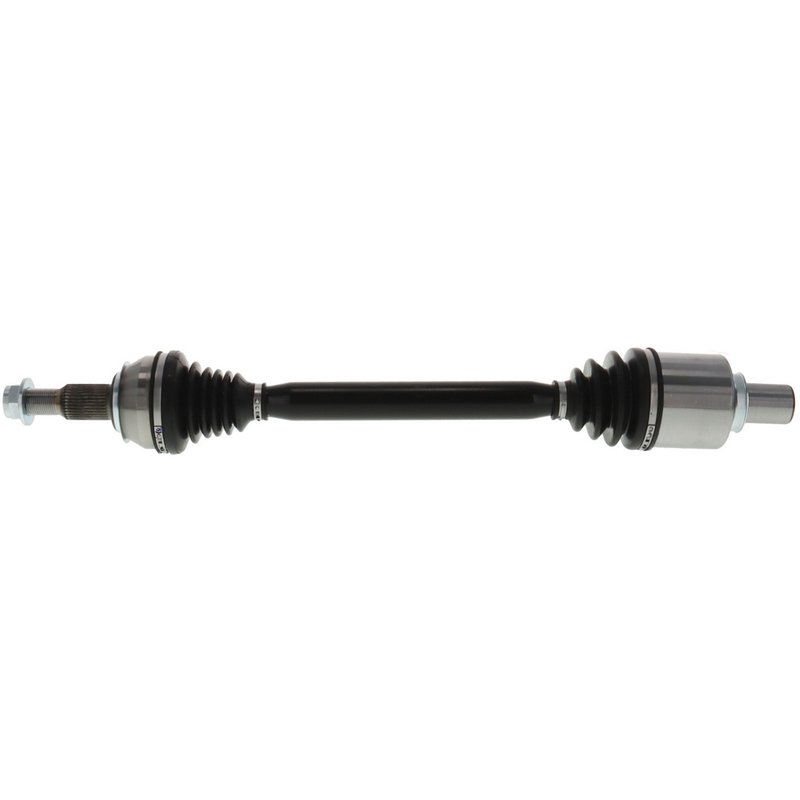

TrakMotive GM-8505 CV Axle Shaft - Rear
| Brand | TrakMotive GM-8505 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 33 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Length (mm) | 38 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 33 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 41 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.06 |
| Overall Compressed Length (mm) | 738 |
| Overall Extended Length (in) | 31.18 |
| Overall Extended Length (mm) | 792 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet · 2 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Neoprene boots. Help protect the joints from dirt and moisture.
Self-lock axle nut. Included for a secure, ready-to-install setup.
Cross-references TrakMotive GM-8505, 20977318 and NCV10146 for the same application. See all 3.
Rear CV Axle Shaft for Corvette
TrakMotive GM-8505 is a rear CV axle shaft for the 2014-2015 Chevrolet Corvette. It is built as an OEM-style axle to help maintain original ride quality while restoring driveline function in a precise rear application.
- Fits 2014-2015 Chevrolet Corvette, rear
- OEM-style AAR CV axle shaft for rear driveline service
- Premium grade construction
- Neoprene inboard and outboard joint boots
- Female inboard joint with spline connection
- Conventional outboard joint design
- Includes axle nut with self-locking design
- ISO 9001:2008 and TS 16949:2009 certified manufacturing
Product Details
GM-8505 is engineered for the rear of the Chevrolet Corvette and uses a 41-spline inboard connection with a 33-spline outboard connection. The axle measures 29.06 inches compressed and 31.18 inches extended, with a 33 mm axle nut hex size and M27x2 thread size. TrakMotive GM-8505 cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.
Common Repair Uses
- Restores rear axle operation after CV joint wear
- Addresses clicking, vibration, or driveline noise from a worn axle shaft
- Replaces a damaged or leaking CV boot assembly
- Corrects axle-related play in the rear driveline
- Supports service on 2014-2015 Chevrolet Corvette rear axle applications
Installation Notes
Confirm rear fitment before installation and verify spline count, compressed length, and axle nut specifications against the original part. This axle includes an axle nut; ABS tone ring is not included, and the axle is listed with 0 ABS ring tooth count. Use proper torque procedures during installation and inspect related seals, hubs, and suspension components before returning the vehicle to service.
Quality Assurance
TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The part is produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for Chevrolet Corvette rear axle service.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Chevrolet | Corvette | Automatic | Rear | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
| 2014 | Chevrolet | Corvette | Automatic | Rear | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
