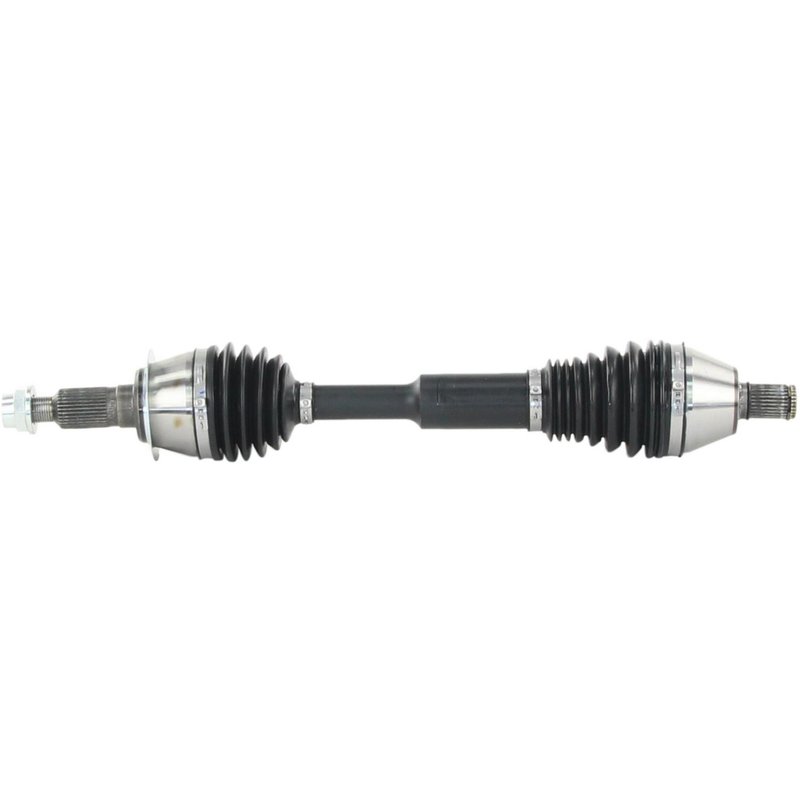

TrakMotive GM-8545XTT CV Axle Shaft - Front

Extended Travel CV Axle for GM Front Applications

TrakMotive GM-8545XTT is an extended travel CV axle shaft built for select front applications on Chevrolet, GMC, and Cadillac full-size trucks and SUVs. It uses a sliding center bar to provide more suspension travel than a standard OE-style shaft, while the CV joints allow greater articulation for lifted or modified front-end geometry.

Key Features

• Extended Travel CV Axle Shaft from TrakMotive
• Sliding center bar provides up to 44 mm more travel than an OEM CV shaft
• CV joint articulation reaches up to 47 degrees versus a typical 23-degree OE joint
• Premium-grade construction with thermoplastic joint boots
• Front axle design with 28 inboard splines and 33 outboard splines
• Includes axle nut with M24x2 thread, 36 mm hex, and self-locking design
• No ABS tone ring included

Product Details

The TrakMotive Extended Travel CV Axle Shaft line is engineered for front driveline service where additional suspension movement is needed. GM-8545XTT is a direct-fit CV axle shaft for select 2019-2023 Chevrolet Silverado 1500, Chevrolet Tahoe, Cadillac Escalade, Cadillac Escalade ESV, GMC Sierra 1500, GMC Yukon, and GMC Yukon XL front applications. This part cross-references Monroe Shocks & Struts (e.g., NCV10187XDP) for the same application.

Built with a male inboard joint, conventional outboard joint, and spline-to-spline shaft connections, GM-8545XTT is sized at 24.69 inches compressed and 27.05 inches extended. The thermoplastic boots and premium-grade construction support consistent operation in demanding front suspension setups, including vehicles that need additional axle plunge and joint angle capacity.

What It Helps Address

• Front axle binding caused by increased suspension travel
• CV joint angle issues on lifted or modified front suspensions
• Axle plunge limitations during suspension droop and compression
• Noise or vibration related to worn front CV axle shafts
• Replacement needs on select Chevrolet Tahoe, GMC Yukon, and Silverado 1500 front driveline systems

Installation Notes and Fitment

• Fits 2021-2023 Chevrolet Tahoe, front; always replace in pairs; extended travel CV axle shaft
• Fits 2021-2023 GMC Yukon, front; always replace in pairs; extended travel CV axle shaft
• Fits 2021-2023 GMC Yukon XL, front; always replace in pairs; extended travel CV axle shaft
• Fits 2021-2023 GMC Sierra 1500, front; Silao, Mexico plant (opt MSL); extended travel CV axle shaft
• Fits 2022-2023 Chevrolet Silverado 1500, front; always replace in pairs; extended travel CV axle shaft
• Fits 2021 Cadillac Escalade, front; always replace in pairs; extended travel CV axle shaft
• Fits 2021 Cadillac Escalade ESV, front; always replace in pairs; extended travel CV axle shaft
• Fits 2020-2021 Chevrolet Silverado 1500, front; opt FWI or MSL (Fort Wayne, IN or Silao Mexico plant); extended travel CV axle shaft
• Fits 2020-2021 GMC Sierra 1500, front; opt FWI or MSL (Fort Wayne, IN or Silao Mexico plant); extended travel CV axle shaft
• Fits 2019 Chevrolet Silverado 1500, front; New Style (Mirrors Mount on Door Skin); extended travel CV axle shaft
• Fits 2019 GMC Sierra 1500, front; Standard Duty Replacement; extended travel CV axle shaft

Verify spline count, axle nut specification, and vehicle build details before installation. GM-8545XTT is a front CV axle shaft for select Chevrolet Silverado 1500, GMC Sierra 1500, and GMC Yukon applications where extended travel is required.

Quality Assurance

TrakMotive positions this part in its Premium grade driveline lineup and designs the Extended Travel CV Axle Shaft series around increased articulation and travel capacity for demanding front suspension use.
