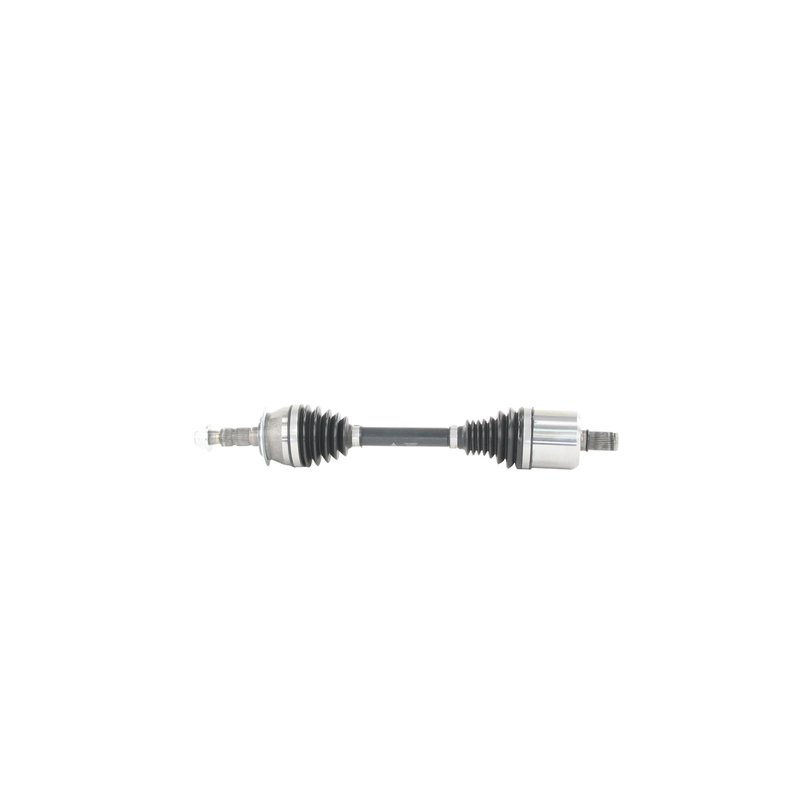

TrakMotive GM-86002 CV Axle Shaft - Front
| Brand | TrakMotive GM-86002 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.83 |
| Overall Compressed Length (mm) | 555 |
| Overall Extended Length (in) | 23.72 |
| Overall Extended Length (mm) | 603 |
| Product line | AAR CV Axle Shaft |
| Fits | Chevrolet · 7 vehicles |
Premium grade. A replacement CV axle shaft built to a higher spec.
Thermoplastic boots. Durable boot material helps protect the joints.
Included axle nut. Comes with a self-locking nut for easier installation.
Cross-references TrakMotive GM-86002 and 42437963 for the same application. See all 2.
Front CV Axle Shaft for Bolt EV and Bolt EUV
TrakMotive GM-86002 is a front CV axle shaft for select Chevrolet Bolt EV and Bolt EUV applications. It is built as an OE AAR design replacement with premium-grade construction for driveline service on the front axle.
The TrakMotive AAR CV Axle Shaft line focuses on application-specific fit and OE-style geometry. For this Chevrolet Bolt EV / Bolt EUV front axle application, GM-86002 follows the original AAR design and includes a self-lock axle nut for the listed fitments.
- Front CV axle shaft for select Chevrolet Bolt EV and Bolt EUV models
- OE AAR design replacement
- Premium grade construction
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Thermoplastic boot material on inboard and outboard joints
- Axle nut included; M22x1.5 thread, 32 mm hex size, self-lock design
- ABS tone ring not included; ABS ring tooth count: 0
GM-86002 is a direct-fit driveline service part for front axle repair on the Chevrolet Bolt EV and Chevrolet Bolt EUV. It uses 34 inboard splines and 33 outboard splines, with an overall compressed length of 555 mm and an overall extended length of 603 mm. This part cross-references 42437963 for the same application.
Common Repair Uses
- Restoring front-wheel drive torque transfer after CV axle wear
- Addressing clicking or popping noises during turns
- Replacing a damaged axle shaft with spline or boot wear
- Correcting vibration caused by a worn front driveline component
- Servicing a front axle on a Chevrolet Bolt EV or Bolt EUV
Installation Notes
Verify spline counts, compressed length, and axle nut specifications before installation. GM-86002 is listed for front position applications on 2017-2021 Chevrolet Bolt EV and 2022-2023 Chevrolet Bolt EUV. ABS axles fit non-ABS applications unless otherwise noted, and this part does not include an ABS tone ring.
Quality Assurance
TrakMotive states this AAR CV Axle Shaft is produced by an ISO 9001:2008 and TS 16949:2009 certified company and is backed by a limited lifetime warranty.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Chevrolet | Bolt EUV | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2022 | Chevrolet | Bolt EUV | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2021 | Chevrolet | Bolt EV | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2020 | Chevrolet | Bolt EV | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2019 | Chevrolet | Bolt EV | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2018 | Chevrolet | Bolt EV | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2017 | Chevrolet | Bolt EV | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
