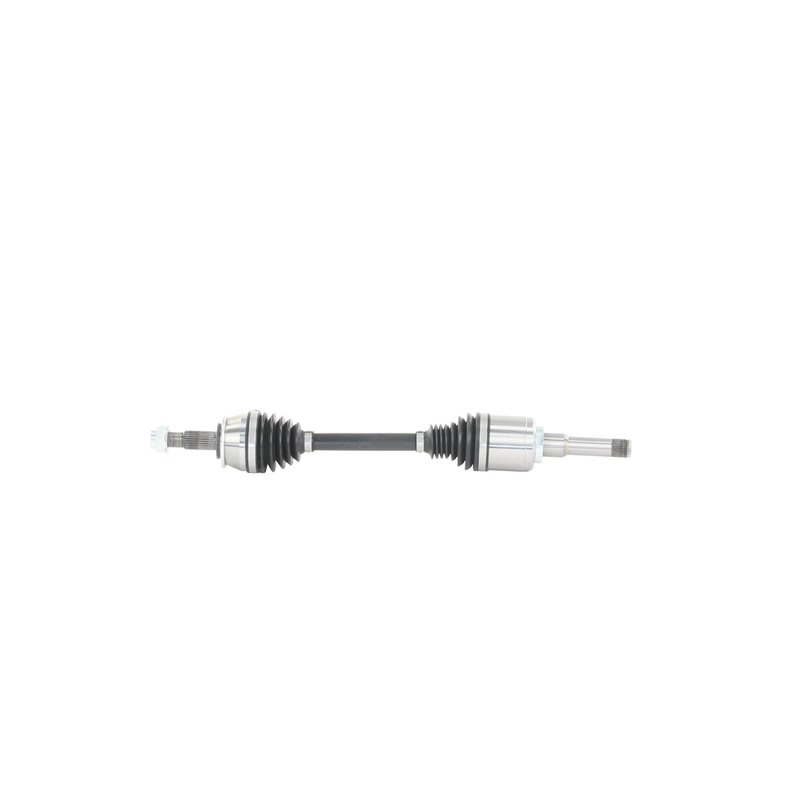

TrakMotive GM-86003 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-86003 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.55 |
| Overall Compressed Length (mm) | 649 |
| Overall Extended Length (in) | 27.44 |
| Overall Extended Length (mm) | 697 |
| Product line | CV Axle Shaft |
| Fits | Buick · 7 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic boots and a conventional outboard joint.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive GM-86003 and 94531933 for the same application. See all 2.
TrakMotive GM-86003 CV Axle Shaft
The TrakMotive GM-86003 CV axle shaft is a premium replacement for the front left side of select Buick Encore models. It is built for 2013-2019 Buick Encore applications and includes the axle nut for a more complete service replacement.
Key Features
- Direct replacement CV axle shaft for the front left position
- Compatible with 2013-2019 Buick Encore, front left
- Premium grade construction for driveline service
- 34 inboard splines and 25 outboard splines
- Thermoplastic boots on the inboard and outboard joints
- Conventional outboard joint and male inboard joint design
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
TrakMotive CV Axle Shaft GM-86003 is engineered for the front left driveline position on the Buick Encore from 2013 through 2019. This axle uses a spline-style shaft connection, a 34-spline inboard end, and a 25-spline outboard end to match the listed application. The axle is supplied as a premium-grade replacement and is backed by TrakMotive’s limited lifetime warranty. TrakMotive also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. This part cross-references OE number 94531933 for the same application.
Common Repair Applications
- Front left axle noise or vibration on a Buick Encore
- Clicking or popping during turns from worn CV joints
- Axle shaft wear from torn boots or grease loss
- Driveline shudder caused by a damaged front axle assembly
- Replacement for a failed OE-style CV axle on 2013-2019 Buick Encore models
Installation Notes
Verify front left fitment before installation on your Buick Encore. Confirm axle nut thread size, spline count, and overall length against the original part before assembly. The axle nut is included, and the axle is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive GM-86003 is manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems and includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Buick | Encore | AWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Buick | Encore | FWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Buick | Encore | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Buick | Encore | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Buick | Encore | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Buick | Encore | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Buick | Encore | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
